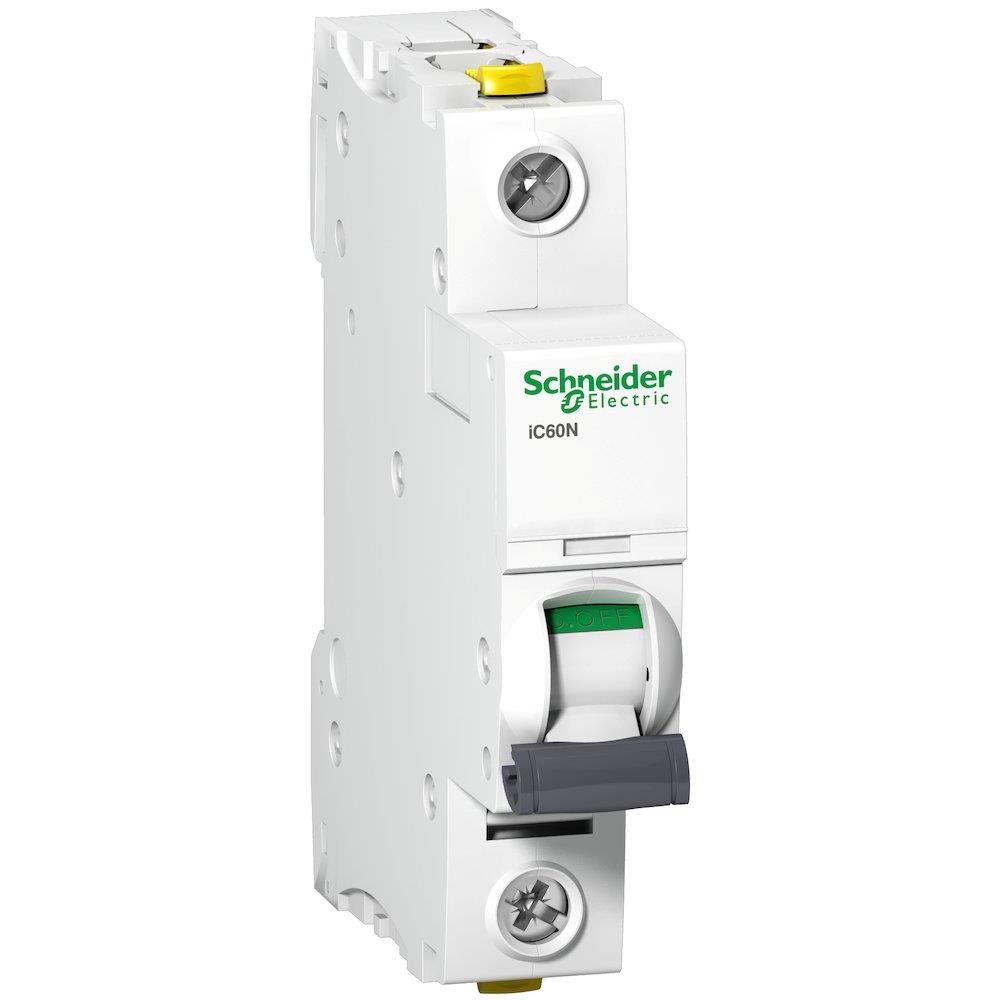

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 50A, 1P, C

Schneider Acti9 iC60N Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC60, current rating 50 A, number of poles 1P, tripping characteristic C. Supplied under manufacturer part number A9F04150, EAN 3606480440410, HS code 8536.20, country of origin Bulgaria.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Acti9 iC60

Current rating

50 A

Number of poles

1P

Tripping characteristic

C

Width

18 mm

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.8350 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Bulgaria

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9F04150

GTIN (EAN)

3606480440410

Range

Acti9

Product name

Acti9 iC60

Product or component type

Miniature circuit-breaker

Device short name

IC60N

Device application

Distribution

Poles description

1P

Number of protected poles

1

[In] rated current

50 A

Network type

DC; AC

Trip unit technology

Thermal-magnetic

Curve code

C

Utilisation category

Category A conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60898-1; Yes conforming to EN/IEC 60947-2

Standards

EN/IEC 60947-2; EN/IEC 60898-1

Network frequency

50/60 Hz

[Ue] rated operational voltage

12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC

Magnetic tripping limit

8 x In +/- 20 %

Breaking capacity

36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2; 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2; 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1

[Ics] rated service breaking capacity

27 kA 75 % x Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA 75 % x Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 7.5 kA 75 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA 100 % x Icu at 12...60 V DC conforming to EN/IEC 60947-2; 10 kA 100 % x Icu at 60...72 V DC conforming to EN/IEC 60947-2

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

Trip indicator

mounting mode

Clip-on; Removable comb busbar installed

Mounting support

35 mm DIN rail

Connection pitch

18 mm between devices

9 mm pitches

2

Height

91 mm

Depth

78.5 mm

Product weight

0.125 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Double terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper; Double terminal (top or bottom) , for 3.0 cable(s) , 16 mm², rigid, copper, with accessory; Double terminal (top or bottom) , for 1.0 cable(s) , 50 mm², rigid, aluminium, with accessory; Double terminal (top or bottom) , for 1.0 cable(s) , 1…25 mm², flexible, copper; Double terminal (top or bottom) , for 1.0 cable(s) , 1…25 mm², flexible with ferrule, copper; Double terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal and accessory; Double terminal (top or bottom) , for 3 cable(s) , 10 mm², flexible, copper, with accessory

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.20

• EAN 3606480440410
• MPN A9F04150
