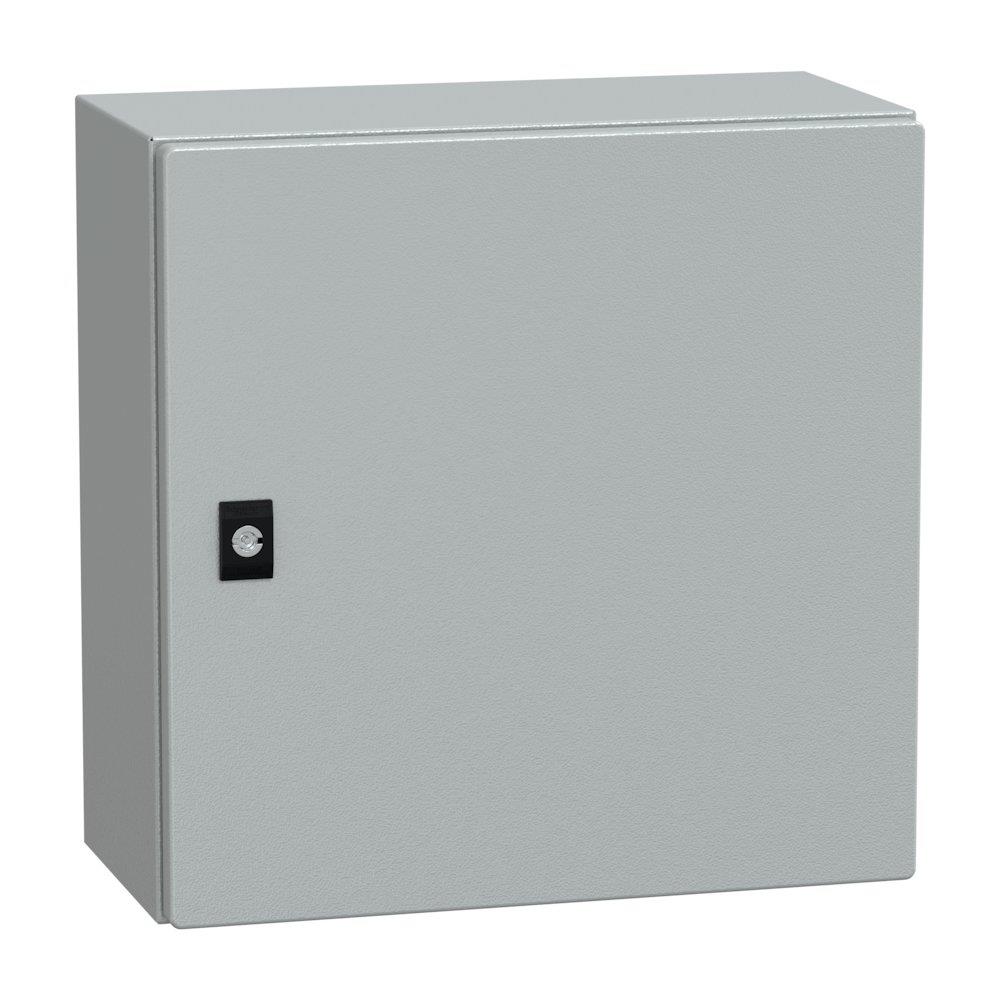

Schneider Spacial CRN Wall cabinet - 400 x 400mm, 200mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Spacial CRN Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 400 x 400 mm, depth 200 mm. Supplied under manufacturer part number NSYCRN44200P, EAN 3606480212390, HS code 9403.20, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 400 x 400 mm
- Depth
- 200 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 27.9523 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYCRN44200P
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 400 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 200 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 cable gland plate; 1 door with lock; 1 mounting plate
- Door type
- Plain
- Mounting plate description
- Plain
- body type
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; cUL; DNV-GL
- Product weight
- 8.6 kg
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Warranty (in months)
- 18
- EAN
- 3606480212390
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480212390
- MPN NSYCRN44200P
More from Schneider Electric
Schneider Electric
Schneider RESI9 CX Group Panel pre-assembled - 3, 2, 30 3606486404003
R9HPDK32063
Schneider Electric
Schneider LP1K Contactor - TeSys K, 48 DCV
LP1K0901ED
Schneider Electric
Schneider ZB4 Key Handle - Harmony XB4, 3PCS 3389110122299
ZB4BG712
Schneider Electric
Schneider LC1D Contactor - TeSys D, 25A, 3P, 24 DCV
LC1D253BD
Schneider Electric
Schneider GV2AP Rotary Handle - TeSys D
GV2AP02
Schneider Electric
Schneider LC1D Contactor - TeSys D, 18A, 2P, 24 DCV
LC1D188BL
Schneider Electric
Schneider ACTI9 Vigi NG125 Residual current device PFI - ACTI9 Vigi NG125, 125A, 3P
3303430190554
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 1500 x 750mm, 420mm
NSYPLAZ1574G
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCRN44200P?
- NSYCRN44200P can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCRN44200P.
- What is the HS code for NSYCRN44200P?
- The customs tariff (HS) code for NSYCRN44200P is 9403.20.
- Who manufactures NSYCRN44200P?
- NSYCRN44200P is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCRN44200P?
- Yes — the NSYCRN44200P datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCRN44200P?
- The minimum order quantity is 1.
- Is NSYCRN44200P available?
- Yes — NSYCRN44200P is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
