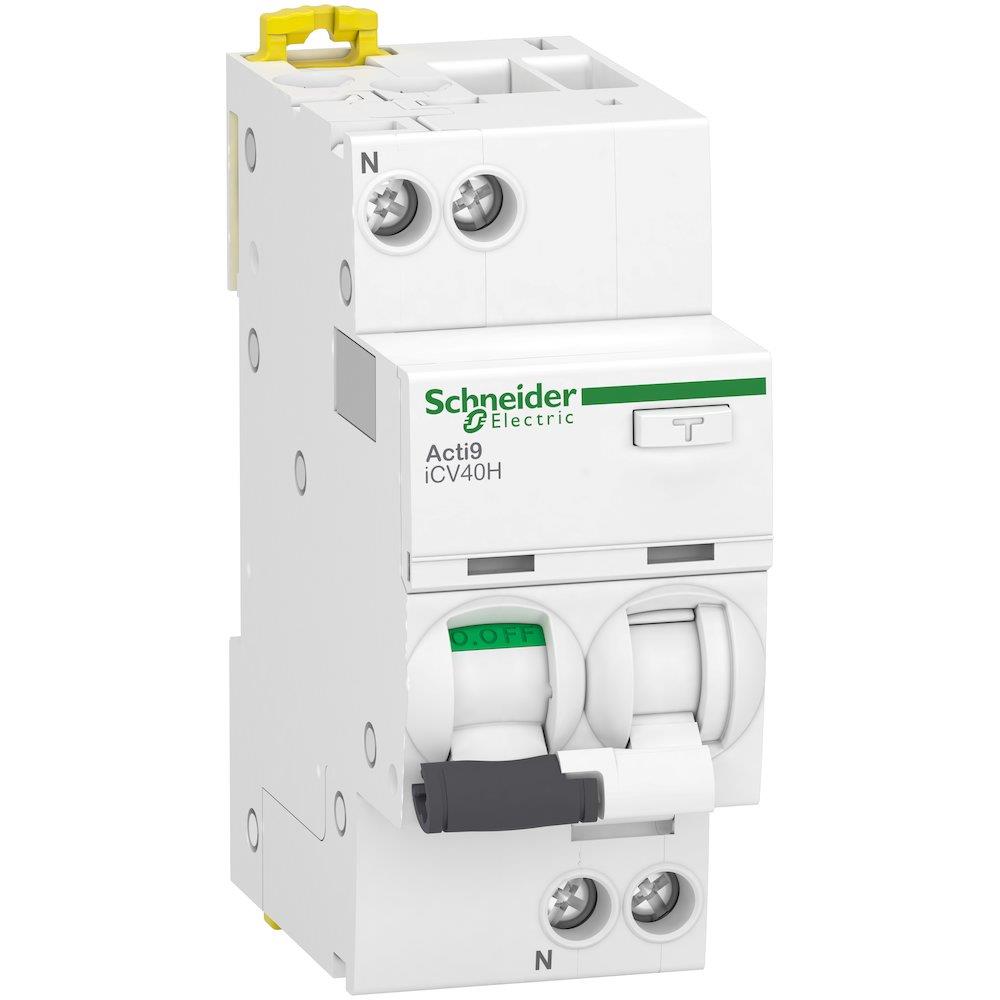

Schneider ACTI9 ICV40H RCBO Combination switch HPFI - ACTI9 ICV40 RCBO, 6A, 1P+N, B, A, 30MA

Schneider Acti9 iCV40H RCBO Combination switch HPFI. Residual current devices (RCD, PFI, Combo) (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iCV40 RCBO, current rating 6 A, number of poles 1P+N, tripping characteristic B. Supplied under manufacturer part number A9DG4606, EAN 3606489444518, HS code 8536.20, country of origin Spain.

Product type

Residual current devices (RCD, PFI, Combo)

Product group

Components for panels and boxes

Series

Acti9 iCV40 RCBO

Current rating

6 A

Number of poles

1P+N

Tripping characteristic

B

Class

A

Rated residual current

30 mA

REACH SVHC substance above 0.1%

Lead, Octrizole, Lead-monoxide

Carbon footprint (EPD)

1.6000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Spain

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9DG4606

Range

Acti9

Product name

Acti9 iCV40

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Device short name

iCV40H

Device application

Distribution

Poles description

1P + N

Number of protected poles

1

Neutral position

Left

[In] rated current

6 A

Network type

AC

Network frequency

50/60 Hz

Trip unit technology

Thermal-magnetic

Curve code

B

Earth-leakage sensitivity

30 mA

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Quality labels

EAC; OVE; VDE

Device location in system

Outgoer

[Ue] rated operational voltage

230 V AC 50/60 Hz

Magnetic tripping limit

3...5 x In

Residual current tripping technology

Voltage independent

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Breaking capacity

10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

[Ics] rated service breaking capacity

7500 A 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

Rated breaking and making capacity

Idm 6000 A at 230 V AC 50/60 Hz conforming to EN 61009-2-1; Idm 500 A at 230 V AC 50/60 Hz conforming to IEC 61009-2-1

Limitation class

3 conforming to EN/IEC 61009-2-1

[Ui] rated insulation voltage

400 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

4 kV

Contact position indicator

Yes

Control type

Toggle

Local signalling

Fault indication; ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: tooth

Connection pitch

9 mm between phase and neutral

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

73 mm

Product weight

210 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Locking options description

Padlocking device; Sealable

Connections - terminals

Tunnel type terminals top or bottom 1…16 mm² rigid; Tunnel type terminals top or bottom 1…10 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Integrated

Standards

EN/IEC 61009-2-1

Product certifications

CE

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

EAN

3606489444518

HS Code

8536.20
