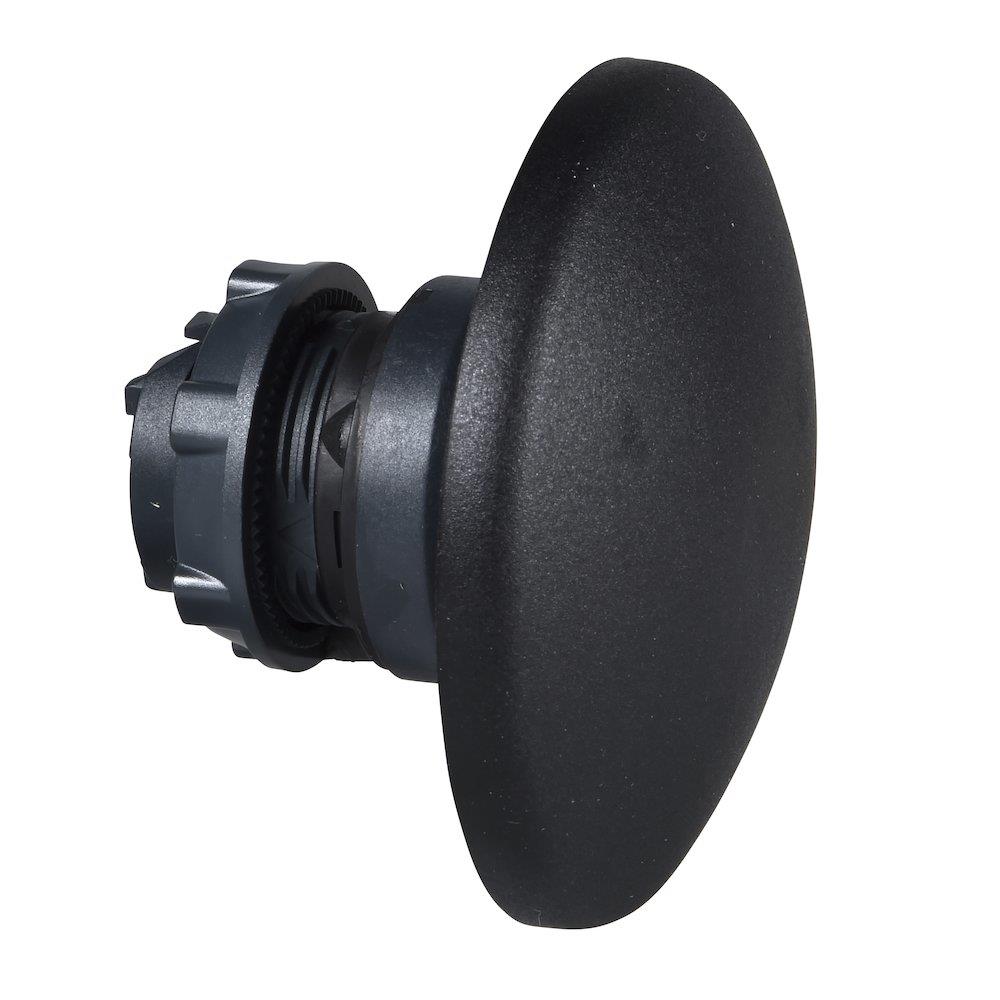

Schneider ZB5 Paddle Actuator Head - Harmony XB5, 60mm, black, Spring-return

Schneider ZB5 Paddle Actuator Head. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB5, diameter 60 mm, color Black, operation Spring-return. Supplied under manufacturer part number ZB5AR216, EAN 3389110066227, HS code 8538.90, country of origin France.

Product type

Pedal pressure and emergency stop button

Product group

Push buttons and signal units

Series

Harmony XB5

Diameter

60 mm

Color

Black

Operation

Spring-return

Carbon footprint (EPD)

0.2959 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB5AR216

Range of product

Harmony XB5

Product or component type

Head for non-illuminated push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Hemispherical

Type of operator

spring return

Operator profile

Black mushroom Ø 60 mm, unmarked

Device presentation

Basic element

CAD overall width

60 mm

CAD overall height

60 mm

CAD overall depth

45 mm

Product weight

0.048 kg

Mechanical durability

5000000 cycles

Station name

XALD 1 cut-out

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting; C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting

Compatibility code

ZB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

40

Warranty (in months)

18

EAN

3389110066227

HS Code

8538.90

• EAN 3389110066227
• MPN ZB5AR216
