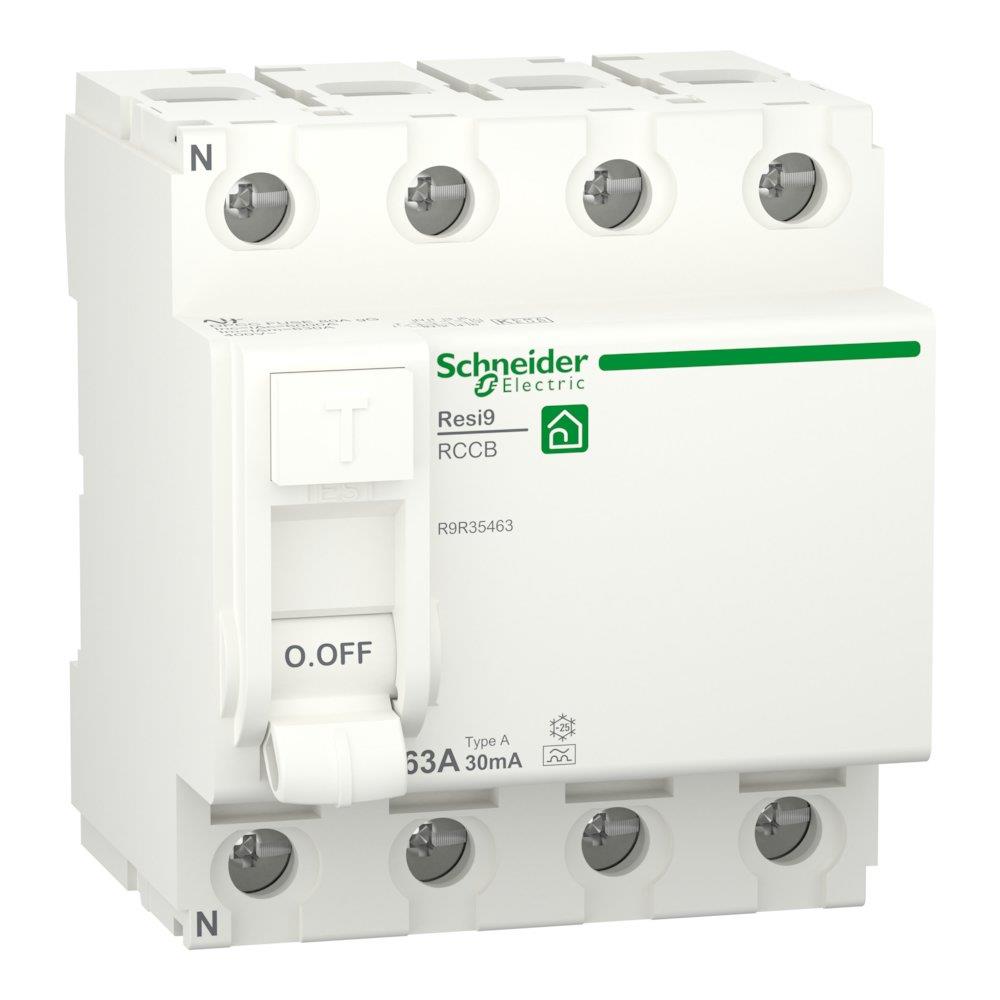

Schneider RESI9 XP RCD HPFI Residual current circuit breaker HPFI - RESI9 XP, 63A, 4P

Schneider Resi9 XP RCD HPFI Residual current circuit breaker HPFI. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Resi9 XP, current rating 63 A, number of poles 4P. Supplied under manufacturer part number R9R35463, EAN 3606481905154, HS code 8536.20, country of origin Spain.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Resi9 XP

Current rating

63 A

Number of poles

4P

Breaking capacity

30 kA

Width

72 mm

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide

Carbon footprint (EPD)

4.0000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Spain

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

R9R35463

Range

Resi9

Product name

Resi9 RCCB

Product or component type

Residual current circuit breaker (RCCB)

Poles description

4P

[In] rated current

63 A

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Rated breaking and making capacity

Im 630 A conforming to EN/IEC 61008

Rated conditional short-circuit current

Inc 6 kA

Quality labels

KEMA

Network frequency

50/60 Hz

[Ue] rated operational voltage

400 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

440 V

[Uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

8

Height

81 mm

Depth

73 mm

Product weight

353 g

Embedding depth

44 mm

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Tunnel type terminals (top or bottom) - 1...35 mm² - rigid; Tunnel type terminals (top or bottom) - 1...25 mm² - flexible; Tunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule

Wire stripping length

15 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Standards

EN/IEC 61008-1; EN/IEC 61008-2-1

IP degree of protection

IP20

Pollution degree

2

Overvoltage category

III

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…40 °C

Ambient air temperature for storage

-40…80 °C

Warranty (in months)

18

EAN

3606481905154

HS Code

8536.20

• EAN 3606481905154
• MPN R9R35463
