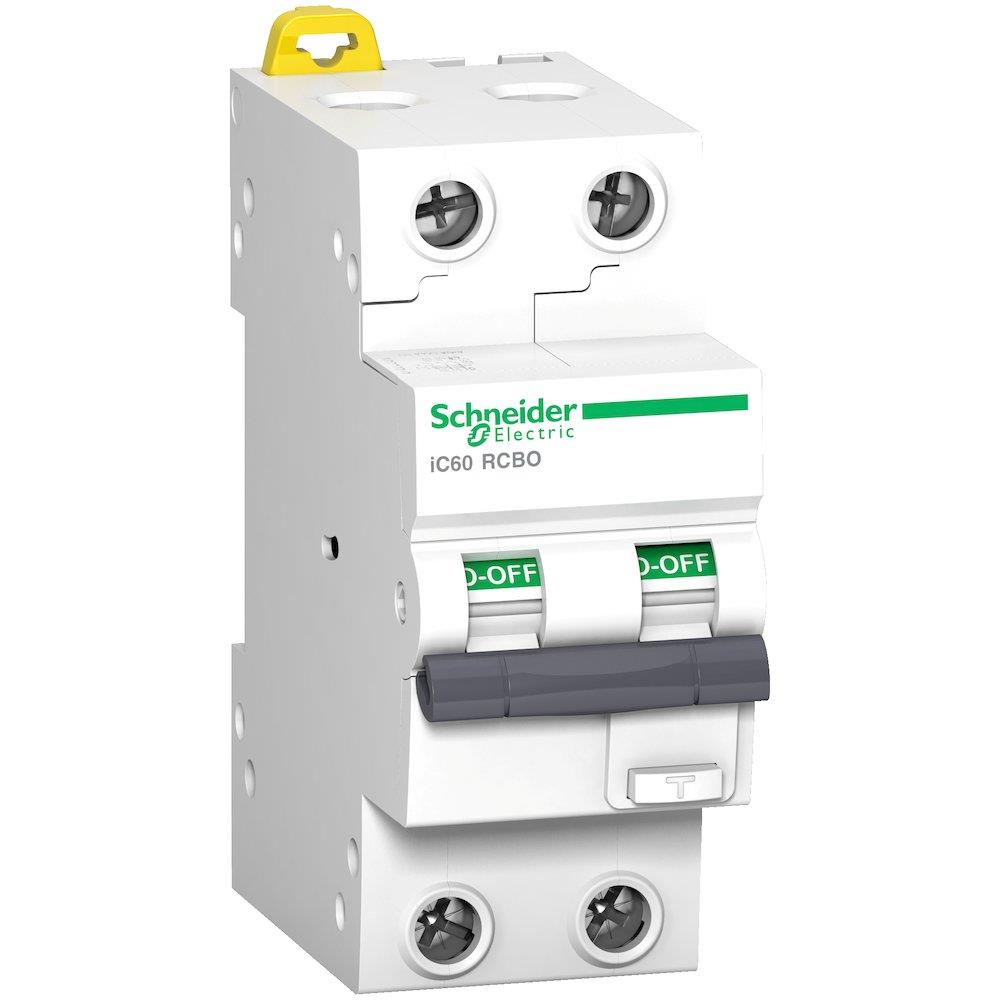

Schneider ACTI9 IC60 RCBO Combination switch HPFI - ACTI9 IC60 RCBO, 30A, 2P, C, Asi, 30MA

Schneider Acti9 iC60 RCBO Combination switch HPFI. Residual current devices (RCD, PFI, Combo) (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC60 RCBO, current rating 30 A, number of poles 2P, tripping characteristic C. Supplied under manufacturer part number A9D27225, EAN 3606481157454, HS code 8536.20, country of origin Portugal.

Product type

Residual current devices (RCD, PFI, Combo)

Product group

Components for panels and boxes

Series

Acti9 iC60 RCBO

Current rating

30 A

Number of poles

2P

Tripping characteristic

C

Class

Asi

Rated residual current

30 mA

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide, Octrizole

Carbon footprint (EPD)

1.4809 kg CO2e per pcs

Country of origin

Portugal

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9D27225

Range

Acti9

Product name

Acti9 iC60 RCBO

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Device short name

iC60 RCBO

Device application

Distribution

Poles description

2P

Number of protected poles

2

[In] rated current

25 A

Network type

AC

Network frequency

50 Hz

Trip unit technology

Thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Suitability for isolation

No conforming to IEC 60947-1

Quality labels

VDE; NF; IMQ; KEMA-KEUR

Device location in system

Outgoer

[Ue] rated operational voltage

220...240 V AC 50 Hz

Magnetic tripping limit

5...10 x In

Residual current tripping technology

Voltage independent

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A-SI (Super Immunised)

Breaking capacity

10000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1; 15 kA Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

7500 A 75 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1; 7.5 kA 50 % x Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2

Rated breaking and making capacity

Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1

Limitation class

3 conforming to EN/IEC 61009-2-1

[Ui] rated insulation voltage

500 V AC 50 Hz

[Uimp] rated impulse withstand voltage

4 kV

Surge current

3000 A

Contact position indicator

No

Control type

Toggle

Local signalling

ON, OFF, fault trip

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES; Bottom: biconnect

Connection pitch

9 mm between poles

9 mm pitches

4

Height

86 mm

Width

36 mm

Depth

78 mm

Product weight

273 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Tunnel type terminal top or bottom 1…35 mm² rigid; Tunnel type terminal top or bottom 1…25 mm² flexible; Tunnel type terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length

12 mm for top or bottom connection

Tightening torque

2 N.m

Earth-leakage protection

Integrated

Standards

EN/IEC 60947-2; EN/IEC 61009-2-1

IP degree of protection

IP40 (distribution enclosure) conforming to IEC 60529; IP20 conforming to IEC 60529

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Warranty (in months)

18

EAN

3606481157454

HS Code

8536.20
