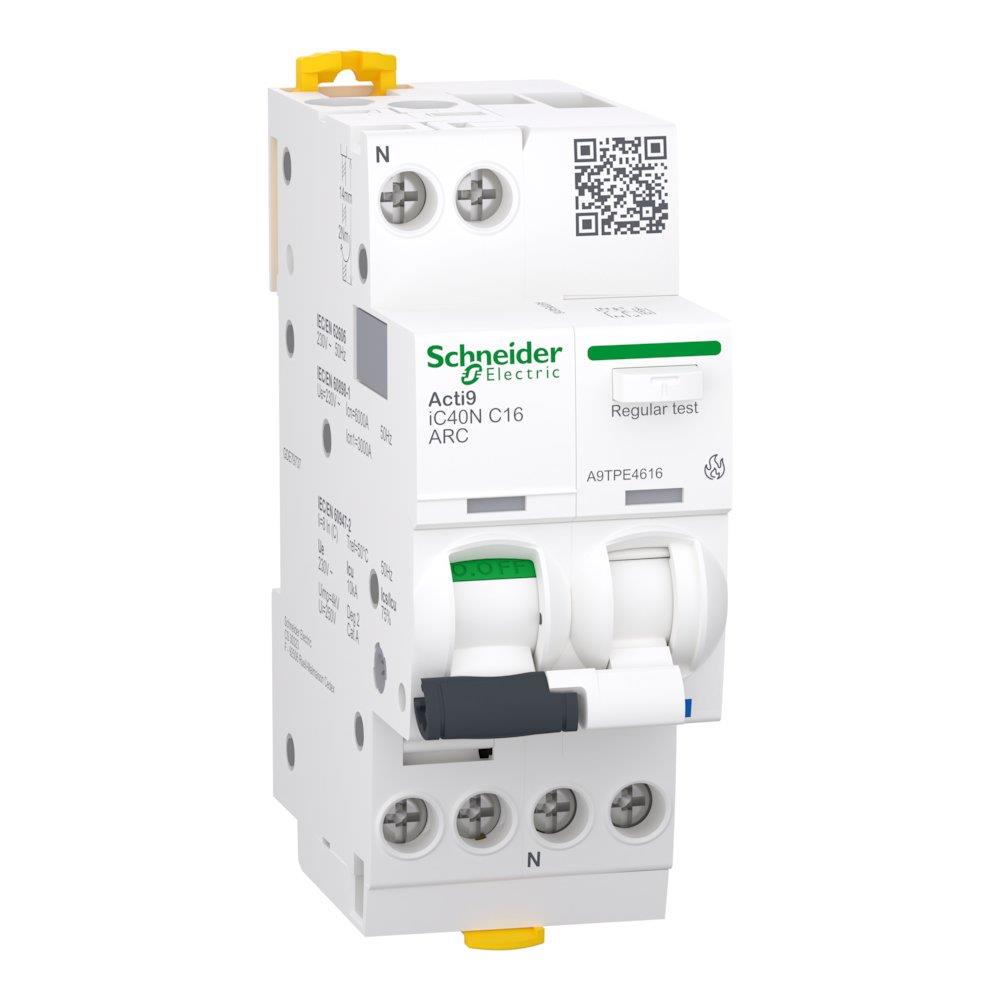

Schneider ACTI9 IC40 MCB AFDD Spark detector - ACTI9 IC40, 16A, 1P + N, C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 iC40 MCB AFDD Spark detector. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC40, current rating 16 A, number of poles 1P + N, tripping characteristic C. Supplied under manufacturer part number A9TPE4616, EAN 3606481906342, HS code 8536.20, country of origin Spain.
Technical Specifications
- Product type
- Circuit breakers
- Product group
- Components for panels and boxes
- Series
- Acti9 iC40
- Current rating
- 16 A
- Number of poles
- 1P + N
- Tripping characteristic
- C
- Breaking capacity
- 6 kA
- Width
- 36 mm
- REACH SVHC substance above 0.1%
- Lead, Diboron-trioxide, Lead-monoxide
- Carbon footprint (EPD)
- 3.2500 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 85362010
- HS code
- 8536.20
- Manufacturer part number
- A9TPE4616
- Range
- Acti9
- Product name
- Acti9 iC40 ARC
- Product or component type
- Arc fault detection circuit breaker
- Product specific application
- Arc fault detection
- Standards
- EN/IEC 60898-1; EN/IEC 60947-2; EN/IEC 62606
- Device short name
- iC40 ARC
- Poles description
- 1P + N
- [In] rated current
- 16 A
- Curve code
- C
- Network type
- AC
- Neutral position
- Left
- Suitability for isolation
- Yes
- Trip unit technology
- Thermal-magnetic
- Number of protected poles
- 1
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Device location in system
- Outgoer
- Magnetic tripping limit
- 5...10 x In
- [Ics] rated service breaking capacity
- 6000 A conforming to EN/IEC 60898-1; 7.5 kA conforming to EN/IEC 60947-2
- Limitation class
- 3
- Threshold tripping voltage
- 275 V for +/- 5 V
- [Uimp] rated impulse withstand voltage
- 4 kV
- [Ui] rated insulation voltage
- 250 V AC
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON, OFF, fault trip; LED arc fault diagnostic
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles
- Locking options description
- Padlocking device
- cable entry
- Top and bottom
- Connections - terminals
- Tunnel type terminal 1…10 mm² flexible; Tunnel type terminal 1…16 mm² rigid
- Wire stripping length
- 14 mm
- Tightening torque
- 2 N.m
- 9 mm pitches
- 4
- Height
- 91 mm
- Depth
- 73 mm
- Product weight
- 210 g
- IP degree of protection
- IP20 conforming to IEC 60529
- Pollution degree
- 2
- Tropicalisation
- Severity B conforming to IEC 60068-2-30 for 28 d
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…40 °C
- Ambient air temperature for storage
- -40…80 °C
- Quality labels
- AENOR; OVE
- Warranty (in months)
- 18
- EAN
- 3606481906342
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606481906342
- MPN A9TPE4616
More from Schneider Electric
Schneider Electric

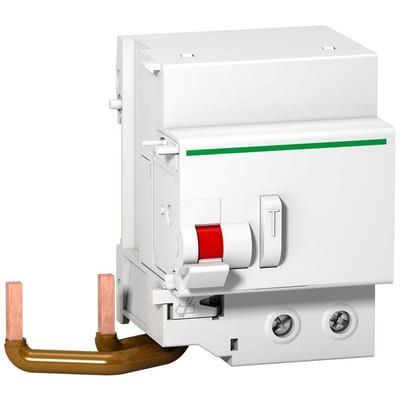

Schneider ACTI9 C120 Vigi Residual current circuit breaker PFI - ACTI9 C120, 125A, 2P, Asi, 300MA
A9N18556
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 750 x 1000mm, 320mm 3606480775000
NSYPLA7103TG
Schneider Electric

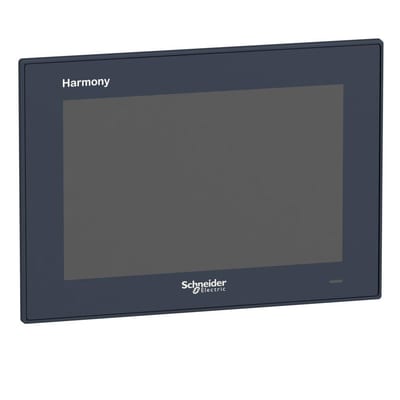

Schneider iPC S-Panel - Windows 10 3606480853357
HMIPSOH552D1801
Schneider Electric

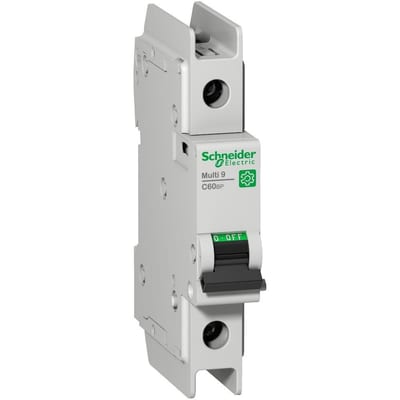

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60BP, 3A, 1P, D
M9F43103
Schneider Electric

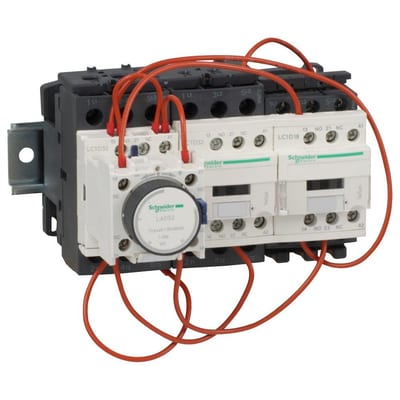

Schneider LC3D Y/D Starter - 24V, 25kW
