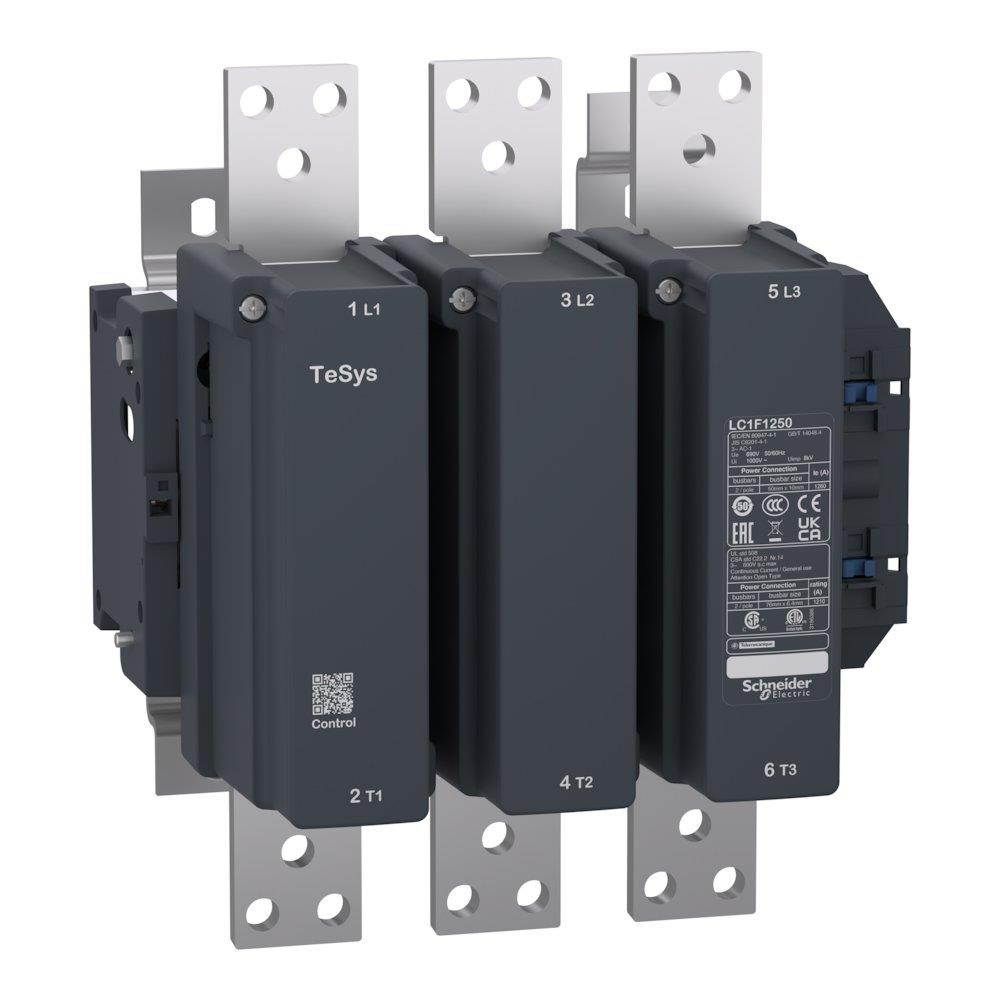

Schneider LC1F Contactor - TeSys F, 1250A, 3P

Schneider LC1F Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys F, current 1250 A, number of poles 3P. Supplied under manufacturer part number LC1F1250, EAN 3606485242538, HS code 8536.49, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys F

Current

1250 A

Number of poles

3P

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

160.5357 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85364900

HS code

8536.49

Manufacturer part number

LC1F1250

Range

TeSys

Product name

TeSys F

Product or component type

Contactor

Device short name

LC1F

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

3P

power pole contact composition

3 NO

[Ue] rated operational voltage

<= 690 V AC 50/60 Hz

[Ie] rated operational current

1260 A (at <40 °C) at <= 440 V AC-1

[Uc] control circuit voltage

110...600 V AC 40...400 Hz with LX1/LX9 coil; 28...250 V DC with LX4 coil

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

1260 A (at 40 °C)

Irms rated making capacity

1890 A conforming to IEC 60947-4-1

Rated breaking capacity

1890 A conforming to IEC 60947-4-1

[Icw] rated short-time withstand current

3000 A 40 °C - 3 min; 5200 A 40 °C - 30 s; 4000 A 40 °C - 1 min; 2000 A 40 °C - 10 min; 8000 A 40 °C - 10 s

Associated fuse rating

1400 A gG at <= 440 V for power circuit

Average impedance

0.12 mOhm - Ith 1260 A 50 Hz

[Ui] rated insulation voltage

1000 V conforming to IEC 60947-4-1; 1500 V conforming to VDE 0110 group C

Power dissipation per pole

120 W AC-1

Control circuit voltage limits

Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil; Drop-out: 0.25...0.5 Uc AC 40...400 Hz with LX1/LX9 coil; Operational: 0.85...1.1 Uc DC with LX4 coil; Drop-out: 0.2...0.35 Uc DC with LX4 coil

Heat dissipation

20 W

Operating time

40...80 ms closing for with LX1/LX9 coil; 100...200 ms opening for with LX1/LX9 coil; 60...70 ms closing for with LX4 coil; 40...50 ms opening for with LX4 coil

Mounting support

Plate

Standards

IEC 60947-1; EN 60947-1; JIS C8201-4-1; EN 60947-4-1; IEC 60947-4-1

Product certifications

CB; UL; CSA; CQC; CE; UKCA; CCC

Connections - terminals

Power circuit: bar 2 cable(s) ; Power circuit: bolted connection; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²

Tightening torque

Power circuit: 58 N.m; Control circuit: 1.2 N.m

Mechanical durability

1 Mcycles

Inrush power in VA

1500…1730 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil; 1420…1920 VA (at 20 °C)with LX4 coil

Hold-in power consumption in VA

20…25 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil; 6.5…12.5 VA (at 20 °C)with LX4 coil

Maximum operating rate

1200 cyc/h 55 °C

Protective treatment

TH

Ambient air temperature for operation

-5…40 °C

Ambient air temperature for storage

-60…80 °C

Permissible ambient air temperature around the device

-40…60 °C

Operating altitude

3000 m without derating

Mechanical robustness

Vibrations contactor open: 2 Gn, 5...300 Hz; Vibrations contactor closed: 4 Gn, 5...300 Hz; Shocks contactor open: 6 Gn for 1/2 its wave (11 ms); Shocks contactor closed: 15 Gn for 1/2 its wave (11 ms)

Height

338 mm

Width

309 mm

Depth

255 mm

Product weight

19 kg

Warranty (in months)

18

EAN

3606485242538

HS Code

8536.49
