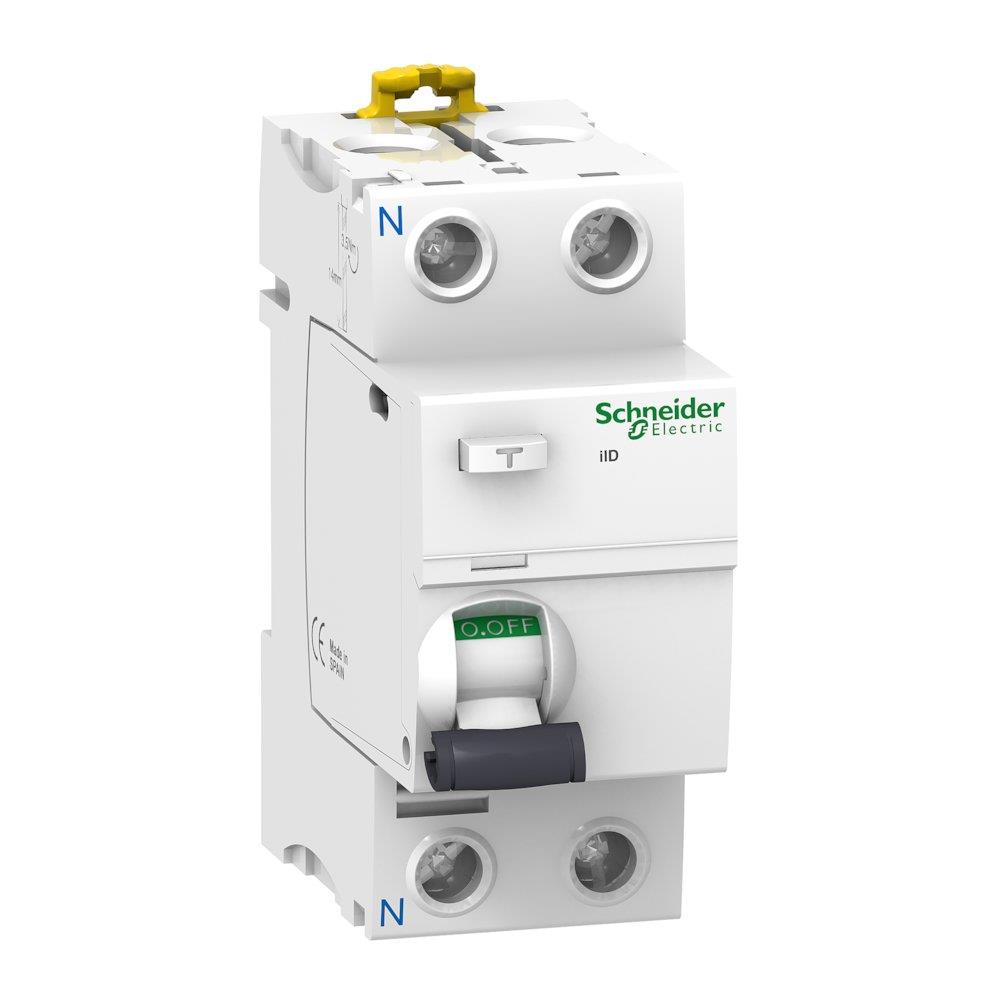

Schneider ACTI9 iID-RCCB Residual current circuit breaker HPFI - ACTI9 iID-RCCB, 63A, 2P, A, 30MA

Schneider Acti9 iID-RCCB Residual current circuit breaker HPFI. Residual current devices (RCD, PFI, Combo) (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iID-RCCB, current rating 63 A, number of poles 2P, class A. Supplied under manufacturer part number A9R08263, EAN 3606480639746, HS code 8536.50, country of origin Spain.

Product type

Residual current devices (RCD, PFI, Combo)

Product group

Components for panels and boxes

Series

Acti9 iID-RCCB

Current rating

63 A

Number of poles

2P

Class

A

Rated residual current

30 mA

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

3.1900 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Spain

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

A9R08263

Range

Acti9

Product name

Acti9 iID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

iID

Poles description

2P

Neutral position

Left

[In] rated current

63 A

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Device location in system

Outgoer

Network frequency

50/60 Hz

[Ue] rated operational voltage

110 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

Rated breaking and making capacity

Idm 1500 A; Im 1500 A

Rated conditional short-circuit current

10 kA

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Contact position indicator

Yes

Control type

Toggle

mounting mode

Clip-on

Mounting support

35 mm DIN rail

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

69 mm

Embedding depth

44 mm

Product weight

210 g

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Locking options description

Padlocking device

Connections - terminals

Single terminal top or bottom 1…35 mm² rigid; Single terminal top or bottom 1…25 mm² flexible; Single terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Standards

EN/IEC 61008-1; EN/IEC 61008-2-1

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

EAN

3606480639746

HS Code

8536.50

• EAN 3606480639746
• MPN A9R08263
