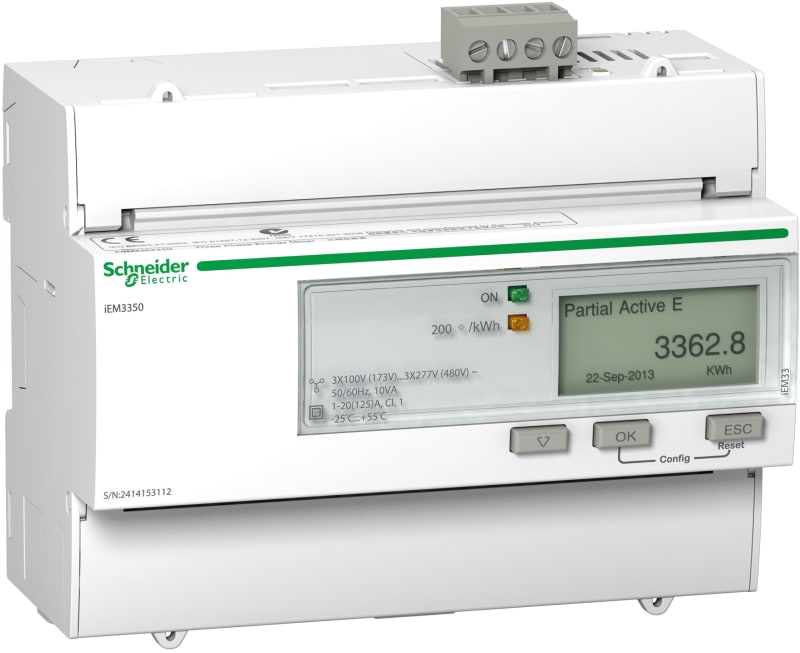

Schneider Electric IEM3350 energy meter - 125 A - Modbus A9MEM3350

Schneider Electric A9MEM3350 2P/3P/3P+N KWH METER DIRECT 63A MODBUS MID.

Manufacturer part number (MPN)

A9MEM3350

EAN / GTIN

3606480696411

Sales unit

pcs

Package quantity

18 pcs

Rated current

125 A

Range

Acti9

range of product

Acti9 iEM3000

Product or component type

Energy meter

Device short name

iEM3350

Market segment

Buildings small building cost management: billing: main incomer; Buildings small building cost management: billing: sub feeder; Buildings small building cost management: billing: panelboard; Buildings medium building cost management: billing: main incomer; Buildings medium building cost management: billing: sub feeder; Buildings medium building cost management: billing: panelboard; Buildings large building cost management: billing: main incomer; Buildings large building cost management: billing: sub feeder; Buildings large building cost management: billing: panelboard; Buildings multi-site cost management: billing: main incomer; Buildings multi-site cost management: billing: sub feeder; Buildings multi-site cost management: billing: panelboard; Data center cost management: billing; Healthcare cost management: billing; Industry cost management: billing; Buildings small building cost management: cost allocation: main incomer; Buildings small building cost management: cost allocation: sub feeder; Buildings small building cost management: cost allocation: panelboard; Buildings medium building cost management: cost allocation: main incomer; Buildings medium building cost management: cost allocation: sub feeder; Buildings medium building cost management: cost allocation: panelboard; Buildings large building cost management: cost allocation: main incomer; Buildings large building cost management: cost allocation: sub feeder; Buildings large building cost management: cost allocation: panelboard; Buildings multi-site cost management: cost allocation: main incomer; Buildings multi-site cost management: cost allocation: sub feeder; Buildings multi-site cost management: cost allocation: panelboard; Data center cost management: cost allocation; Healthcare cost management: cost allocation; Industry cost management: cost allocation

Poles description

3P + N; 3P; 1P + N

Type of measurement

Active energy; Current; Voltage; Active power

Device application

Partial meter; Sub billing

Accuracy class

Class 1 active energy conforming to IEC 62053-21; Class 1 active energy conforming to IEC 61557-12

input type

Direct connection

[In] rated current

125 A

Rated voltage

100…277 V; 173…480 V

Network frequency

50 Hz; 60 Hz

Technology type

Electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

0…125 A

Maximum value measured

99999999.9 kWh

Communication port protocol

Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V

Communication port support

Screw terminal block: RS485

Local signalling

Green indicator light: power ON; Yellow flashing LED: accuracy checking; Yellow indicator light: communications are active on the Modbus port (Modbus)

Number of inputs

0

Number of outputs

0

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Screw terminals 50 mm² cable(s)

Overvoltage category

III

Standards

BS EN 61557-12:2021; IEC 61557-12:2021; EN 61557-12:2021; BS EN 61326-1; IEC 61326-1; EN 61326-1; BS EN 62052-11:2020; IEC 62052-11:2020; EN 62052-11:2020; BS EN 62053-21; IEC 62053-21; EN 62053-21; BS EN 62052-31:2015; IEC 62052-31:2015; EN 62052-31:2015; BS EN 61010-1:2010; EN 61010-1:2010; IEC 61010-1:2010; UL 61010-1:2010; BS EN 61010-2-30; IEC 61010-2-30; EN 61010-2-30; UL 61010-2-30; ANSI C12.16

Product certifications

CE conforming to IEC 61010-1 (safety); CE conforming to EN 61557-12 (power monitor); CE conforming to EN/IEC 61326-1 (EMC); UKCA conforming to BS EN 61010-1 (safety); UKCA conforming to BS EN 61557-12 (power monitor); UKCA conforming to BS EN 61326-1 (EMC); CULus conforming to UL 61010-1 (safety); CULus conforming to EN 61010-1 (safety); EAC (sub-meter); KZ conforming to NMI M 6-1; KZ; NMI conforming to NMI M 6-1

Compatibility code

IEM3350

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 body: conforming to IEC 60529

Pollution degree

2

Relative humidity

5…95 % at 50 °C

Ambient air temperature for operation

-25…70 °C - IEC

Ambient air temperature for storage

-40…85 °C

Operating altitude

< 3000 m

Colour

White

9 mm pitches

14

Width

126 mm

Height

103.2 mm

Depth

69.3 mm

Number of Units in Package 1

1

Number of Units in Package 2

18

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Frequency

50–60 Hz

Max. current (Imax)

125 A

Width in number of modular spacings

7

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

Modbus

Energy type

Effective power

Tariff type

One-tariff

Tariff control

Internal

Escapement mechanism

No

Calibrated

No

Approval

Domestic

Pulse output

Optical

Pulse type

S0

Pulse rate

0–500 Imp/kWh (kvarh)

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

100–277 V

Nominal voltage (Un) L-L

173–480 V

Nominal current (In)

125 A

Country of origin

China

HS Code

9028.30

• EAN 3606480696411
• SAP 1000641917
• Code 8176844
