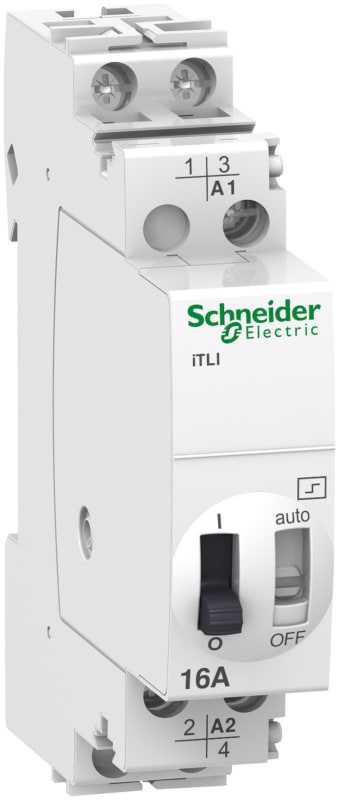

Schneider Electric impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 110 VDC - 230...240 VAC 50/60Hz A9C30815

Schneider Electric A9C30815 — impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 110 VDC - 230.240 VAC 50/60Hz.

Manufacturer part number (MPN)

A9C30815

EAN / GTIN

3606480091971

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product name

Acti9 iTL

Product or component type

Impulse relay

Device short name

iTLi

Device application

Changeover relay

Poles

2P

Pole contact composition

1 NO + 1 NC

[In] rated current

16 A

Network type

AC

[Uc] control circuit voltage

230...240 V AC 50/60 Hz; 110 V DC

Network frequency

50/60 Hz

[Ue] rated operational voltage

250 V AC 50/60 Hz

Control type

Coil disconnection; Remote and manual control

Control signal type

Impulse

Switching frequency

5 switching operations/minute; 100 switching operations/day

Impulse duration

50 ms...1 s

Remote control type

Illuminated push-button 3 mA

Local signalling

ON/OFF indication

mounting mode

Fixed

Mounting support

DIN rail

9 mm pitches

2

Height

84 mm

Width

18 mm

Depth

60 mm

Electrical durability

AC-21: 200000 cycles; AC-22: 100000 cycles

Connections - terminals

Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule

Wire stripping length

11 mm

Tightening torque

1 N.m

Range compatibility

Acti9 iATEt; Acti9 iATL4; Acti9 iATLc; Acti9 iATLc+s; Acti9 iATLm; Acti9 iATLs; Acti9 iATLz; Acti9 iETL iTL 16; Acti9 iATLc+c; Acti9 iATL24

Standards

EN 669-1; EN 669-2-2

Product certifications

CCC; GOST

Quality labels

CEBEC; NF; IMQ; KEMA; VDE

Noise level

60 dB

IP degree of protection

IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.5 cm

Package 1 Width

1.8 cm

Package 1 Length

7.5 cm

Package 1 Weight

112 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.5 cm

Package 2 Width

9.5 cm

Package 2 Length

22.5 cm

Package 2 Weight

1.394 kg

Unit Type of Package 3

S03

Number of Units in Package 3

144

Package 3 Height

30 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

17.195 kg

Country of origin

BE

Warranty (in months)

18

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

43.5 mm

Width in number of modular spacings

1

Control voltage 1

230–240 V

Control voltage 2

110 V

Type of control voltage 1

AC

Type of control voltage 2

DC

Frequency control voltage 1

50–60 Hz

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Supply voltage

24–250 V

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

1600 W

Max. load fluorescent lamp

1300 VA

Rated switch current

16 A

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

HS Code

8536.49
