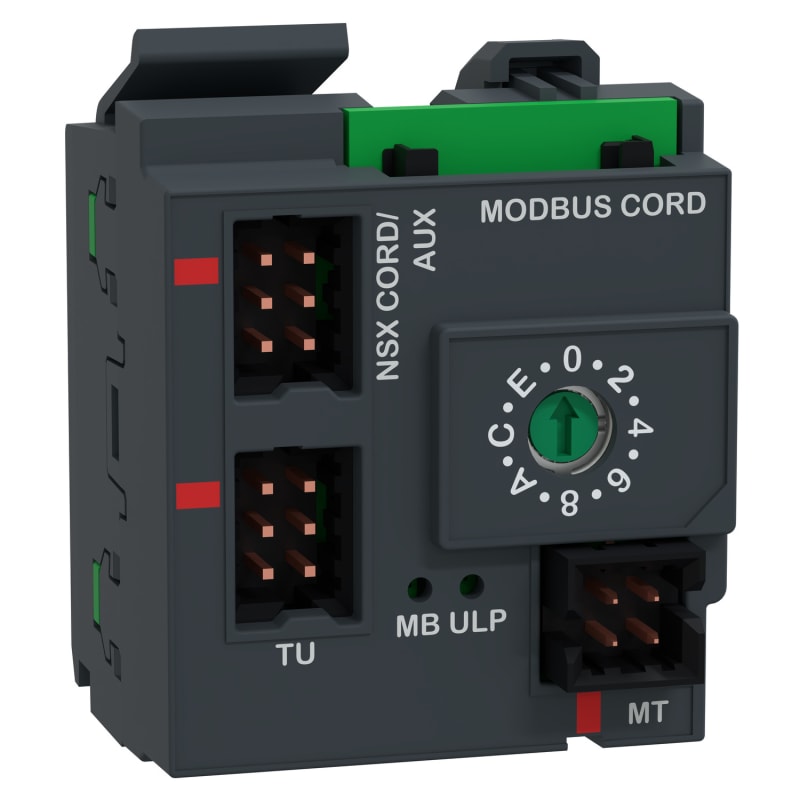

Schneider Electric Communication module, ComPacT NSX, BSCM Modbus SL/ULP, breaker status and control module LV434220
Part numberLV434220EAN / GTIN3606486963500HS code8517.62
Control & Automation
Fieldbus I/O
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV434220 — Communication module, ComPacT NSX, BSCM Modbus SL/ULP, breaker status and control module.
Technical Specifications
- Manufacturer part number (MPN)
- LV434220
- EAN / GTIN
- 3606486963500
- Sales unit
- pcs
- Package quantity
- 90 pcs
- Range of product
- ComPacT NSX100...250; ComPacT NSX400...630
- Device short name
- BSCM MBSL/ULP
- Product or component type
- Communication module
- Device application
- Communication
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX250; ComPacT NSX400; ComPacT NSX630
- Function of module
- Control circuit breaker; Get breaking status; Gateway for Modbus-SL connected devices
- Communication network type
- Modbus, Modbus Serial line slave9.6...38.4 kbauds
- mounting mode
- By clips
- Accuracy class
- Class 2 power supply
- [Us] rated supply voltage
- 24 V DC
- Input voltage
- 24 V DC +/- 10 %
- Current consumption
- 40 mA 24 V DC room temperature
- Power consumption in W
- 0.96 W
- Connections - terminals
- Plug-in connector
- Product certifications
- UL
- Standards
- CISPR 32; IEC 61000-4-3; IEC 61000-4-6; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-2
- Height
- 34 mm
- Width
- 28 mm
- Depth
- 30 mm
- Product weight
- 14 g
- Relative humidity
- 5…85 % at 55 °C without condensation
- Ambient air temperature for storage
- -40…85 °C
- Ambient air temperature for operation
- -25…70 °C
- Pollution degree
- 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 4.400 cm
- Package 1 Length
- 6.200 cm
- Package 1 Weight
- 32.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 90
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.392 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 720
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 35.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Number of HW-interfaces other
- 4
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Voltage type (supply voltage)
- DC
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard eGPRS
- No
- Radio standard GSM
- No
- Radio standard LTE
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- No
- Degree of protection (IP)
- IP20
- With potential separation
- No
- Fieldbus connection over separate bus coupler possible
- No
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606486963500
- SAP 1200786671
- Code 83949475
