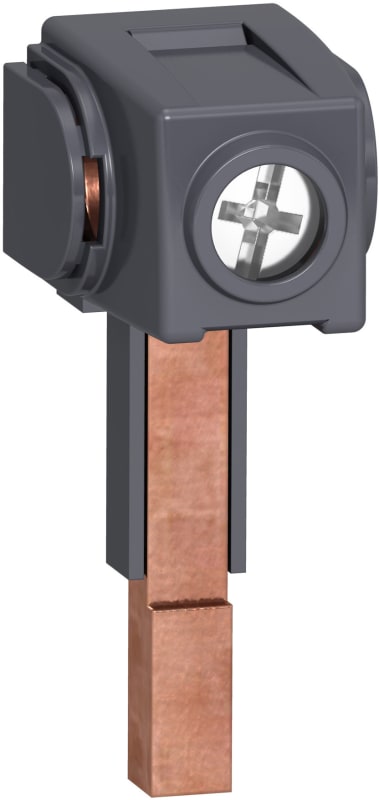

Terminal block, double terminal vert. 35 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XPCM04 Koblingskl,double,kl vert,push-in 35mm2. Pk A 4 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- A9XPCM04
- EAN / GTIN
- 3606480485275
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Conductor cross-section
- 35 mm²
- range of product
- Acti9
- Product name
- Linergy FH
- Product or component type
- Connector
- Accessory / separate part category
- Connection accessory
- Poles description
- 3P + N
- Quantity per set
- Set of 4
- Comb busbar and distribution block compatibility
- Monoconnect
- Standards
- EN/IEC 61439-1
- [In] rated current
- 100 A
- Colour
- White (RAL 9003)
- Connections - terminals
- Screw clamp terminals top connector35 mm²
- Tightening torque
- 4 N.m
- Range compatibility
- Acti9 iC60 comb busbar; Acti9 iK60 comb busbar; Acti9 iDPN comb busbar; Acti9 iDPN Vigi comb busbar; Acti9 iID comb busbar; Acti9 iID K comb busbar; Acti9 iSW comb busbar; Acti9 iSW-NA comb busbar; Acti9 STI comb busbar
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Number of Units in Package 3
- 800
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connector
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480485275
- SAP 1000326485
- Code 8843623
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F07616 ACTI9 IC60H Miniature Circuit Breaker 1P+N 16 A, Curve C
Schneider Electric
Schneider Electric Trip unit MicroLogic 5.2E, ComPacT NSX100/160/250, 3 poles, electronic basic protections, energy meter, 100A rating C1035E100
Schneider Electric

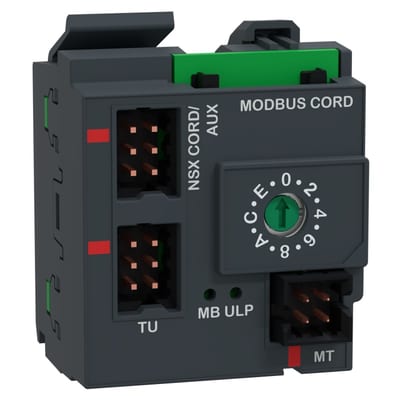

Schneider Electric Communication module, ComPacT NSX, BSCM Modbus SL/ULP, breaker status and control module LV434220
Schneider Electric

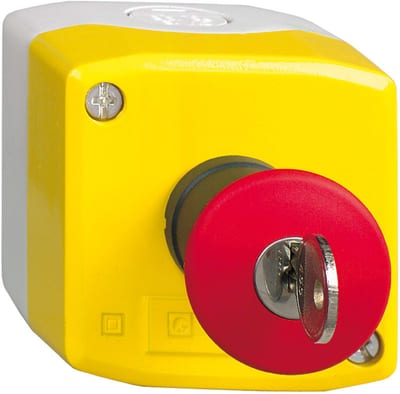

Schneider Electric XALK188F Control station, plastic, yellow lid, 1 red mushroom push button Ø40, key release, 2 NC
Schneider Electric

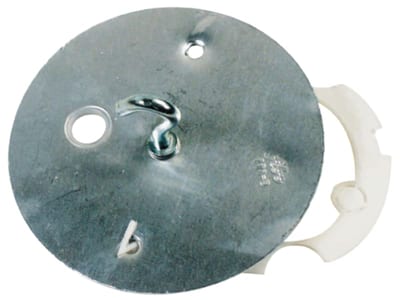

Ceiling Cover WITH HOOK T-K
3012153
Schneider Electric
Interpact INS250 3P (31106)
Schneider Electric

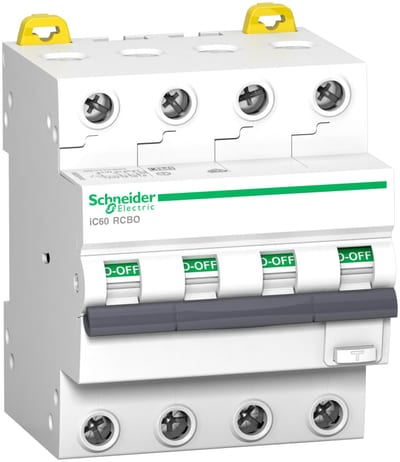

Schneider Electric ACTI9 IC60 RCBO - 4P - 32 A - B Curve - 6000A/6KA - 30 mA - A type A9D87432
Schneider Electric

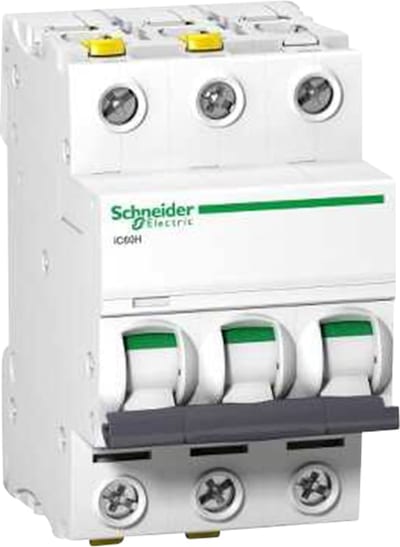

Schneider Electric A9F08316 ACTI9 IC60H Miniature Circuit Breaker 3P 16 A, Curve D
