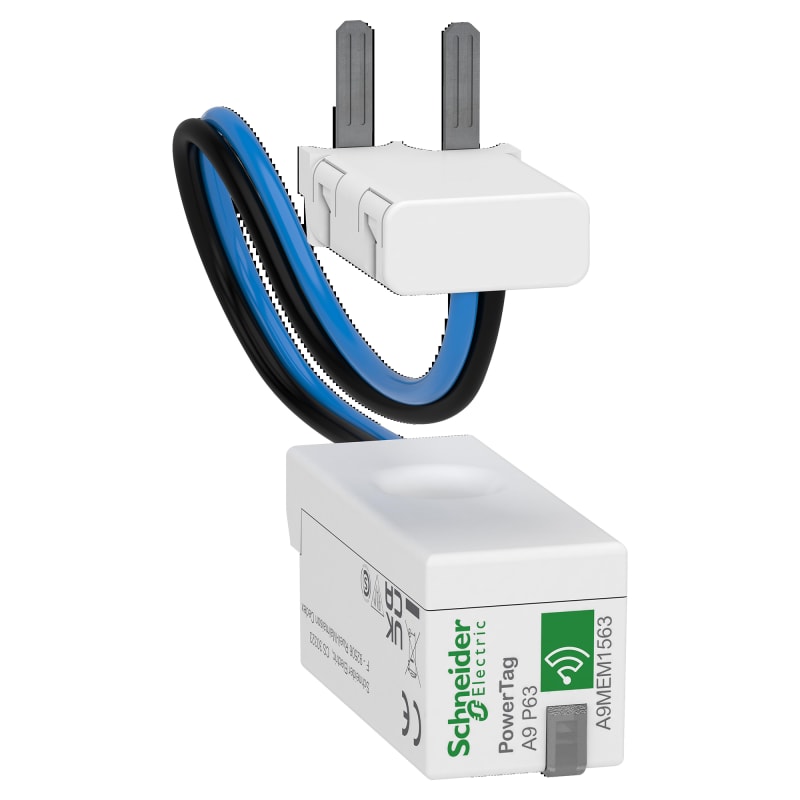

PowerTag Energy P63 1PN Bottom RCBO
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9MEM1563 PowerTag iCV40 1PN 63A below.
Technical Specifications
- Manufacturer part number (MPN)
- A9MEM1563
- EAN / GTIN
- 3606481380425
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- PowerLogic
- Product name
- PowerTag A9 P63
- Product or component type
- Energy sensor
- Poles
- 1P + N
- Maximum current [Imax]
- 63 A
- [Ib] Basic current
- 10 A
- Starting current
- 40 mA
- Saturation current
- 130 A
- Product specific application
- Load monitoring; Cost allocation; Overload alarm; Circuit monitoring; Energy management
- Concentrator compatibility
- EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD
- Application
- Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm
- Range compatibility
- Acti9 Acti9 iKQE RCBO; Acti9 Acti9 iC60 iC60H RCBO; Acti9 Acti9 iC60 iC60H2 RCBO
- Type of measurement
- Active power; Power factor; Active energy; Current; Voltage
- Accuracy class
- Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12
- Mounting location
- Bottom
- Mounting support
- On circuit breaker
- Connection pitch
- 9 mm Ph/N
- Product destination
- Switchboard
- Event management
- Voltage loss with measured current at voltage loss
- Transmission support medium
- Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
- Emission power
- 10 mW
- Form factor
- PhaseNeutral
- Mounting mode
- By screws (terminals)
- Electrical connection (voltage sensing & power supply)
- Connector tooth
- Cable cross section
- 1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²
- supply voltage
- 200...240 V AC, +/- 20 %
- Network frequency
- 50 Hz; 60 Hz
- Maximum power consumption
- 1 VA
- Standards
- IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1
- Product certifications
- IEC; DNV Marine
- Height
- Sensor element: 20 mm; Base unit: 8 mm
- Width
- Sensor element: 18 mm; Base unit: 18 mm
- Depth
- Sensor element: 44.5 mm; Base unit: 28 mm
- Product weight
- 18 g
- Colour
- White (RAL 9003)
- Compatibility code
- PowerTag A9 F63
- Quality labels
- CE
- Directives
- 2014/53/EU - radio equipment directive
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Overvoltage category
- III conforming to IEC 61010-1
- Measurement category
- Category III conforming to IEC 61010-2-030
- IP degree of protection
- IP20 conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Relative humidity
- 0…95 % at 45 °C conforming to IEC 60721-3-3
- Vibration resistance
- 3M4 conforming to IEC 60721-3-3
- Electromagnetic compatibility
- Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311
- environmental characteristics
- Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 48
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481380425
- SAP 1200395323
- Code 82415288
Product Documentation
