Riflet Pilot Light Head Green F
Pricing
Request a quote
We reply within 24 hours
Product Description

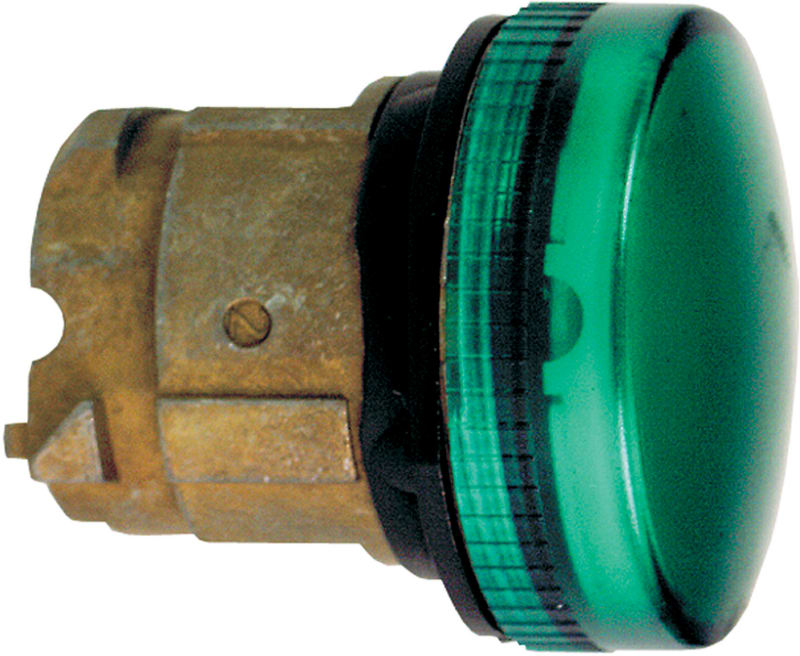

Schneider Electric ZB4BV033S Indicator lamp Green For LED Riflet.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BV033S
- EAN / GTIN
- 3389110290820
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for pilot light
- Product compatibility
- Universal LED
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Green
- Operator additional information
- With grooved lens
- Environmental characteristic
- High ambient lighting environment
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 30 mm
- Product weight
- 0.026 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Electrical composition code
- P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-5; JIS C8201-5-1; UL 508; IEC 60947-5-4; JIS C8201-1
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3389110290820
- SAP 1000037482
- Code 8730251
Product Documentation
