NG125L/C 16-2 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

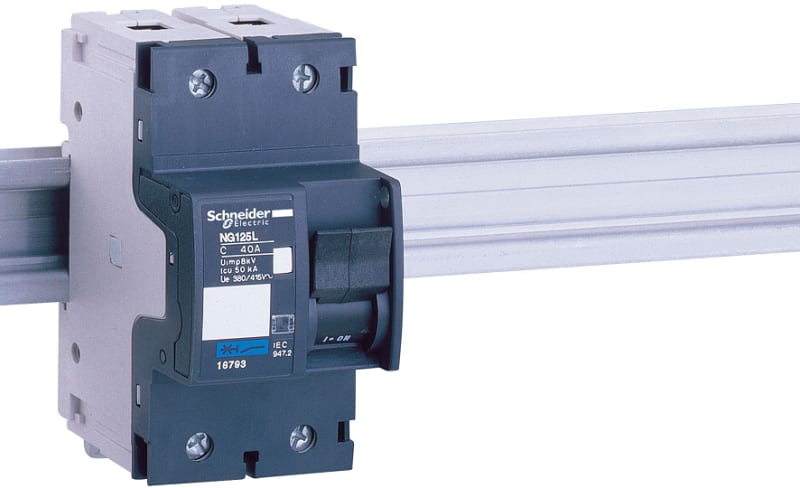

Schneider Electric 18789 NG125L/C 16-2 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18789
- EAN / GTIN
- 3303430187899
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power loss
- 2.4 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 16 A
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 3
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187899
- SAP 1000068906
- Code 8749817
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, flush, orange, 22mm, spring return, lt 250V, 1NO+1NC XB4BW3565
Schneider Electric
Spreader set for ATS - TA63/80 4P-LASTSIDE
TPSCON68
Schneider Electric
NG125L/B 50-4 Modular Power Switch
18774
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 12.5A, MA curve, 20KA (IEC/EN 60947-2) A9F90382
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 3 poles, MicroLogic 6.3E trip unit 400A C40R36E400
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, 120 V AC RXM3AB1F7
Schneider Electric
ANTI Insekt Filter FOR 137X117
NSYCAF92M
Schneider Electric

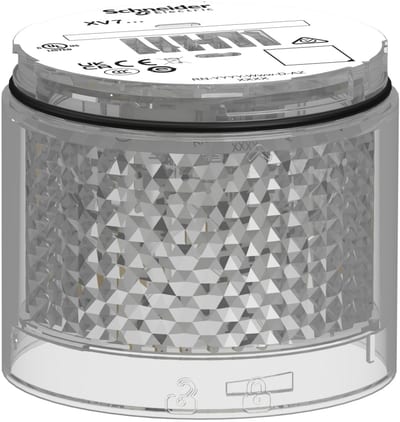

Light Unit with 2J flash LED in white
