Light Unit with 2J flash LED in white
Pricing
Request a quote
We reply within 24 hours
Product Description

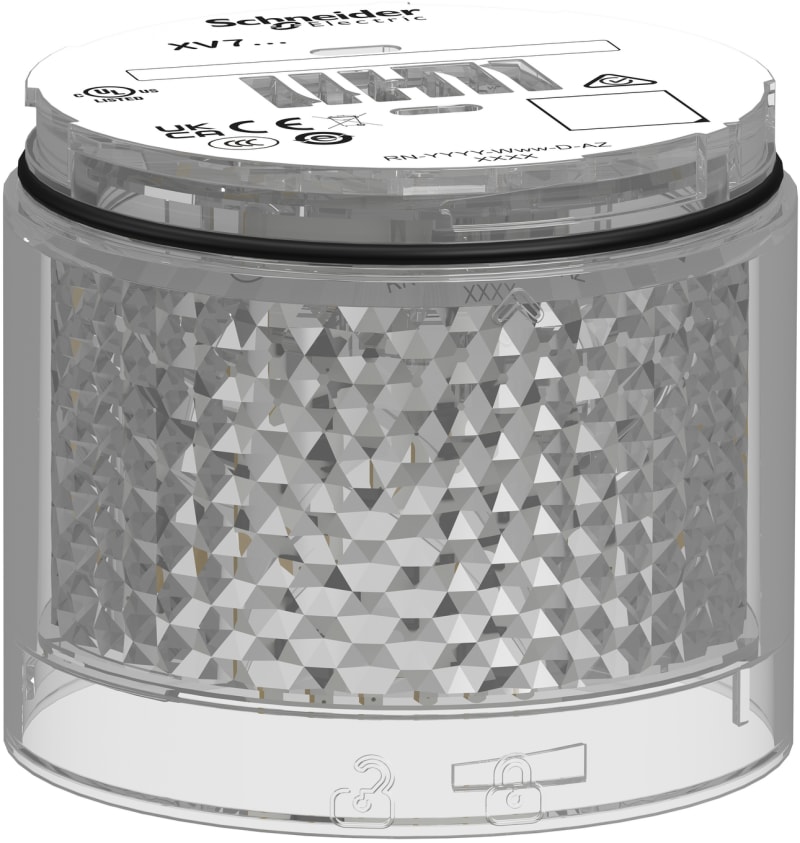

Schneider Electric XVB7C67 Light Unit for XVB7 lyskolonne in Ø70 mm in white with LED flash on 2J.
Technical Specifications
- Manufacturer part number (MPN)
- XVB7C67
- EAN / GTIN
- 3606487129455
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- Harmony XVB7
- Product or component type
- Light module
- Device composition
- Standard lens
- Device short name
- XVB7
- Mounting diameter
- 70 mm
- Signalling type
- Flashing
- Light color
- LED, white
- Material
- PC (polycarbonate)
- Product weight
- 0.108 kg
- Mounting position
- Upright/inverted
- Flashing frequency
- 2 Hz
- Service life in hours
- 50000 h
- [Ue] rated operational voltage
- 24 V AC/DC
- Rated operational voltage limits
- 21.6...26.4 V AC/DC
- Current consumption
- 180 mA at 24 V AC; 250 mA at 24 V DC
- Inrush current
- 1 A
- Electrical shock protection class
- Class II
- [Ui] rated insulation voltage
- 50 V
- [Uimp] rated impulse withstand voltage
- 0.5 kV
- Pollution degree
- 2
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…70 °C
- IP degree of protection
- IP66
- Environmental Type ratings
- UL type 4X/13
- Vibration resistance
- 6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation
- Shock resistance
- 30 gn (duration = 6 ms) for in operation
- Standards
- UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1
- Product certifications
- cULus; CCC; RCM; UKCA; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Warranty (in months)
- 18
- Outer diameter
- 70 mm
- Function
- Flash light
- Housing colour
- White
- Voltage type
- AC/DC
- Lamp type
- LED
- Degree of protection (IP)
- IP66
- Repetition frequency settable
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606487129455
- SAP 1200846272
- Code 84041288
Product Documentation
More from Schneider Electric
Schneider Electric
Horizontal plate f PLAX74
NSYBANPLA74
Schneider Electric
Key grip, flush 2-Pos 455 (ZB4FG6)
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 2 CO, with LED, 48 V DC RPM22ED
Schneider Electric

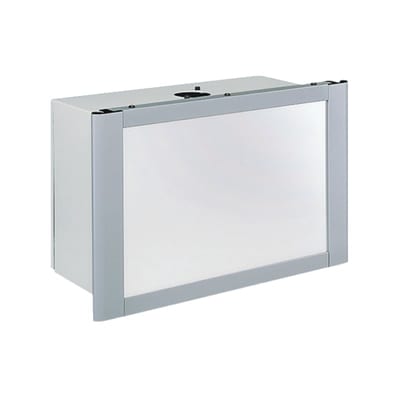

Schneider Electric HMI encl. PanelSet S3CM. H400XW400XD200IP54 IK10, RAL7035.REAR door. NSYS3CM404020
Schneider Electric

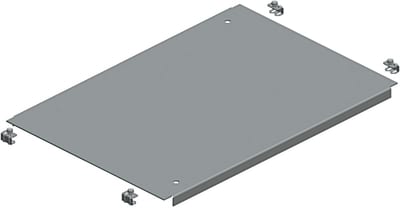

Gland Plate 8X4 (NSYEC84)
Schneider Electric

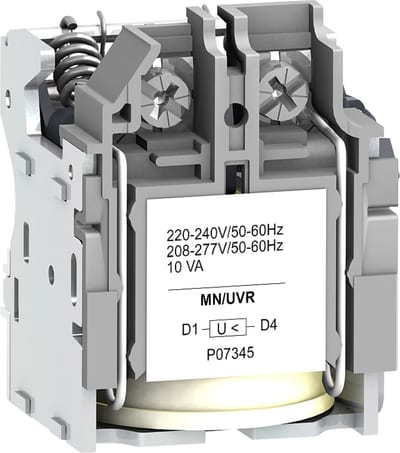

Schneider Electric MN undervoltage release, ComPacT NSX, rated voltage 48 VDC, screwless spring terminal connections LV429412
Schneider Electric

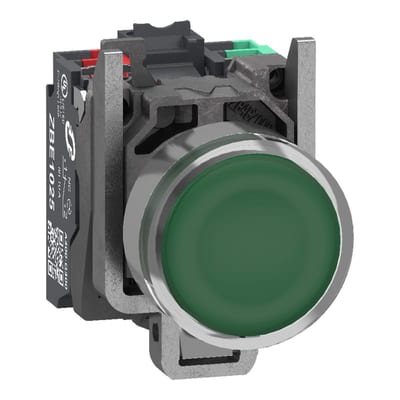

Schneider Electric Illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC, push in XB4BW33B55
Schneider Electric

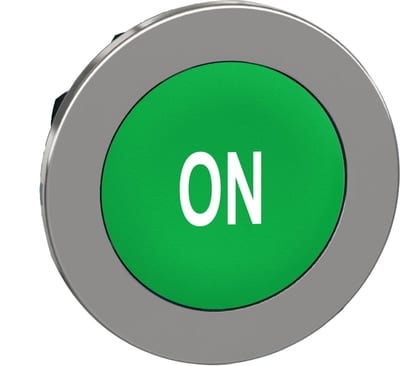

Push-button flush green with text (ZB4FA341)
