NG125L/B 50-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

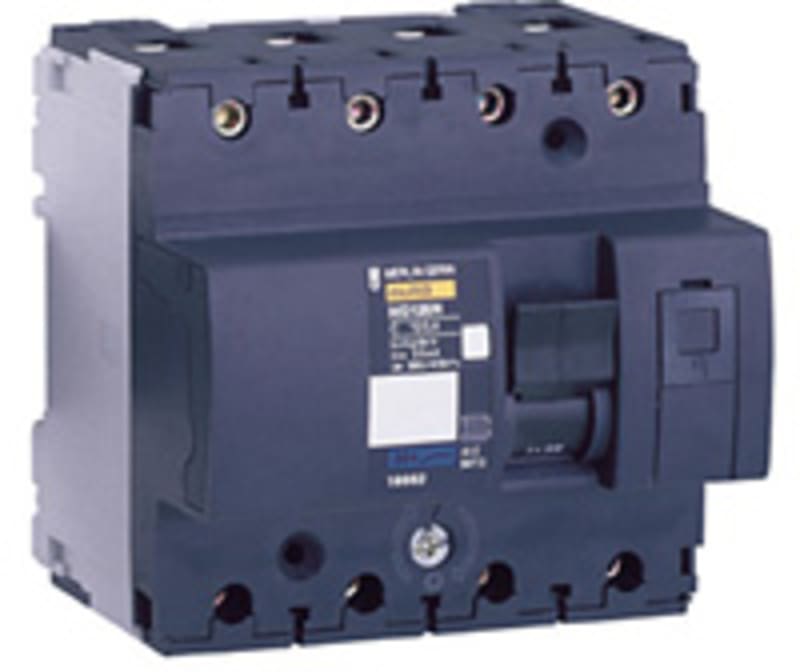

Schneider Electric 18774 NG125L/B 50-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18774
- EAN / GTIN
- 3303430187745
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power loss
- 4.2 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 50 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187745
- SAP 1000012954
- Code 8107178
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 12.5A, MA curve, 20KA (IEC/EN 60947-2) A9F90382
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 3 poles, MicroLogic 6.3E trip unit 400A C40R36E400
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, 120 V AC RXM3AB1F7
Schneider Electric
ANTI Insekt Filter FOR 137X117
NSYCAF92M
Schneider Electric
Light Unit with 2J flash LED in white
XVB7C67
Schneider Electric

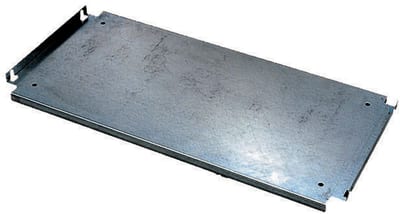

Horizontal plate f PLAX74
NSYBANPLA74
Schneider Electric
Key grip, flush 2-Pos 455 (ZB4FG6)
Schneider Electric

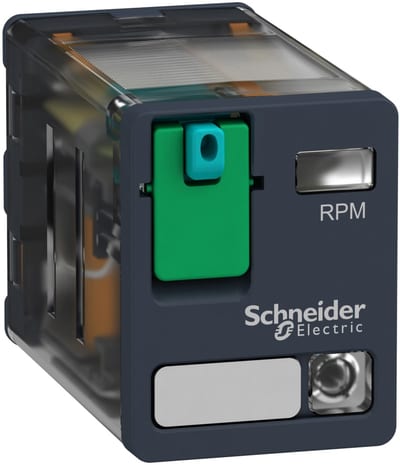

Schneider Electric Power plug-in relay, 15 A, 2 CO, with LED, 48 V DC RPM22ED
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18774?
- 18774 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18774.
- What is the HS code for 18774?
- The customs tariff (HS) code for 18774 is 8536.20.
- Who manufactures 18774?
- 18774 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18774?
- Yes — the 18774 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18774?
- The minimum order quantity is 1.
- Is 18774 available?
- Yes — 18774 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
