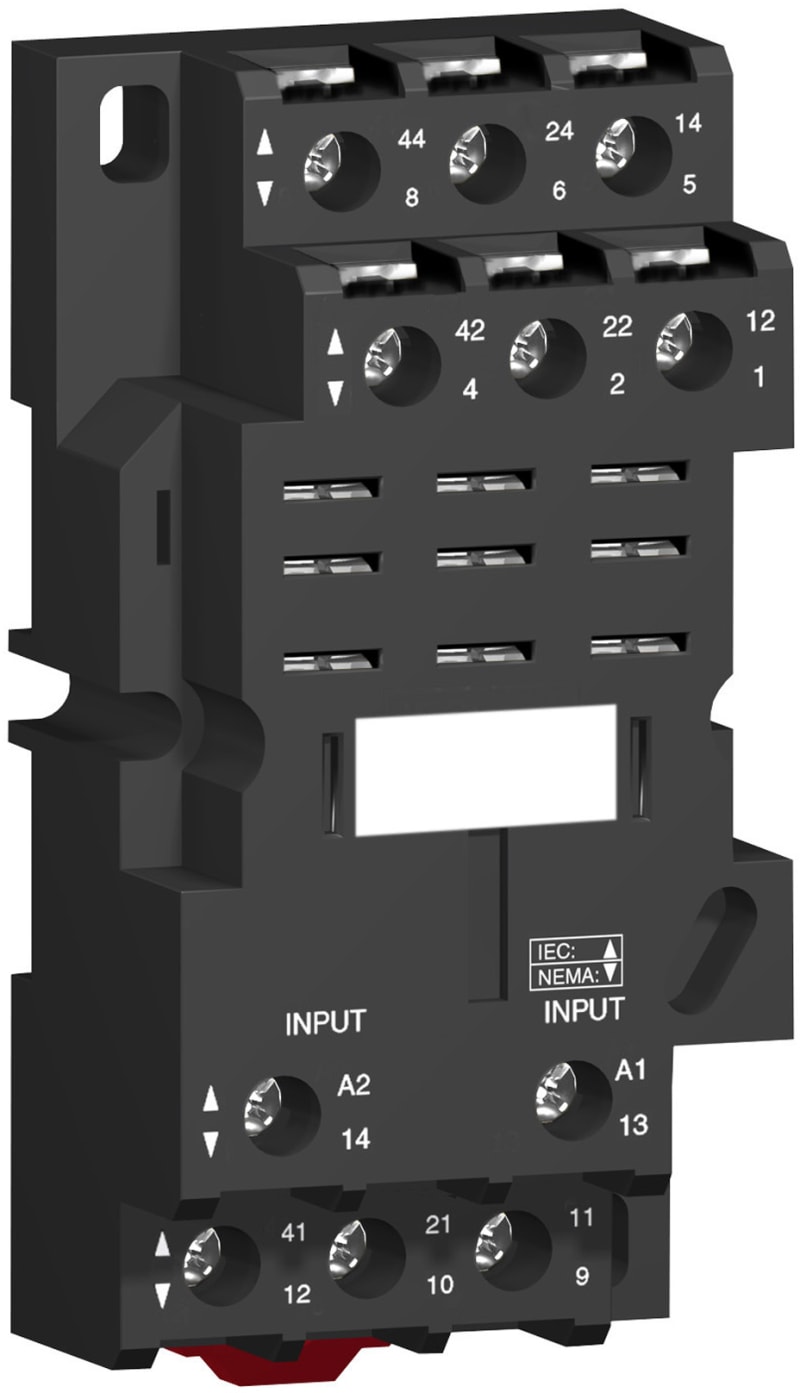

Schneider Electric Socket, mixed contact, 16 A, relay type RPM3, screw clamp terminals, 250 V AC RPZF3

Schneider Electric RPZF3 Plinth effektrelé 3CO.

Manufacturer part number (MPN)

RPZF3

EAN / GTIN

3389119402309

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RPZ

Product or component type

Socket

Product compatibility

Plug-in relay RPM with 3 C/O contact

Contacts type and composition

3 C/O

[Ith] conventional free air thermal current

16 A

[Ue] rated operational voltage

< 250 V

Shape of pin

Flat

Contact terminal arrangement

Mixed

Tightening torque

< 1 N.m for M3.5 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

40 mm

Product weight

0.072 kg

Connections - terminals

- screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG; - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG; - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG; - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

CSA; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

150

Country of origin

TW

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

84 mm

Depth

76 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

9

HS Code

8536.69
