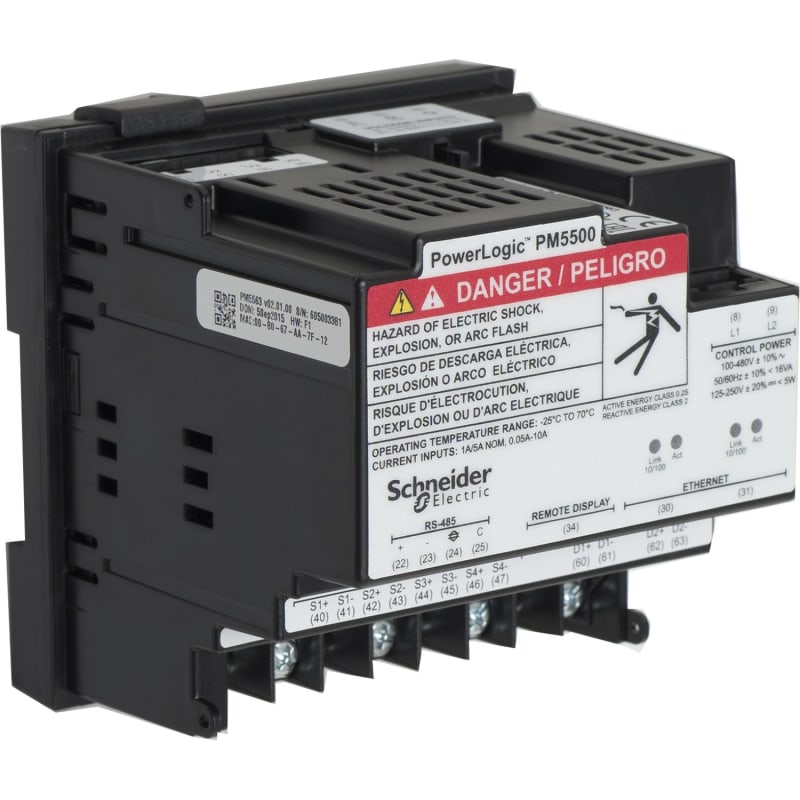

Schneider Electric PM5563 Meter, 2 ethernet, up to 63TH H, 1,1M 4DI/2DO 52 alarms, DIN mounted METSEPM5563

Schneider Electric METSEPM5563 Power analyser PM5563. 690V, without frontdisplay. Modbus+Ethernet.

Manufacturer part number (MPN)

METSEPM5563

EAN / GTIN

3606480614088

Sales unit

pcs

Package quantity

12 pcs

Range

PowerLogic

Product name

PowerLogic PM5000

Product or component type

Power meter

Device short name

PM5563

Power quality analysis

up to the 63rd harmonic

Metering type

Measured neutral current; Calculated ground current

Device application

Power monitoring; WAGES metering; Gateway; Multi-tariff

Type of measurement

Current; Voltage; Frequency; Power factor; Energy; Active and reactive power

[Us] rated supply voltage

100...300 V DC; 90...528 V AC 45...65 Hz

Network frequency

60 Hz; 50 Hz

[In] rated current

5 A; 1 A

type of network

1P + N; 3P; 3P + N

Maximum power consumption in VA

16 VA at 480 V

Ride-through time

35 ms 120 V AC typical; 129 ms 230 V AC typical; 50 ms 125 V DC typical

Display type

Without display

Sampling rate

128 samples/cycle

Measurement current

50…10000 mA

Analogue input type

Voltage (impedance 5 MOhm); Current (impedance <= 0.3 mOhm)

Measurement voltage

20…400 V AC 45...65 Hz between phase and neutral; 20…828 V AC 45...65 Hz between phases

Frequency measurement range

45…65 Hz

Number of inputs

4 digital

Measurement accuracy

Apparent power +/- 0.5 %; Frequency +/- 0.05 %; Active energy +/- 0.2 %; Reactive energy +/- 1 %; Active power +/- 0.2 %; Voltage +/- 0.1 %; Power factor +/- 0.005; Current +/- 0.15 %; Reactive power +/- 1 %

Accuracy class

Class 0.2S active energy conforming to IEC 62053-22

Number of outputs

2 digital

Information displayed

Tariff (8)

Communication port protocol

Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V; JBUS; Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V; Ethernet Modbus TCP/IP daisy chain; BACnet IP; DNP3 over ethernet

Communication port support

RS485; ETHERNET

Communication gateway

Ethernet/serial

Data recording

Maintenance logs; Event logs; Alarm logs; Time stamping; Data logs; Min/max of instantaneous values

Memory capacity

1.1 MB

Web services

Alarm notification by e-mail; Diagnostic via predefined web pages; Web server; Real time viewing of data

Ethernet service

SNMP-Traps; SNTP client

Connections - terminals

Voltage circuit: screw terminal block4; Control circuit: screw terminal block2; Current transformer: screw terminal block6; RS485 link: screw terminal block4; Digital input: screw terminal block8; Digital output: screw terminal block4; Ethernet network: RJ45 connector2

mounting mode

Clip-on

Mounting support

DIN rail

Standards

EN 50470-1; IEC 60529; IEC 62053-24; UL 61010-1; IEC 62053-22:2020; IEC 61557-12:2015; EN 50470-3; ANSI C12.20; IEC 62053-23:2020; IEC 62052-11:2020; IEC 62052-31:2015

Product certifications

CE conforming to IEC 61010-1; CULus conforming to UL 61010-1; BTL

Width

96 mm

Depth

72 mm

Height

96 mm

Product weight

450 g

Electromagnetic compatibility

Limits for harmonic current emissions class A conforming to IEC 61000-3-2; Conducted RF disturbances level 3 conforming to IEC 61000-4-6; Magnetic field at power frequency level 4 conforming to IEC 61000-4-8; Conducted and radiated emissions class B conforming to EN 55022; Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3; Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; Surge immunity test level 4 conforming to IEC 61000-4-5; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

IP degree of protection

IP54 display: conforming to IEC 60529; IP30 rear: conforming to IEC 60529

Relative humidity

5…95 % at 50 °C non-condensing

Pollution degree

2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

<= 3000 m

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

IN

Warranty (in months)

18

Measured value memory

Yes

Power factor

Yes

Suitable for RJ plug

No

Step angle (cos phi)

Yes

Harmonics measurement

Yes

Pulse output

Optical

Calibrated

No

Max. current (Imax)

20 A

Measurement type load profile

Yes

With communication interface KNX

No

With communication interface M-Bus

No

With communication interface RS-485

Yes

Model

Measurement transformer

Mounting method

DIN rail

Nominal current (In)

5 A

Pole type

Three conductor/four conductor

Apparent power

Yes

Connectable conductor cross section solid-core

0.82–3.31 mm²

Ampere meter

Yes

Reactive power meter

Yes

With rotational speed meter

No

Frequency meter

Yes

Pulse counter

No

Voltmeter

Yes

Effective power measurement device

Yes

Accuracy class active energy according to IEC 62053-22

0.2S

Sampling frequency

12800 Hz

Number of voltage measurement inputs

4

Number of current measurement inputs

8

Voltage type (supply voltage)

AC/DC

Supply voltage AC 50 Hz

100–480 V

Supply voltage AC 60 Hz

100–480 V

Supply voltage DC

125–250 V

Measuring range for frequency

45–65 Hz

Display

Optional

Remote display

No

Display resolution (horizontal)

128 px

Number of digital inputs

2

Number of digital outputs

4

Supporting protocol for IEC 61850 Ethernet

No

Supporting protocol for OPC UA PubSub

No

Supporting protocol for PROFIBUS

No

Supporting protocol for Modbus

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for other bus systems

Yes

With audit logging (audit log)

Yes

With firmware signature

No

With logging of security events (security event log)

Yes

With Role Based Access Control (RBAC)

No

Web server with HTTPS transfer protocol

Yes

HS Code

9028.30
