Bevegelsesvakt 120 IP55 WALL POLAR WHITE Blister
Pricing
Request a quote
We reply within 24 hours
Product Description

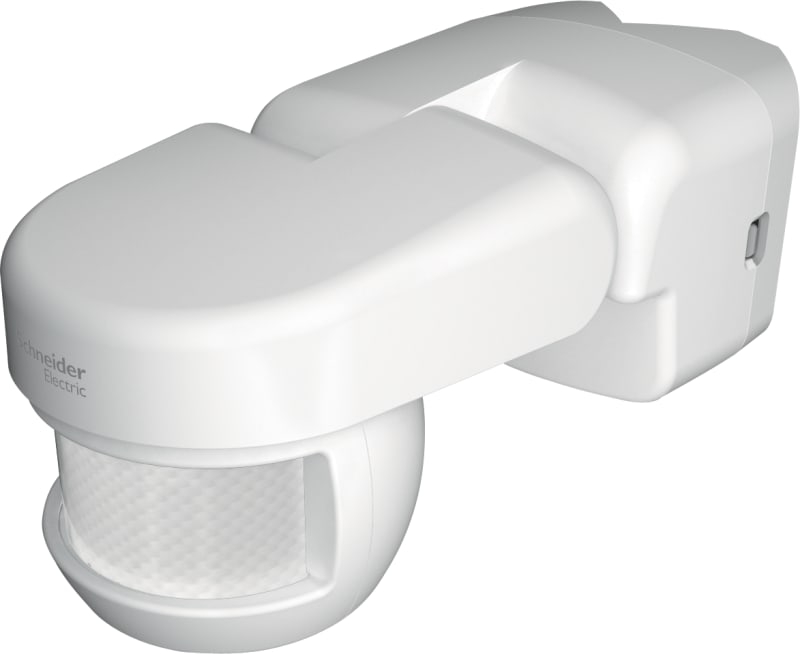

Schneider Electric CCTR1PA04 Bevegelsesvakt 120° IP55 WALL POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- CCTR1PA04
- EAN / GTIN
- 3606480217012
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP55
- Nominal voltage
- 240 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Movement sensor
- Halogen free
- Yes
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Frequency
- 50 Hz
- With remote control
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 12 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Temperature
- -15–40 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Ambient temperature
- -15–40 °C
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- Yes
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 120 °
- With connection cable
- No
- Degree of protection (IP)
- IP55
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–120 °
- Min. switch-on time
- 3 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- Yes
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, horizontal
- 180 °
- Pivoting range sensor, vertical
- 135 °
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 0 mm
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480217012
- SAP 1000419961
- Code 8983822
Product Documentation
More from Schneider Electric
Schneider Electric
Sign Ø60 for ZBZ16XX Imperial
ZBY9330M
Schneider Electric
OIL/GREASE Filter FOR 170X150
NSYCAF125O
Schneider Electric
Connection Box 80X80X45 Grey
ENN05004
Schneider Electric

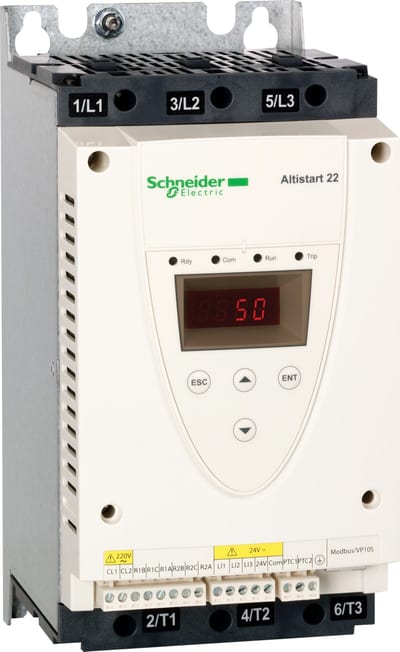

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(7.5kW)/400...440V(15kW)/500V(18.5kW) ATS22D32S6
Schneider Electric

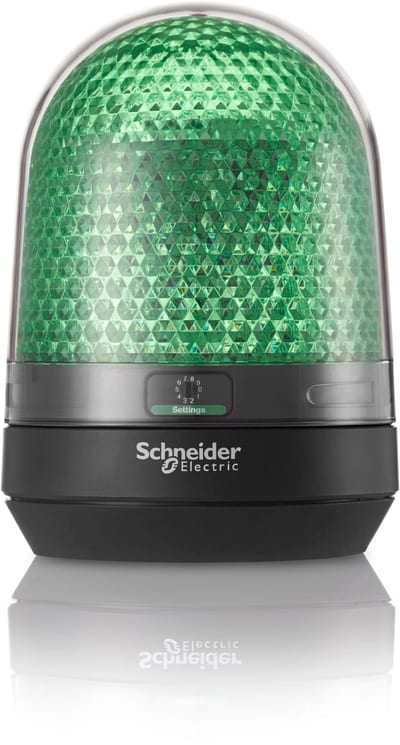

Warning Lamp 230VAC Green
XVR3M03
Schneider Electric

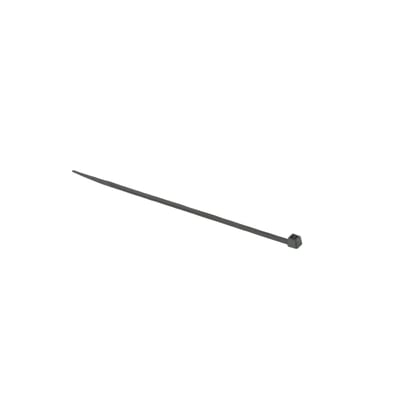

Schneider Electric Cable tie, Thorsman installation material, 100X2.5MM, black IMT46402
Schneider Electric
Retrofit kit, pocket, NW for MTZ2
LV850065SP
Schneider Electric

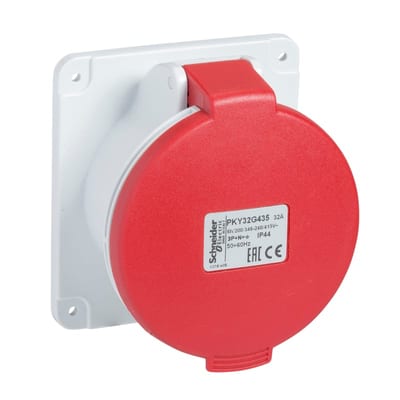

Schneider Electric PratiKa socket - fast - straight - 32A - 3P + E - 380...415 V AC - panel PKY32G434
