Schneider Electric APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet AP6020A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP6020A Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13.
Technical Specifications
- Manufacturer part number (MPN)
- AP6020A
- EAN / GTIN
- 0731304327806
- Sales unit
- pcs
- Presentation
- Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Provided equipment
- Installation guide; Safety guide
- Input Voltage
- 100 V; 120 V; 200 V; 208 V; 230 V; 240 V
- Height
- 388 mm
- Width
- 44 mm
- Depth
- 93 mm
- Product weight
- 1.5 kg
- Mounting location
- Front; Rear
- Mounting preference
- Lower
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Not rack-mountable
- Rack units
- 1U
- USB compatible
- No
- Mounting position
- Horizontal
- [In] rated current
- 16 A
- permissible voltage
- 100…240 V
- Max line current
- 20 A
- Input current limits
- 20 A
- Load capacity
- 3300 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 13 IEC 60320 C13
- Product certifications
- cUL listed; CE; EAC; IRAM; PSE; UL listed; VDE
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 43.6 cm
- Package 1 Width
- 7.6 cm
- Package 1 Length
- 21 cm
- Package 1 Weight
- 2.02 kg
- SCC14
- 10731304327803
- Warranty (in months)
- 24
- Nominal current
- 20 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Number of C13 socket outlets
- 13
- Number of height units
- 1
- Length
- 93 mm
- Supply voltage
- 240 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
- Country of origin
- India
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 0731304327806
- SAP 1200723267
- Code 83845759
Product Documentation
More from Schneider Electric
Schneider Electric

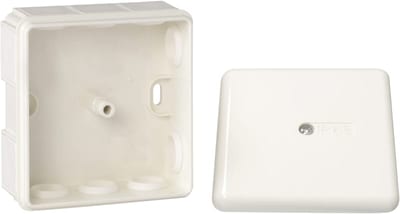

U56 Fire-Rated Junction Box without Terminals
IMT34126
Schneider Electric

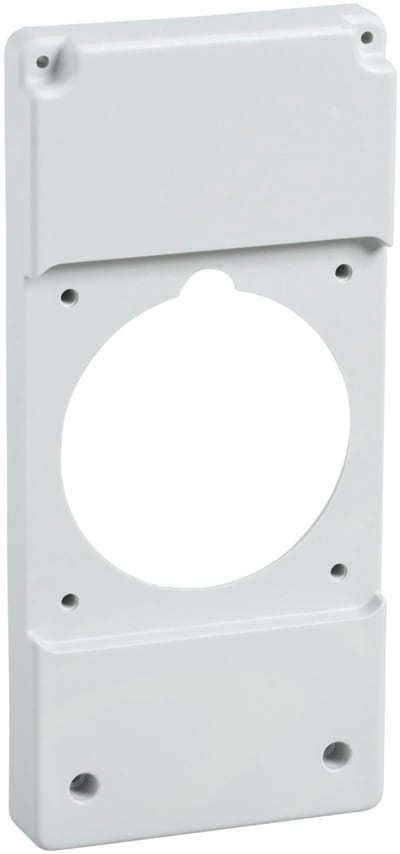

Plate 100X107 FOR 63A Outlet
13144
Schneider Electric

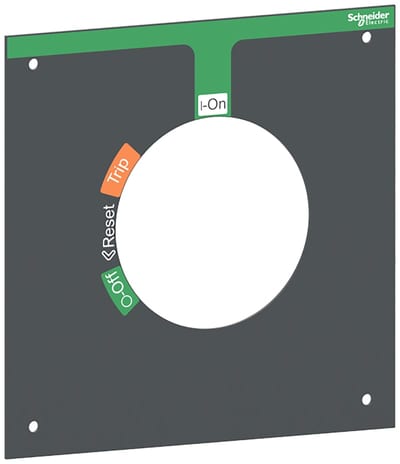

MCC dreieh. konverteringsett (LV432606T)
Schneider Electric

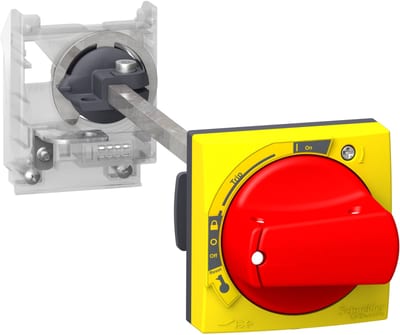

Kit Selector switch red IP54 GV2P/L
GV2APN02
Schneider Electric
Bevegelsesvakt 120 IP55 WALL POLAR WHITE Blister
CCTR1PA04
Schneider Electric

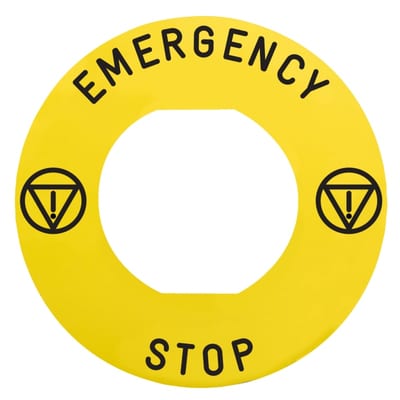

Sign Ø60 for ZBZ16XX Imperial
ZBY9330M
Schneider Electric
OIL/GREASE Filter FOR 170X150
NSYCAF125O
Schneider Electric

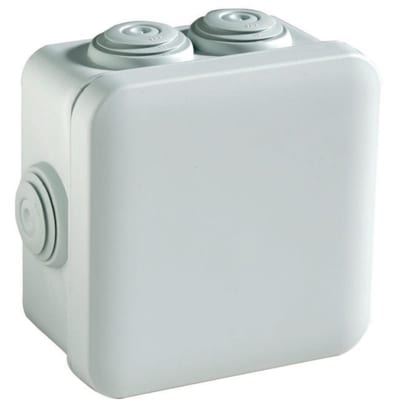

Connection Box 80X80X45 Grey
