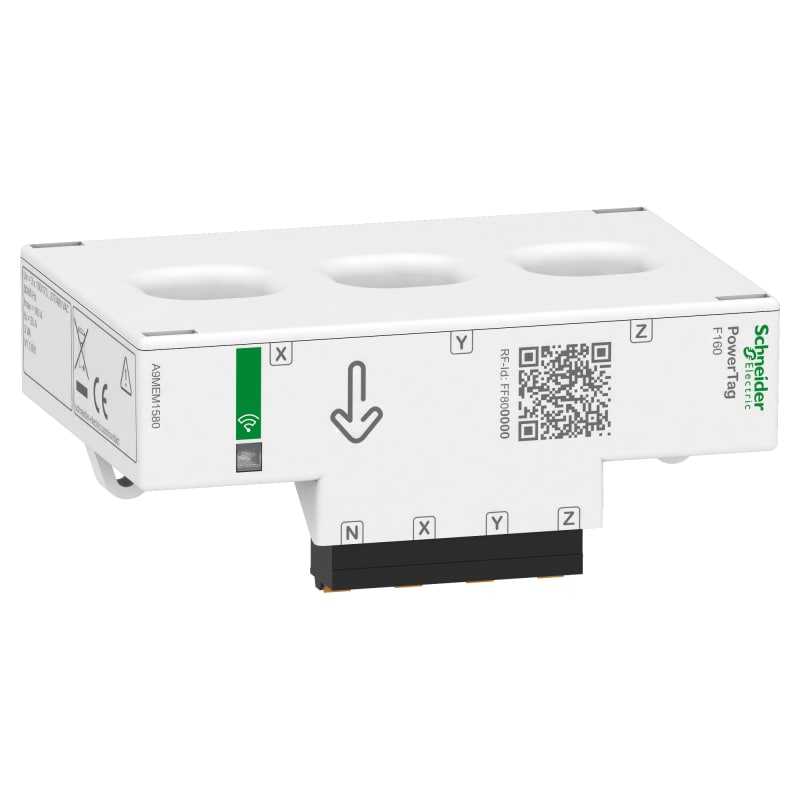

Schneider Electric energy sensor, PowerTag Flex 160A 3P/3P+N top and bottom position A9MEM1580

Schneider Electric A9MEM1580 PowerTag - 3P - Universal - Max.. 160 A - Wireless - Energisensor.

Manufacturer part number (MPN)

A9MEM1580

EAN / GTIN

3606481595270

Sales unit

pcs

Package quantity

24 pcs

Rated current

160 A

Number of poles

3P

Range of product

PowerLogic

Product name

PowerTag F160

Product or component type

Energy sensor

Poles

3P; 3P + N

Maximum current [Imax]

160 A

[Ib] Basic current

25 A

Starting current

100 mA

Saturation current

320 A

Product specific application

Energy management; Overload alarm; Power factor; Load monitoring; Circuit monitoring

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Harmony Hub; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Range compatibility

Acti9 Acti9 C120; Acti9 Acti9 NG125; ComPacT ComPact NSXm; TeSys TeSys GV4; ComPacT ComPacT INS; Acti9 Acti9 iSW; Acti9 Acti9 iSW-NA; Acti9 Acti9 iID; PowerPact PowerPact B

Type of measurement

Active and reactive energy; Apparent energy; Active and reactive power; Apparent power; Current; Voltage; Power factor; Internal temperature; Frequency

Accuracy class

Class 1 active energy conforming to IEC 61557-12; Class 2 reactive energy conforming to IEC 61557-12; Class 2 apparent energy conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 2 reactive power conforming to IEC 61557-12; Class 2 apparent power conforming to IEC 61557-12; Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12; Class 0.5 frequency conforming to IEC 61557-12

Metering type

Active energy E -a- IN/OUT 0...281 x 10exp(9) kWh at total per phase; Active energy E -a- IN/OUT 0...281 x 10exp(9) kWh at partial per phase; Active energy E -a- IN/OUT 0...281 x 10exp(9) kWh at 3-phase total; Active energy E -a- IN/OUT 0...281 x 10exp(9) kWh at 3-phase partial; Reactive energy E -rA- IN/OUT 0...281 x 10exp(9) kVARh at total per phase; Reactive energy E -rA- IN/OUT 0...281 x 10exp(9) kVARh at partial per phase; Reactive energy E -rA- IN/OUT 0...281 x 10exp(9) kVARh at 3-phase total; Reactive energy E -rA- IN/OUT 0...281 x 10exp(9) kVARh at 3-phase partial; Apparent energy E -apA- 0...281 x 10exp(9) kVAh at total per phase; Apparent energy E -apA- 0...281 x 10exp(9) kVAh at partial per phase; Apparent energy E -apA- 0...281 x 10exp(9) kVAh at 3-phase total; Apparent energy E -apA- 0...281 x 10exp(9) kVAh at 3-phase partial; Active power P, P1, P2, P3; Reactive power Q, Q1, Q2, Q3; Apparent power S, S1, S2, S3; Current I1, I2, I3; Calculated neutral current; Voltage U12, U23, U31; Voltage V1N, V2N, V3N; Frequency 45...65 Hz; Power factor at per phase; Power factor at total

Mounting location

Top or bottom

Mounting support

Cables

Connection pitch

27 mm

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

Flex

Mounting mode

Free mounting

Electrical connection (voltage sensing & power supply)

Removable spring terminal block

Cable cross section

1 rigid cable 0.2…1.5 mm² without cable end; 1 stranded cable 0.2…2.5 mm² without cable end; 1 stranded cable 0.25…1.5 mm² with cable end

Wire stripping length

11 mm

max power cable diameter

17 mm

supply voltage

100...277 V AC, +/- 20 %, phase to neutral; 173...480 V AC, +/- 20 %, phase to phase

Network frequency

50 Hz; 60 Hz

Maximum power consumption

3 VA

Standards

IEC 61557-12; IEC 61010-1; ETSI EN 301 489-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328

Product certifications

UL listed; IEC; DNV Marine

Height

39 mm

Width

91 mm

Depth

62 mm

Product weight

80 g

Colour

White (RAL 9003)

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Overvoltage category

IV conforming to IEC 61010-1

Measurement category

Category IV conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 55 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Indoor use

Country of origin

LV

Warranty (in months)

18

Mounting method

Plug-in technique

Model

Direct measurement

Suitable for

Purchase

Type of indication

None

Power consumption

3 W

Max. current (Imax)

160 A

Width in number of modular spacings

5

Type of meter

Electronic

Degree of protection (IP)

IP20

Energy type

Effective power and reactive power

Tariff type

One-tariff

Escapement mechanism

No

Calibrated

Yes

Approval

Domestic

Pulse output

None

Pole type

Four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal current (In)

160 A

HS Code

9030.33
