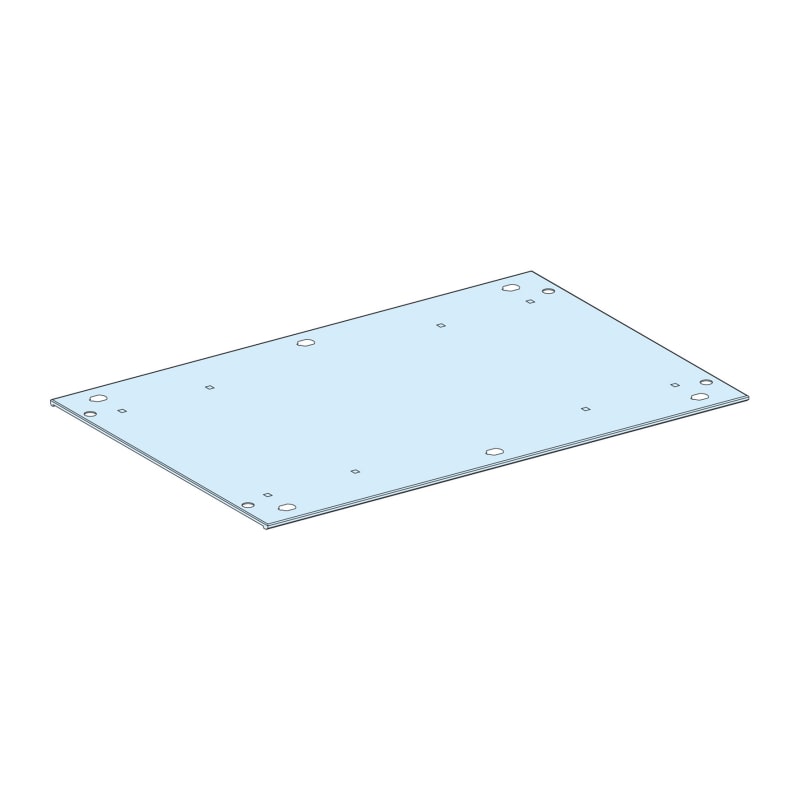

Top plate IP30 PrismaSeT P B650 D400
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08436 — Roof plate, PrismaSeT P, for enclosure W 650mm D 400mm, IP30.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08436
- EAN / GTIN
- 3606481877277
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle - width 650 mm, depth 400 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 650 mm
- Depth
- 400 mm
- Product weight
- 2.9 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 41.000 cm
- Package 1 Length
- 81.500 cm
- Package 1 Weight
- 2.989 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 15
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 82.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 56.900 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 650 mm
- Suitable for enclosure building depth
- 400 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877277
- SAP 1200547566
- Code 82879761
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric BMXAMM0600 mixed analogue I/O module X80 - 4 inputs - 2 outputs
Schneider Electric
Schneider Electric pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 24V AC DC XB5AVB5
Schneider Electric
Schneider Electric Vigi C120 - earth leakage add-on block - 4P - 300 mA - class A si A9N18560
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 400V AC 50/60Hz coil, screw clamp terminals LC1D25V7
Schneider Electric
Schneider Electric A9F08204 ACTI9 IC60H Miniature Circuit Breaker 2P 4 A, Curve D
Schneider Electric
Doorstopper S3D Metal
NSYAEDRSCST
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 80A, A-SI type, 300MA, selective, double terminal A9Z35480
Schneider Electric

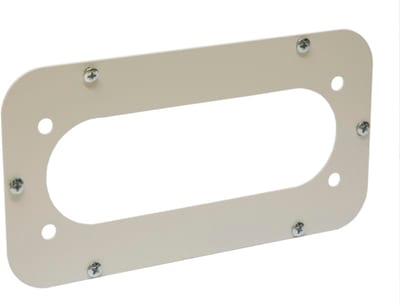

SWM CGP 495X220MM w/2 h. FL21
