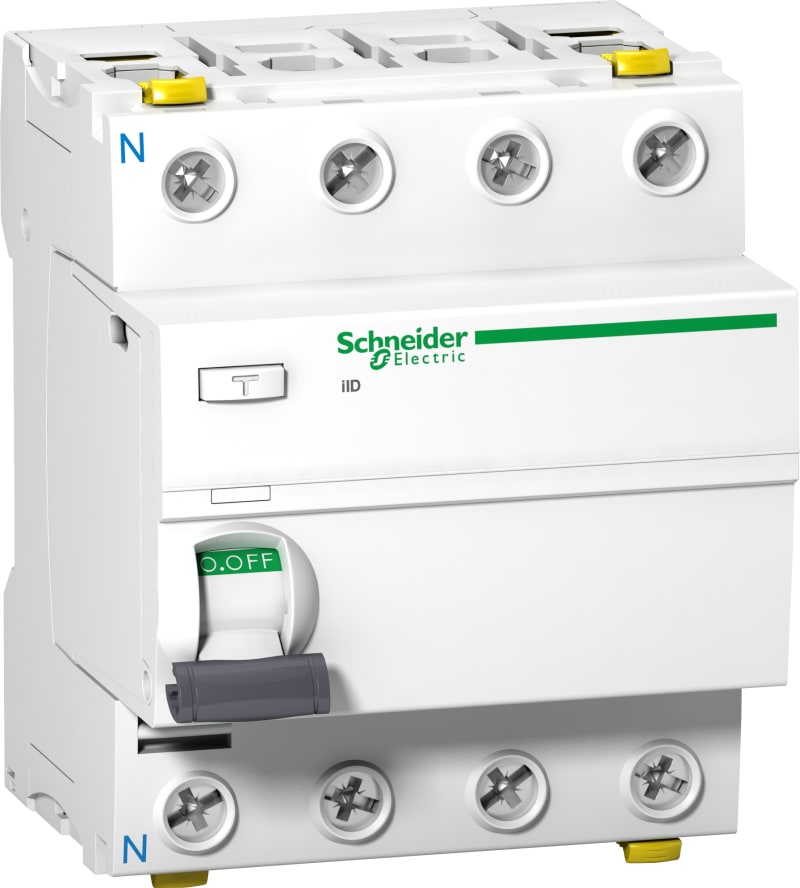

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 80A, A-SI type, 300MA, selective, double terminal A9Z35480
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9Z35480 Residual current circuit breaker iID 4P 80A 300mA-S A-Si.
Technical Specifications
- Manufacturer part number (MPN)
- A9Z35480
- EAN / GTIN
- 3606480442810
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Rated current
- 80 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 iID
- Product or component type
- Residual current circuit breaker (RCCB)
- Device short name
- iID
- Poles description
- 4P
- Neutral position
- Left
- [In] rated current
- 80 A
- Network type
- AC
- Earth-leakage sensitivity
- 300 mA
- Earth-leakage protection time delay
- Selective
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400...415 V AC 50/60 Hz
- Residual current tripping technology
- Voltage independent
- Rated breaking and making capacity
- Idm 1500 A; Im 1500 A
- Rated conditional short-circuit current
- 10 kA
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- 9 mm pitches
- 8
- Height
- 91 mm
- Width
- 72 mm
- Depth
- 73 mm
- Product weight
- 370 g
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 3.5 N.m top or bottom
- Standards
- EN/IEC 61008-1; EN/IEC 61008-2-1
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480442810
- SAP 1000343970
- Code 8380233
Product Documentation
More from Schneider Electric
Schneider Electric
SWM CGP 495X220MM w/2 h. FL21
NSYTLG2FL
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 4P, 125A, D curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18525
Schneider Electric
Schneider Electric wall-mounting enclosure polyester monobloc IP66 H747XW536XD300MM glazed door NSYPLM75TG
Schneider Electric
Feed Trunking FED-F1 AN L=2,5
5435210
Schneider Electric
Pilot Light Head White LED
ZB4BV013
Schneider Electric

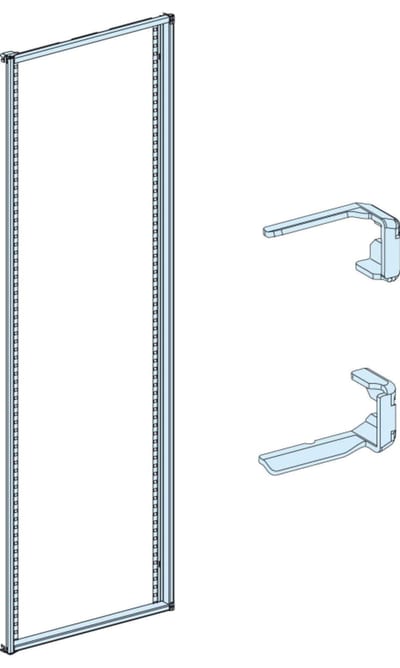

Hinged front plate frame PrismaSeTP B400
LVS08564
Schneider Electric

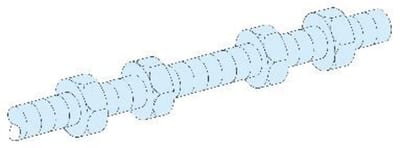

Avstandsboltfor connections MTZ1
LVS04691
Schneider Electric

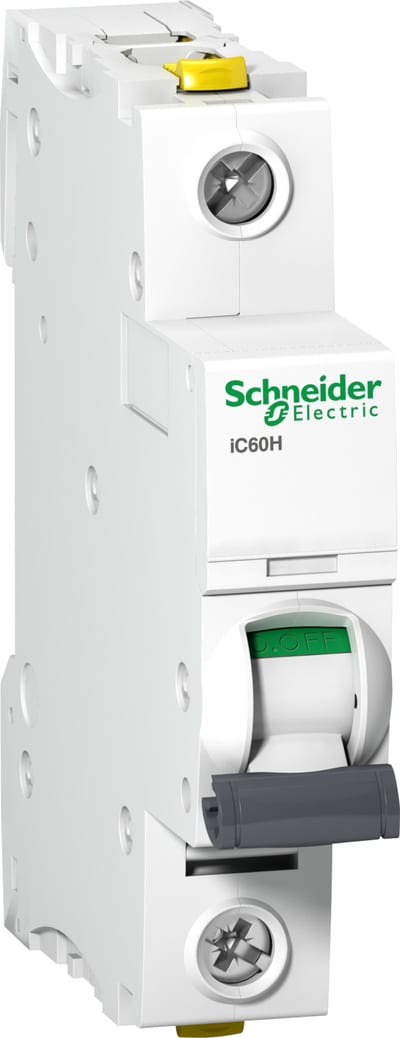

Schneider Electric A9F07140 ACTI9 IC60H Miniature Circuit Breaker 1P 40 A, Curve C
