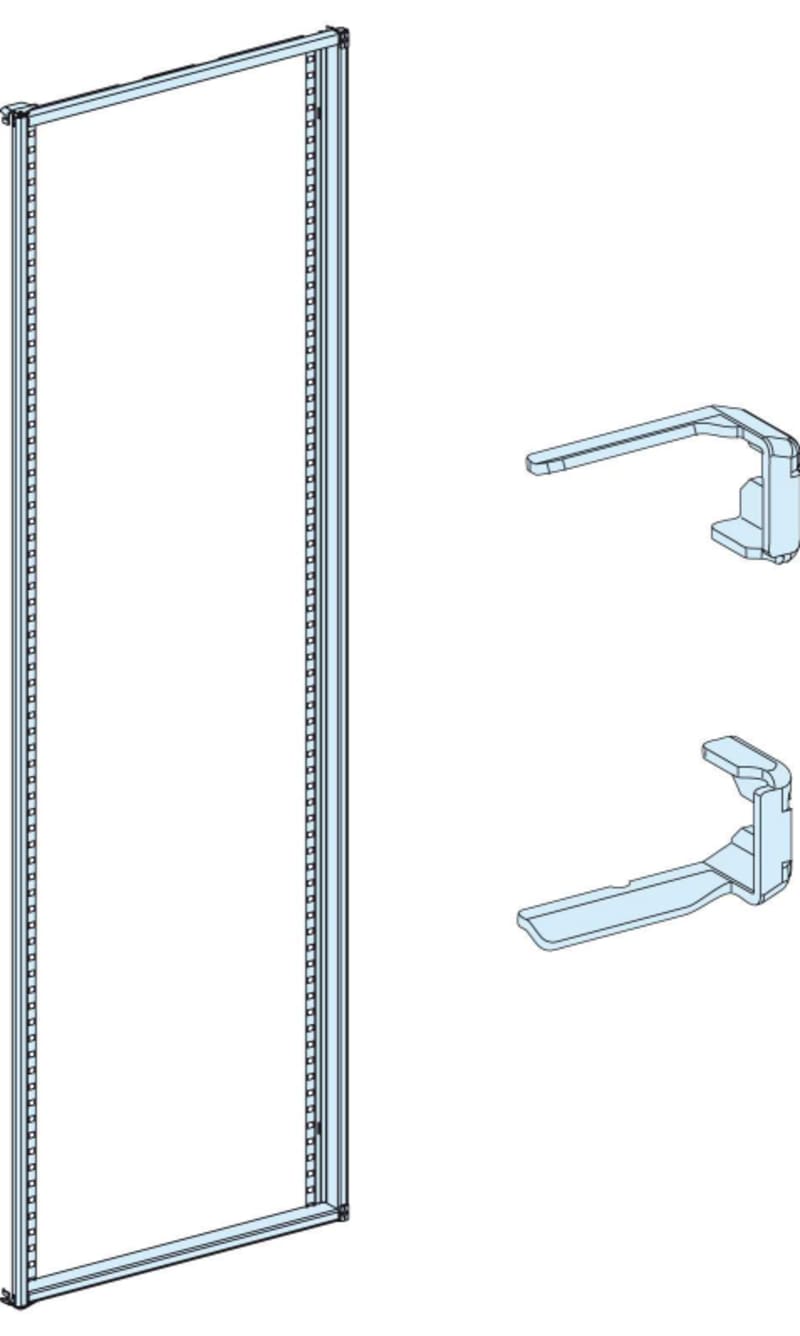

Hinged front plate frame PrismaSeTP B400
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08564 — HINGED FR.PLATE SUP.FRAME W400.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08564
- EAN / GTIN
- 3606481879240
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Hinged front plate support frame
- Range compatibility
- PrismaSeT PrismaSeT P cubicle duct
- Enclosure/cubicle description
- Cubicle duct - width 400 mm
- Number of vertical modules [50 mm]
- 36
- Quantity per set
- Set of 1
- Height
- 2000 mm
- Width
- 400 mm
- Product weight
- 5.18 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Standards
- IEC 62208
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.454 cm
- Package 1 Width
- 35.000 cm
- Package 1 Length
- 190.000 cm
- Package 1 Weight
- 5.800 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 15
- Package 2 Height
- 42.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 107.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building height
- 2000 mm
- Depth
- 40 mm
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879240
- SAP 1200547297
- Code 82879196
Product Documentation
More from Schneider Electric
Schneider Electric
Avstandsboltfor connections MTZ1
LVS04691
Schneider Electric
Schneider Electric A9F07140 ACTI9 IC60H Miniature Circuit Breaker 1P 40 A, Curve C
Schneider Electric
Emergency Stop Head with Wrench RED Ø40 (ZB5AS944)
Schneider Electric
3D emergency stop sign Ø60, Symbol
ZBY9121
Schneider Electric

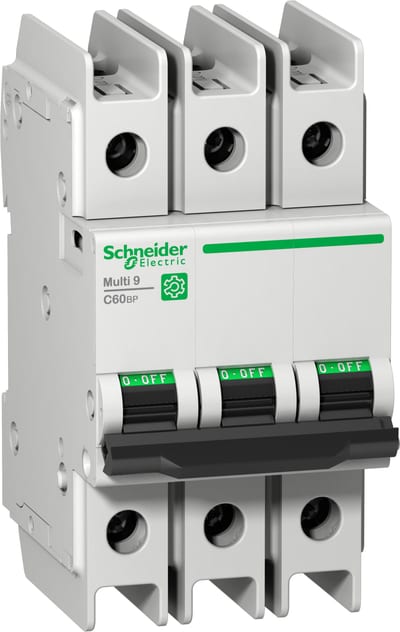

Schneider Electric Multi 9 - C60BP - MCB - 3P - 6 A - C Curve - 480Y/277 V - 10 kA - UL 489 M9F42306
Schneider Electric

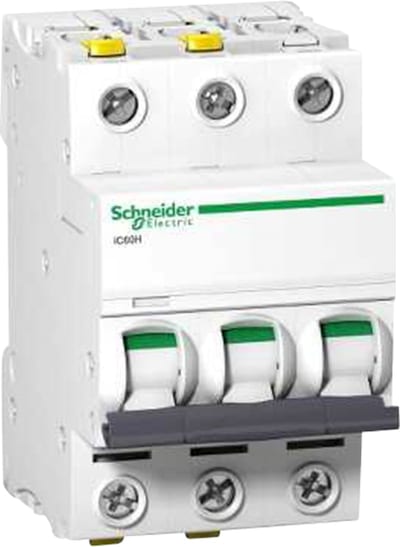

Schneider Electric A9F08310 ACTI9 IC60H Miniature Circuit Breaker 3P 10 A, Curve D
Schneider Electric

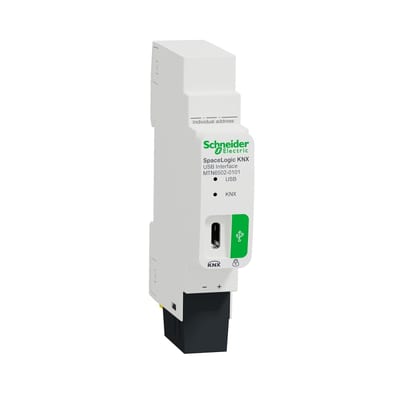

Schneider Electric USB Interface, SpaceLogic KNX, USB type C, DIN rail, white MTN6502-0101
Schneider Electric

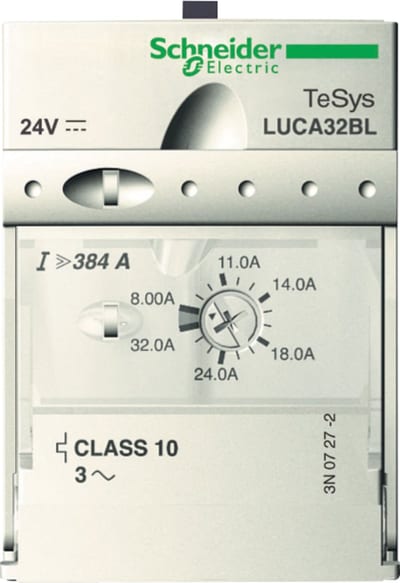

Schneider Electric Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC LUCA12FU
