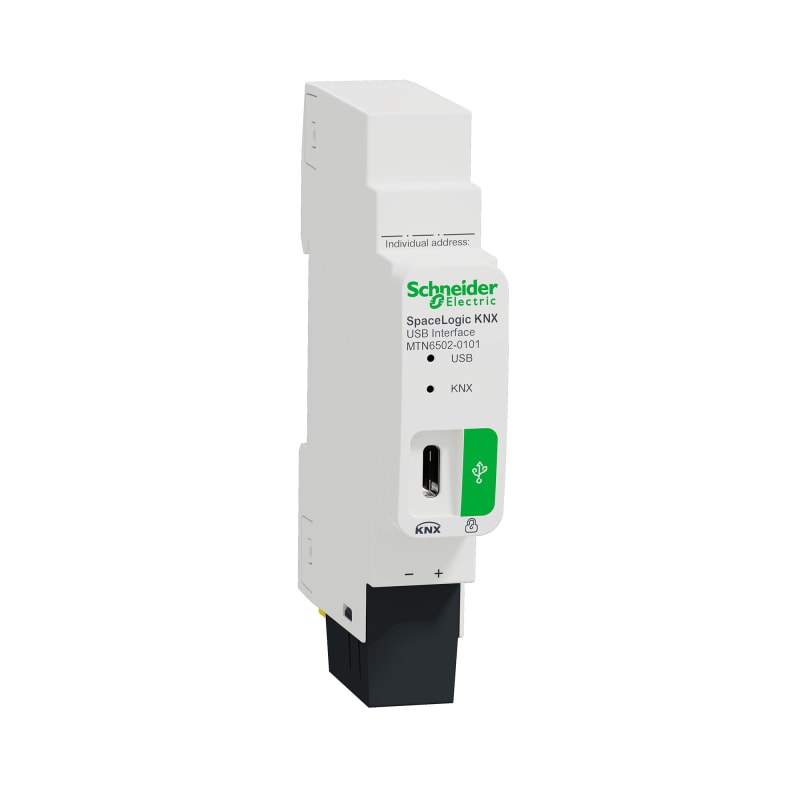

Schneider Electric USB Interface, SpaceLogic KNX, USB type C, DIN rail, white MTN6502-0101
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6502-0101 — USB Interface, SpaceLogic KNX, USB type C, DIN rail, white.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6502-0101
- EAN / GTIN
- 3606489917869
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- SpaceLogic KNX
- Device presentation
- Complete product
- Device mounting
- DIN rail
- Colour tint
- White (RAL 9003)
- Product or component type
- USB interface
- Bus type
- KNX
- Colour code
- RAL 9003
- Market segment
- Residential; Commercial
- Power supply input current
- 3 mA
- Connector type
- USB type C
- Function available
- Supports KNX Secure
- Material
- PC (polycarbonate)
- surface treatment
- Untreated
- Socket number
- 1
- Communication port protocol
- USB; KNX; KNX long frame
- Transmission rate
- 12 Mbit/s; 9600 bit/s
- total number of 18 mm modules
- 1
- Local signalling
- 2 LEDs
- Surface finish
- Glossy
- Mounting support
- DIN rail
- Ambient air temperature for operation
- -5…45 °C
- Standards
- EMC directive; EN 50491-3; EN 50491-5-2; EN 50491-5-3; EN 61000-6-2; EN 61000-6-3; EN 50581 : 2012
- IP degree of protection
- IP20
- Relative humidity
- 5…93 %
- Ambient air temperature for storage
- -25…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 84.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 5.717 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 1
- Material quality
- Thermoplastic
- Transparent
- No
- Max. data transmission rate
- 9600 Bd
- With bus connection
- Yes
- With label area
- Yes
- With LED indication
- Yes
- Degree of protection (IP)
- IP20
- Mounting method
- DRA (DIN-rail adaptor)
- Colour
- White
- Model
- USB
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606489917869
- SAP 1200422285
- Code 82450867
Product Documentation
