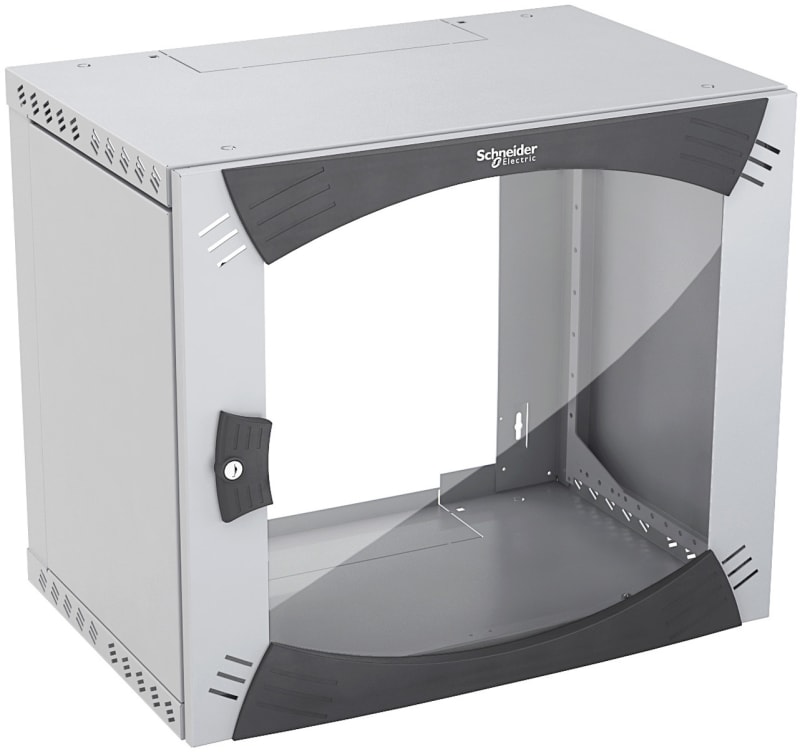

Schneider Electric Actassi OPB Wall-Mount 19 in. Enclosure 6U, W600 D400, Glazed Door, RAL 7035

Schneider Electric NSYOPB6U4F is an Actassi OPB open-box 19-inch wall-mount enclosure with 6U of rack height, 600 mm wide and 400 mm deep, finished in RAL 7035 light grey. Two fixed 19-inch uprights are recessed 120 mm from the front, and the reversible glazed front door has a single-point key lock (key 333); side panels and rear are toolless removable. Rated IP20 and IK08 to IEC 60297-3-100 and EIA-310D for structured cabling and passive network equipment.

Manufacturer part number (MPN)

NSYOPB6U4F

EAN / GTIN

3606480169762

Sales unit

pcs

Package quantity

12 pcs

Range

Actassi

Product name

Actassi OPB

Product or component type

19" enclosure

Device application

Cabling

applications

To mount 19" equipment; To protect network connectivity equipment

enclosure type

Open box

support equipment

2 x fixed 19" uprights recessed of 120 mm from the front (pitch 25 mm)

front face

Glazed door

Door type

Front glazed door - with 1 point locking system (key: 333) - reversible opening at 180 °

Accessibility for operation

Rear; Side; Front

Removable parts

Front door removable toolless; Top blanking plate; Bottom blanking plate; Rear blanking plate; Side panels removable toolless

colour

Light grey (RAL 7035)

Device composition

3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x open structure

load rating

50 kg static; 3 kg by unit

back face

Cut-out

side face

Panel

Number of cut-out

1 cut-outside; 1 cut-outbottom; 1 cut-outtop

installation mode

Wall mounted

Material

Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Galvanized steel: upright

Surface finish

Epoxy-polyester powder

Width

600 mm

Height

380 mm

Depth

400 mm

Product weight

17.2 kg

Number of rack unit

6U

Targeted region

Europe

IK degree of protection

IK08 conforming to IEC 62262

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60297-3-100; EIA-310D

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

Mounting level

Front side

Model

With permanent frame

Type of profile rail

None

Number of doors

1

Type of ventilation

None

Number of height units

6

Max. load capacity

50 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

Yes

Demountable

Yes

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Romania

HS Code

9403.20
