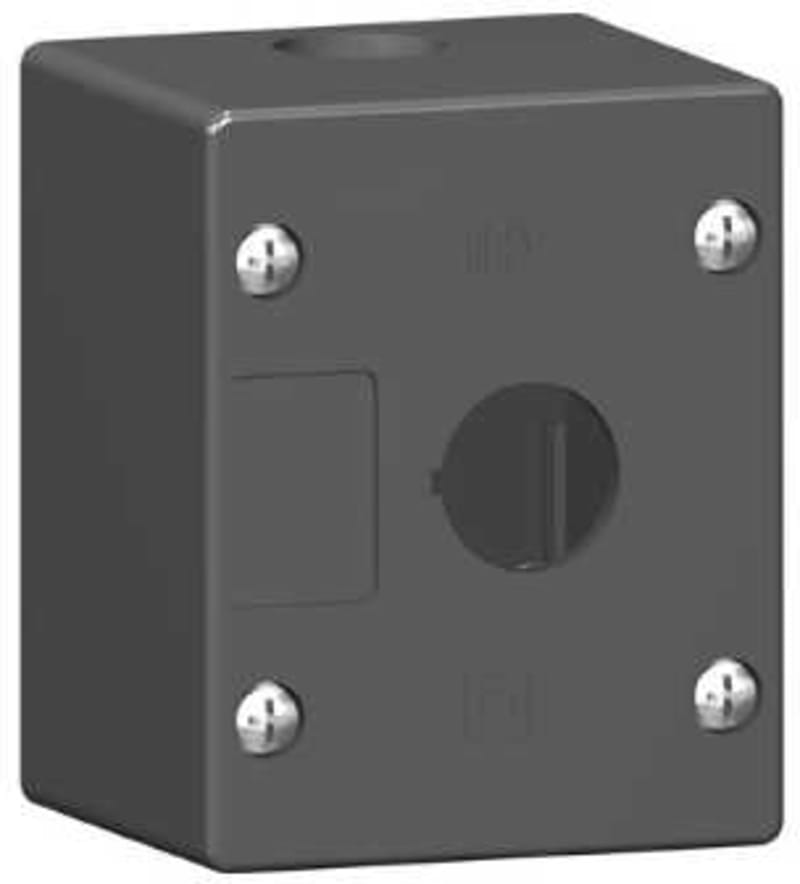

Schneider Electric XALG01 Empty Control Station, Black, for Severe Environments

Schneider Electric XALG01 empty control station enclosure for severe environments, black, pushbutton cut-outs, for Harmony Ø22 mm operators.

Manufacturer part number (MPN)

XALG01

EAN / GTIN

3389119019323

Sales unit

pcs

Package quantity

30 pcs

Range of product

Harmony XALG

Product or component type

Empty control station

Device short name

XALG

Product destination

For XB5 Ø 22 mm control and signalling units

Environmental characteristic

Severe ambiance

Colour of base of enclosure

Black (RAL 9005)

Colour of cover

Black (RAL 9005)

Material

Mineral reinforced polyamide

Cable entry

2 knock-outs for ISO M20 cable entry

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69; IP69K

Assembly style

For customer assembly

Number of cut-out

1 cut-out

CAD overall width

90 mm

CAD overall height

72 mm

CAD overall depth

65 mm

Product weight

0.226 kg

Resistance to high pressure washer

10 mPa at 80 °C, distance : 0.2 m

Protective treatment

TC; TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IK degree of protection

IK05 conforming to IEC 62262

Resistance to chemical agents

Good resistance to lactic acid at 10 °C; Good resistant to detergent at 60 °C; Not resistant to formic acid (10 %) at 50 °C; Not resistant to lactic acid at 90 °C; Good resistance to ammonia; Good resistance to benzene; Good resistance to butter; Good resistance to citric acid (10 %); Good resistance to cutting compounds; Good resistance to ethane; Good resistance to ethanol; Good resistance to ethylene; Good resistance to fatty acids; Good resistance to fatty alcohols; Good resistance to milk; Good resistance to motor oils and greases; Good resistance to oils (vegetable, mineral); Good resistance to petroleum; Good resistant to acetone; Good resistant to uric acid (20 %); Limited resistance to acetic acid (10 %); Limited resistance to boric acid; Not resistant to hydrogen peroxide (30 %); Not resistant to nitric acid (2 %)

Standards

IEC 60947-1; IEC 60947-5-1

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Width

72 mm

Height

90 mm

Depth

65 mm

Diameter openings

22.5 mm

Number of command positions

1

Colour housing cover

Black

Housing material

Plastic

Construction type housing

Surface mounted housing

Degree of protection (IP)

IP66

Housing material quality

Acrylonitrile butadiene styrene (ABS)

HS Code

3926.90

• EAN 3389119019323
• SAP 1000260707
• Code 8192142
