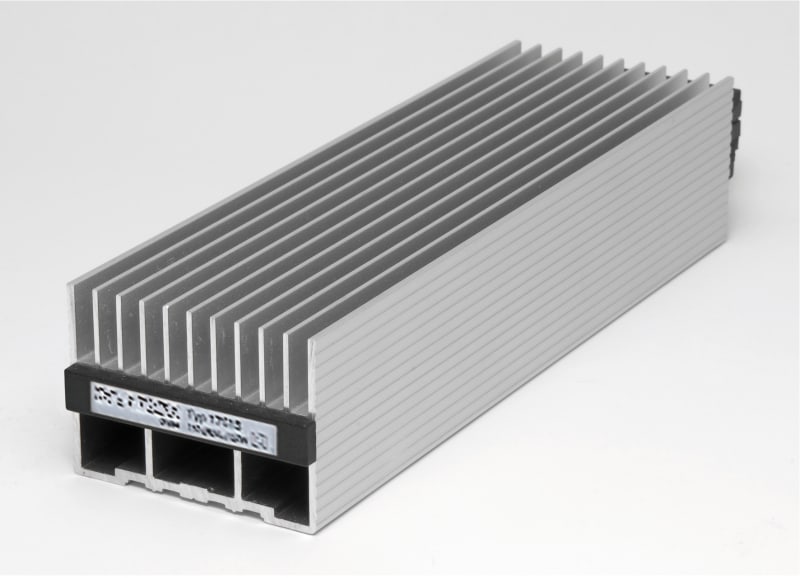

Schneider Electric ClimaSys PTC heating resistance 100W 110-250V NSYCR100WU2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR100WU2 HEATING ELEMENT PTC 90W 230V, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR100WU2
- EAN / GTIN
- 3606480152191
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Voltage
- 230 V
- Power
- 90 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Range compatibility
- Prisma P; Prisma G
- Power range
- 90 W
- Input voltage
- 110...250 V AC 50/60 Hz
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium
- Height
- 200 mm
- Width
- 85 mm
- Depth
- 65 mm
- Condition of use
- Heaters must be installed with a thermal controller; Air sealed enclosure; Electrical protection is needed
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Country of origin
- CN
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 90 W
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Continuous heating power at 10 °C
- 90 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480152191
- SAP 1000089002
- Code 8913285
