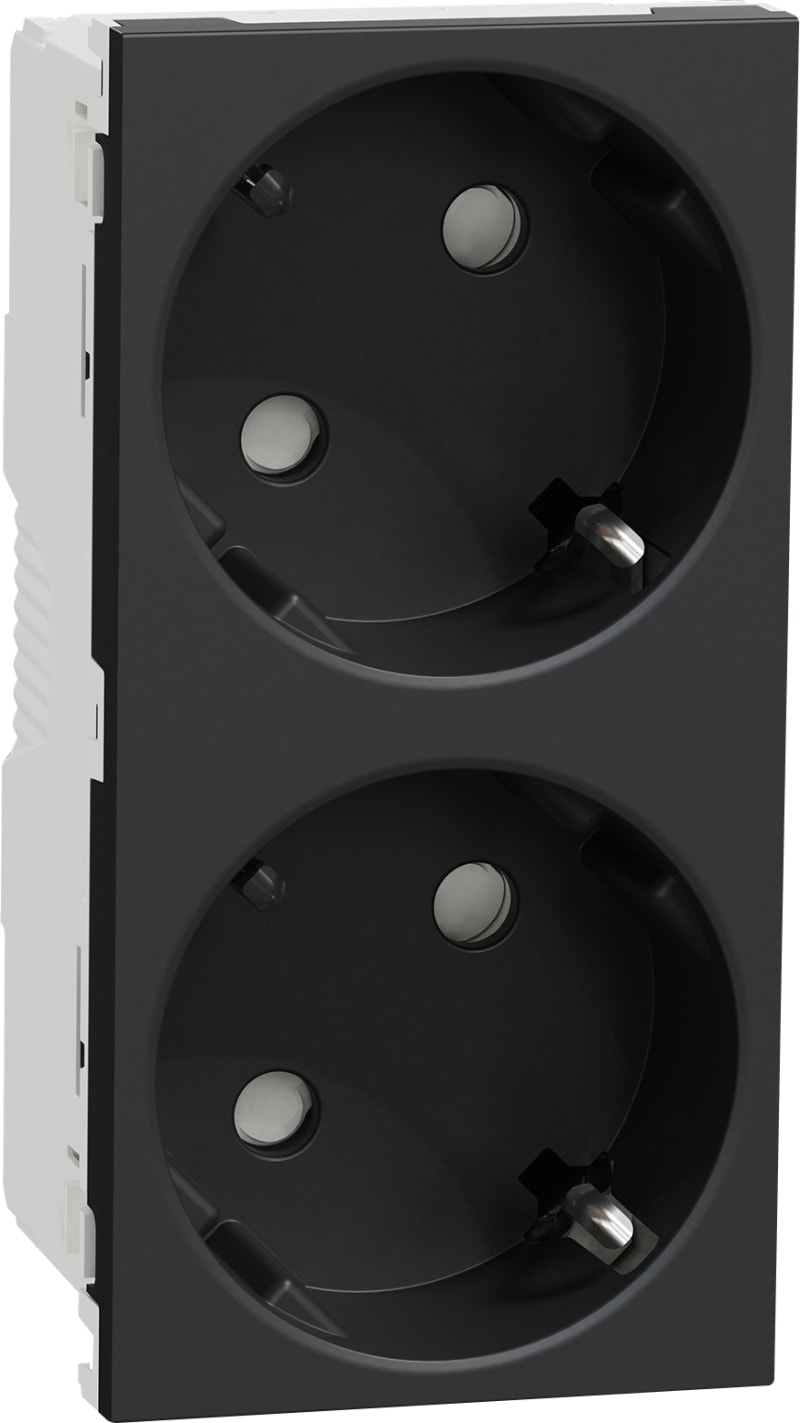

Schneider Electric 2 Socket-outlet, New Unica, mechanism, 2P + E, 16A, Schuko, with shutter, screwless terminals, painted, anthracite NU306654

Schneider Electric NU306654 New Unica, 2 way schuko outlet quick-connect terminal, 2P+ Earth, 16A 250V, IP21D,anthracite.

Manufacturer part number (MPN)

NU306654 EAN / GTIN: 3606481068552 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Range: New Unica Product or component type: Socket-outlet Device presentation: Mechanism with cover plate Device mounting: Flush Socket number: 2 Outlet poles configuration: 2P + E Outlet standard: CEE 7/3 Outlet standard deviation: Schuko Outlet standard description: Side earth Ground lug position: 45° ground lug Rated current: 16 A Condition of use: Indoor Device application: Power supply Cover type: With shutter [Ue] rated operational voltage: 230 V Network type: AC Network frequency: 50/60 Hz Number of modules: 4 modules fixing mode: Clip-in Colour tint: Anthracite (RAL 7021) Connections - terminals: Screwless terminals Cable cross section: 0…2.5 mm² cable(s), 2 - cable stiffness: flexible; 0…2.5 mm² cable(s), 2 - cable stiffness: rigid minimum load breaking capacity: 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 Electrical durability: 10000 cycles, cos phi = 0.8 Insulation resistance: > 5 MOhm at 500 V Dielectric strength: 2000 V material: PC: mechanism cover Surface finish: Matt Quantity per set: Set of 1 flow-pack Standards: IEC 60884-1 Product certifications: SEMKO; DEMKO; EAC Embedding depth: 31.1 mm Depth: 40.4 mm Width: 45 mm Height: 90 mm Product weight: 0.077 kg surface treatment: Painted resistance to chemical agents: Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane Ambient air temperature for operation: -5…35 °C Ambient air temperature for storage: -5…50 °C IK degree of protection: IK04 IP degree of protection: IP21D Environmental characteristic: Acetone; Bleach; UV resistant; Petrol; Oil; Alcohol; Window-cleaning fluid; Liquid soap Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 90 Warranty (in months): 18

HS Code

8536.90

• EAN 3606481068552
• SAP 1200569166
• Code 82908630
