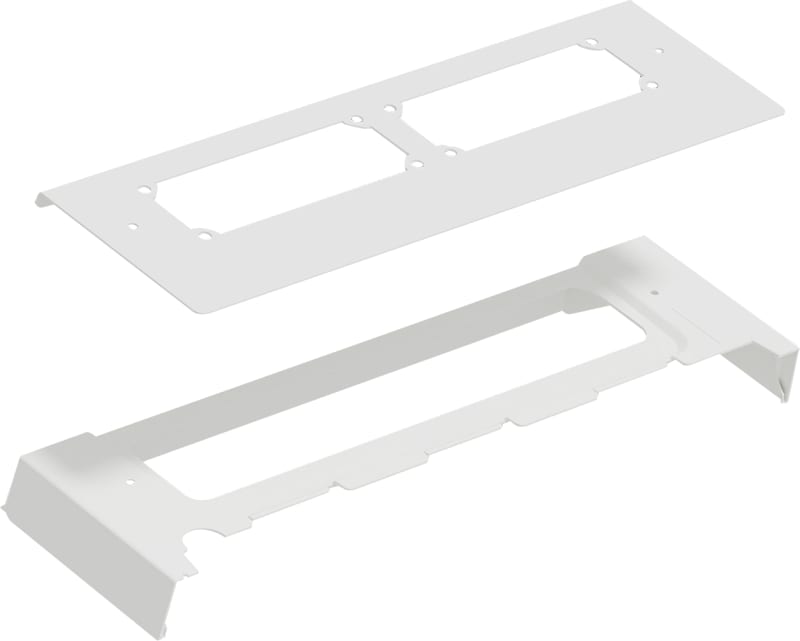

Flange Plate with Cut-Out for FL21 Flanges, Width 600 mm, PrismaSeT G, Green Top
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08854 metal flange plate with cut-out for FL21 flanges, width 600 mm, for PrismaSeT G enclosures IP30, with green top.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08854
- EAN / GTIN
- 3606482048867
- Sales unit
- pcs
- Range of product
- PrismaSeT G; PrismaSeT G Active
- Range
- PrismaSeT
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT G gland plate
- Product or component type
- Support gland plate
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- IP30 enclosure
- Enclosure/cubicle description
- Wall-mounted enclosure - width 600 mm
- Type of gland plate
- FL21 cut-out; Plastic gland plate
- Mounting location
- Top or bottom of the enclosure
- Material
- Treated sheet steel; Plastic
- Quantity per set
- Set of 2
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 72
- Warranty (in months)
- 18
- Thickness
- 2 mm
- Surface protection
- Powder coating
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606482048867
- SAP 1200662182
- Code 83110340
Product Documentation
