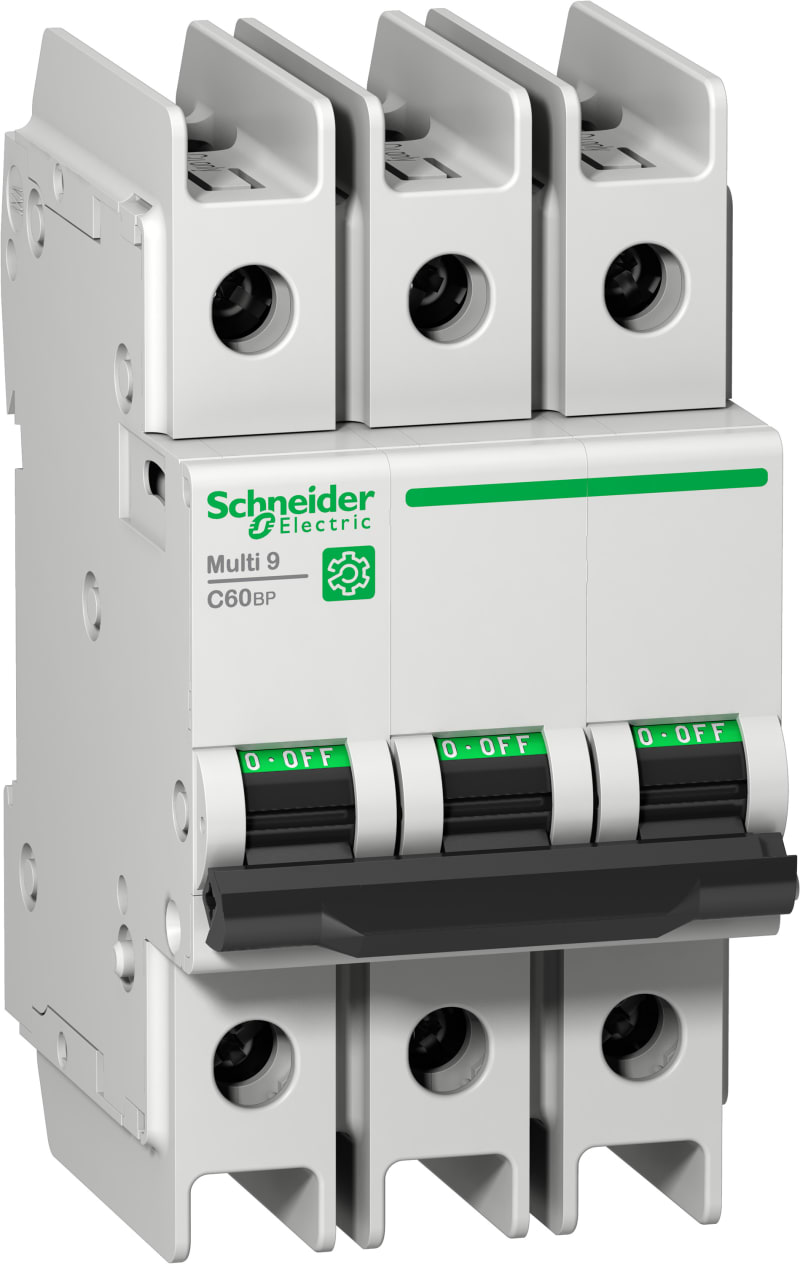

Schneider Electric Multi 9 - C60BP - MCB - 3P - 6 A - C Curve - 480Y/277 V - 10 kA - UL 489 M9F42306

Schneider Electric M9F42306.

Manufacturer part number (MPN)

M9F42306

EAN / GTIN

3606481169976

Sales unit

pcs

Package quantity

4 pcs

Rated current

6 A

Number of poles

3P

Range

Multi9

Product name

Multi9 C60

Product or component type

Miniature circuit-breaker

Device short name

C60BP

Device application

Distribution

Poles description

3P

Number of protected poles

3

[In] rated current

6 A at 25 °C conforming to EN/IEC 60947-2

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

C

Breaking capacity

6 kA Icu at 440 V AC conforming to EN/IEC 60947-2; 10 kA Icu at 415 V AC conforming to EN/IEC 60947-2; 20 kA Icu at 240 V AC conforming to EN/IEC 60947-2; 6 kA Icu at 440 V AC conforming to GB/T 14048.2; 10 kA Icu at 415 V AC conforming to GB/T 14048.2; 20 kA Icu at 240 V AC conforming to GB/T 14048.2; 14 kA AIR at 240 V AC conforming to UL 489; 10 kA AIR at 480Y/277 V AC conforming to UL 489; 14 kA AIR at 240 V AC conforming to CSA C22.2 No 5; 10 kA AIR at 480Y/277 V AC conforming to CSA C22.2 No 5

Standards

EN/IEC 60947-2; GB/T 14048.2; UL 489; CSA C22.2 No 5

Product certifications

IEC; CCC; CSA; UL

[Ue] rated operational voltage

240 V AC 50/60 Hz; 415 V AC 50/60 Hz; 440 V AC 50/60 Hz

Magnetic tripping limit

8.5 x In +/- 20 % AC

[Ics] rated service breaking capacity

4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC; 15 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC; 4.5 kA 75 % conforming to GB/T 14048.2 - 440 V AC; 7.5 kA 75 % conforming to GB/T 14048.2 - 415 V AC; 15 kA 75 % conforming to GB/T 14048.2 - 240 V AC

[Ui] rated insulation voltage

500 V AC conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

103 mm

Width

54 mm

Depth

72 mm

Colour

Grey

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Provision for padlocking

Padlockable

Connections - terminals

Tunnel type terminal (top or bottom)1…25 mm² (18 AWG...8 AWG) - rigid; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible with ferrule; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2.5 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-30…70 °C

Ambient air temperature for storage

-40…80 °C

Country of origin

FR

Warranty (in months)

18

Power loss

1.2 W

Built-in depth

48 mm

Release characteristic

C

Rated voltage

277 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Current limiting class

3

Concurrently switching neutral conductor

Yes

Overvoltage category

4

Additional equipment possible

Yes

Width in number of modular spacings

6

Degree of protection (IP)

IP20

Explosion-proof

No

Flush-mounted installation

No

HS Code

8504.40

• EAN 3606481169976
• SAP 1200081900
• Code 81957579
