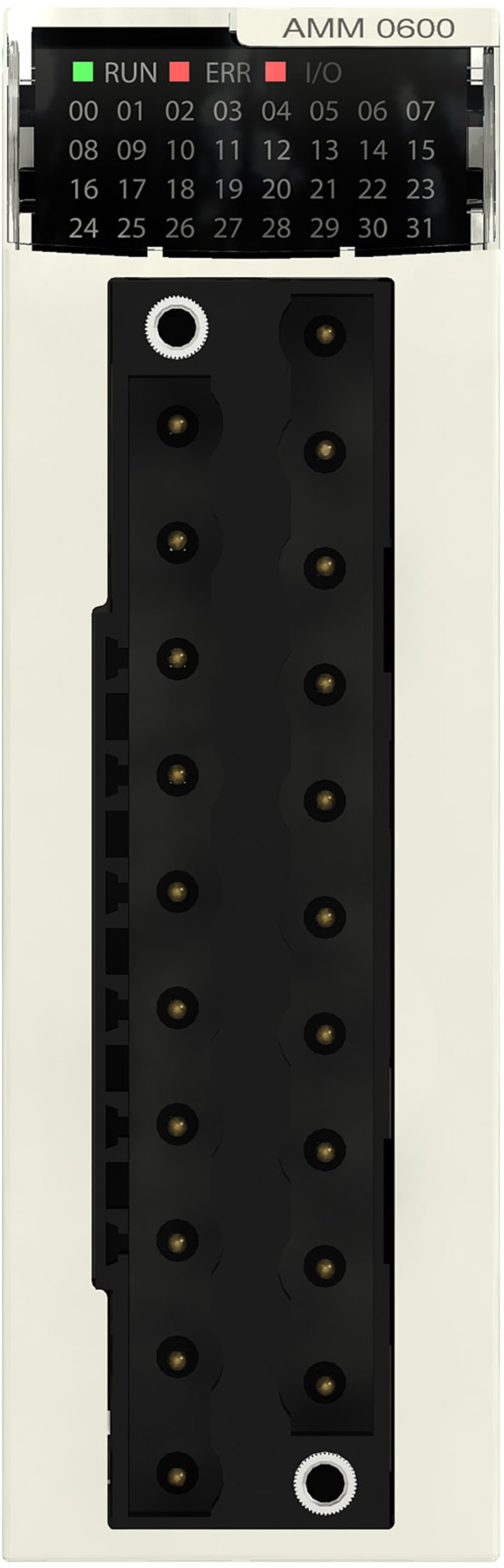

Schneider Electric BMXAMM0600 mixed analogue I/O module X80 - 4 inputs - 2 outputs

Schneider Electric BMXAMM0600 mixed analogue I/O module X80 - 4 inputs - 2 outputs is listed under Control & Automation / PLCs. HS code: 8538.90.

Manufacturer part number (MPN)

BMXAMM0600 EAN / GTIN: 3595863966268 Sales unit: pcs Package quantity: 15 pcs Range of product: Modicon X80 Product or component type: Mixed analogue I/O module Electrical connection: 20 ways 1 connector Isolation between channels: Non isolated Input level: High level Analogue input number: 4 Analogue input type: Current 0...20 mA; Current 4...20 mA; Voltage +/- 10 V; Voltage 0...10 V; Voltage 0...5 V; Voltage 1...5 V Analogue input resolution: 12 bits 0...20 mA; 12 bits 0...5 V; 12 bits 1...5 V; 12 bits 4...20 mA; 13 bits 0...10 V; 14 bits +/- 10 V Permitted overload on inputs: +/- 30 mA 0...20 mA; +/- 30 mA 4...20 mA; +/- 30 V +/- 10 V; +/- 30 V 0...10 V; +/- 30 V 0...5 V; +/- 30 V 1...5 V Input impedance: 250 Ohm Precision of internal conversion resistor: 0.1 % - 15 ppm/°C Type of filter: First order digital filtering by firmware Fast read cycle time: 1 ms + 1 ms x number of channels used Nominal read cycle time: 5 ms for 4 channels Measurement error: 0.25 % of full scale 0...20 mA 25 °C output; 0.25 % of full scale 4...20 mA 25 °C output; <= 0.35 % of full scale +/- 10 V 0...60 °C input; <= 0.35 % of full scale 0...10 V 0...60 °C input; <= 0.35 % of full scale 0...5 V 0...60 °C input; <= 0.35 % of full scale 1...5 V 0...60 °C input; <= 0.5 % of full scale 0...20 mA 0...60 °C input; <= 0.5 % of full scale 4...20 mA 0...60 °C input; <= 0.6 % of full scale +/- 10 V 0...60 °C output; <= 0.6 % of full scale 0...20 mA 0...60 °C output; <= 0.6 % of full scale 4...20 mA 0...60 °C output; 0.25 % of full scale +/- 10 V 25 °C output; 0.25 % of full scale +/- 10 V 25 °C input; 0.25 % of full scale 0...10 V 25 °C input; 0.25 % of full scale 0...5 V 25 °C input; 0.25 % of full scale 1...5 V 25 °C input; 0.35 % of full scale 0...20 mA 25 °C input; 0.35 % of full scale 4...20 mA 25 °C Temperature drift: 100 ppm/°C +/- 10 V output; 100 ppm/°C 0...20 mA output; 100 ppm/°C 4...20 mA output; 30 ppm/°C +/- 10 V input; 30 ppm/°C 0...10 V input; 30 ppm/°C 0...5 V input; 30 ppm/°C 1...5 V input; 50 ppm/°C 0...20 mA input; 50 ppm/°C 4...20 mA input Recalibration: Factory calibrated on outputs; Internal on inputs minimum crosstalk attenuation: 70 dB Common mode rejection: 80 dB Isolation voltage: 1400 V DC between channels and ground; 1400 V DC between channels and bus; 750 V DC between group of I/O channels Output level: High level Analogue output number: 2 Analogue output type: Current: 0...20 mA; Current: 4...20 mA; Voltage: +/- 10 V Analogue output resolution: 11 bits, 0...20 mA; 11 bits, 4...20 mA; 12 bits, +/- 10 V Conversion time: <= 2 ms Maximum conversion value: +/- 11.25 V +/- 10 V output; +/- 11.25 V +/- 10 V input; 0...30 mA 0...20 mA input; 0...30 mA 4...20 mA input; +/- 11.25 V 0...10 V input; +/- 11.25 V 0...5 V input; +/- 11.25 V 1...5 V input; 0...24 mA 0...20 mA output; 0...24 mA 4...20 mA output Fallback mode: Predefined; Configurable MTBF reliability: 1400000 H Operating altitude: 0...2000 m; 2000...5000 m with derating factor Status LED: 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O Product weight: 0.155 kg Power consumption in W: 2.6 W 24 V DC typical; 3.2 W 24 V DC maximum; 0.35 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum Current consumption: 240 mA at 3.3 V DC Vibration resistance: 3 gn Shock resistance: 30 gn Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: 0…60 °C Relative humidity: 5…95 % at 55 °C without condensation IP degree of protection: IP20 Directives: 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility Product certifications: CE; RCM; CSA; EAC; Merchant Navy; UL Standards: IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 Protective treatment: Standard version Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.500 cm Package 1 Width: 11.000 cm Package 1 Length: 11.600 cm Package 1 Weight: 172.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 15 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 2.882 kg Country of origin: FR Warranty (in months): 18 Power consumption: 3.2 W Number of analogue inputs: 4 Number of analogue outputs: 2 Analogue inputs configurable: Yes Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: Yes Resolution of the analogue inputs: 14 Bit Output, current: Yes Output, voltage: Yes Output signal configurable: Yes Resolution of the analogue outputs: 12 Bit Type of electric connection: Plug-in connection Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): Yes Width: 32 mm Height: 100 mm Depth: 150 mm

HS Code

8538.90

• EAN 3595863966268
• SAP 1000253869
• Code 81134167
