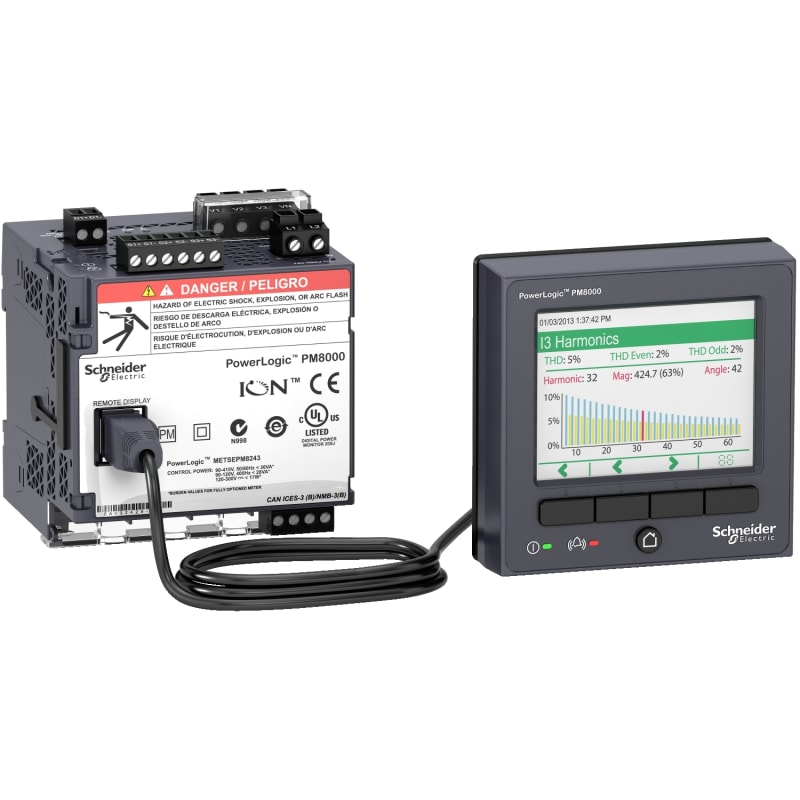

Schneider Electric PowerLogic PM8000 - PM8244 DIN rail mount meter + Remote display - int. metering METSEPM8244

Schneider Electric METSEPM8244 PM8244 Advanced power analyser for DIN-rail with fjerndisplay.

Manufacturer part number (MPN)

METSEPM8244

EAN / GTIN

3606480701979

Sales unit

pcs

Range

PowerLogic

Product name

PowerLogic PM8000

Product or component type

Power meter

Device short name

PM8244

Market segment

Buildings large building cost management: billing: sub feeder; Buildings small building network management: main incomer; Buildings medium building network management: main incomer; Buildings large building network management: main incomer; Buildings large building network management: sub feeder; Buildings multi-site network management: main incomer; Buildings multi-site network management: sub feeder; Data center network management: main incomer; Data center network management: sub feeder; Healthcare network management: main incomer; Healthcare network management: sub feeder; Industry network management: main incomer; Industry network management: sub feeder; Utility: sub feeder

model type

Standard

Power quality analysis

conforming to EN 50160: 2010 compliance report; conforming to IEEE 519: 2014 compliance report; conforming to IEC 61000-4-30: class S power quality measurement; up to the 63rd harmonic; harmonic distortion; waveform capture; voltage sag and swell detection; programmablity (logic and math functions); conforming to IEC 62586 power quality monitoring; disturbance direction detection; rapid voltage change

Device application

WAGES metering; Power monitoring

Type of measurement

Current; Voltage; Frequency; Active and reactive power total; Apparent power total; Power factor total; Active and reactive power per phase, rms; Apparent power per phase, rms; Power factor per phase, rms

supply voltage

90...415 V AC 45...65 Hz +/- 10 %; 110...415 V DC +/- 10 %

Network frequency

50 Hz; 60 Hz

[In] rated current

10 A; 5 A; 1 A

Poles description

3P; 1P + N; 3P + N

Power consumption in VA

16 VA at 230 V AC

Display type

Remote LCD display

Display resolution

320 x 240 pixels QVGA

Sampling rate

256 samples/cycle

Measurement current

50…10000 mA

Analogue input type

Voltage (impedance 5 MOhm); Current (impedance 0.3 mOhm)

Measurement voltage

57…400 V AC 42...69 Hz between phase and neutral; 100…690 V AC 42...69 Hz between phases

Frequency measurement range

42…69 Hz

Number of inputs

3 digital 30 V AC; 3 digital 60 V DC

Measurement accuracy

Current +/- 0.1 %; Voltage +/- 0.1 %; Active energy +/- 0.2 %

Accuracy class

Class 0.2S active energy conforming to IEC 62053-22; Class 0.2 active energy conforming to ANSI C12.20; Class 0.2 active power conforming to IEC 61557-12; Class 0.5S reactive energy conforming to IEC 62053-24; Class 0.5 power factor conforming to IEC 61557-12; Class 0.2 voltage conforming to IEC 61557-12; Class 0.2 current conforming to IEC 61557-12

Number of outputs

1 pulse

Information displayed

Voltage; Current; Frequency; Power; Energy consumption; Harmonic distortion

Communication port protocol

Modbus RTU at 115 kbauds - 2-wire; ION at 115 kbauds - 2-wire; DNP3; IEC 61850; Modbus TCP/IP; Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s; RSTP 801.1d 2004

Communication port support

ETHERNET; Screw terminal block: RS485

Communication network type

IPv6 (internet protocol)

Data recording

Sequence of event recording; Event logs; Min/max of instantaneous values; Harmonics logs; Alarm logs; GPS synchronisation; Waveform logs; Data logs; Time stamping; Trending/forecasting; Sag and swell logs; 50 data recorders

Memory capacity

512 MB

Web services

Customizable home page; File upload/download via FTP; File upload/download via SFTP; Web server; Alarm notification by e-mail; Viewing of captured waveform (FTP); Viewing of captured waveform (web); HTTPS server

Communication service

SMTP e-mail notification; RSTP support; NTP time synchronization; DHCP; PTP time synchronization

Cybersecurity

Password protection; Syslog protocol support; Port hardening; Robust security logs; Enable/disable communication ports

mounting mode

Flush-mounted; Clip-on

Mounting support

DIN rail meter device; Framework remote display

Provided equipment

Remote display

Installation category

III

Safety Construction

III400…690 V conforming to IEC 61010-1:ed. 3; III400…690 V conforming to EN 61010-1:ed. 3; III347…600 V conforming to UL 61010-1:ed. 3; III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3

Standards

IEC 62053-22; IEC 62053-24; IEC 62052-11; IEC 61557-12; IEEE 1588; IEC 62586-2; IEC 61326-1

Product certifications

CE; CULus; N998

Width

90.5 mm

Depth

90.8 mm

Height

90.5 mm

Product weight

528 g

Electromagnetic compatibility

Electrostatic discharge conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test conforming to IEC 61000-4-4; Surge immunity test conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Magnetic field at power frequency conforming to IEC 61000-4-8; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11; Immunity to impulse waves conforming to IEC 61000-4-12; Conducted and radiated emissions conforming to EN 55022; Conducted and radiated emissions conforming to EN 55011; Conducted and radiated emissions conforming to FCC part 15; Conducted and radiated emissions conforming to ICES-003; Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579; Surge withstand conforming to IEEE C37.90.1

IP degree of protection

IP30 conforming to IEC 60529

Relative humidity

5…95 %

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

3000 m

Compatibility code

PM8244

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.800 cm

Package 1 Width

14.000 cm

Package 1 Length

36.800 cm

Package 1 Weight

1.305 kg

Unit Type of Package 2

S03

Number of Units in Package 2

4

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.212 kg

Unit Type of Package 3

P12

Number of Units in Package 3

32

Package 3 Height

45.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

61.696 kg

Country of origin

CA

Warranty (in months)

18

Measured value memory

Yes

Power factor

Yes

Suitable for RJ plug

Yes

Step angle (cos phi)

Yes

Harmonics measurement

Yes

Pulse output

Electrical

Calibrated

Yes

Max. current (Imax)

20 A

Measurement type load profile

Yes

With communication interface KNX

No

With communication interface M-Bus

No

With communication interface RS-485

Yes

Model

Measurement transformer

Mounting method

DIN rail

Nominal current (In)

5 A

Pole type

Three conductor/four conductor

Apparent power

Yes

Connectable conductor cross section solid-core

1.31–5.26 mm²

Ampere meter

Yes

Reactive power meter

Yes

With rotational speed meter

No

Frequency meter

Yes

Pulse counter

No

Voltmeter

Yes

Effective power measurement device

Yes

Accuracy class active energy according to IEC 62053-22

0.2S

Sampling frequency

25600 Hz

Number of voltage measurement inputs

4

Number of current measurement inputs

8

Voltage type (supply voltage)

AC/DC

Supply voltage AC 50 Hz

90–415 V

Supply voltage AC 60 Hz

90–415 V

Supply voltage DC

110–415 V

Measuring range for frequency

42–69 Hz

Display

None

Remote display

Yes

Number of digital inputs

3

Number of digital outputs

1

Number of Ethernet connections

2

Supporting protocol for IEC 61850 Ethernet

Yes

Supporting protocol for OPC UA PubSub

No

Supporting protocol for PROFIBUS

No

Supporting protocol for Modbus

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for other bus systems

Yes

HS Code

9028.30
