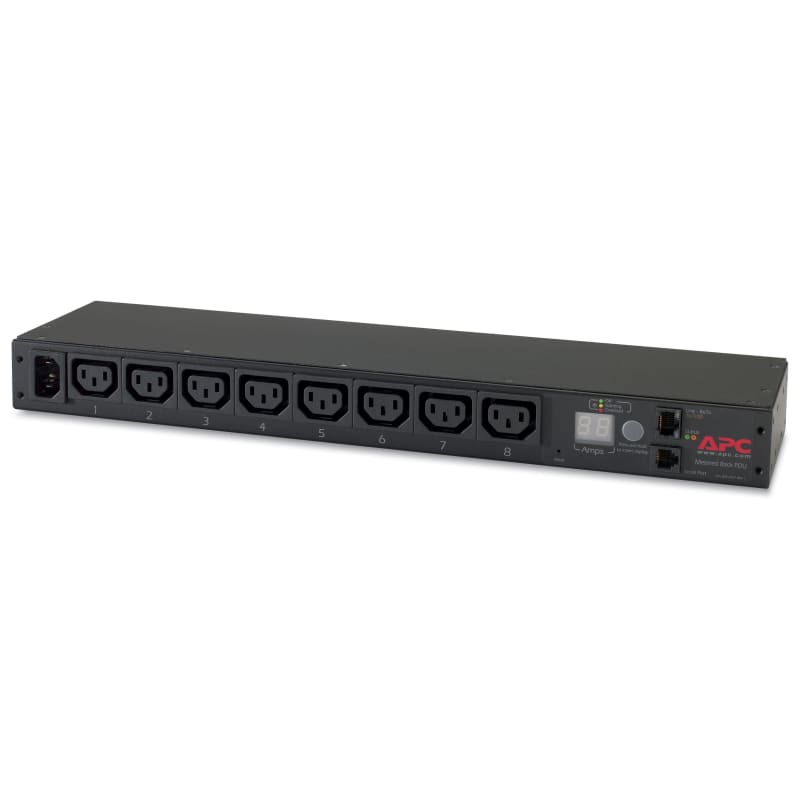

Schneider Electric Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13 AP7820B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP7820B RACK PDU, METERED, 1U, 12A/208V, 10A/230.
Technical Specifications
- Manufacturer part number (MPN)
- AP7820B
- EAN / GTIN
- 0731304331506
- Sales unit
- pcs
- Product or component type
- PDU
- PDU type
- Metered
- Cord length
- 1.98 m
- Provided equipment
- Cord retention bracket(s); Installation guide; Rack mounting brackets; User manual
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 44 mm
- Width
- 444 mm
- Output Voltage
- 208 V; 230 V
- Depth
- 102 mm
- Product weight
- 1.73 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C14
- mounting mode
- Rack-mounted
- Rack units
- 1U
- Mounting position
- Horizontal
- [In] rated current
- 10 A
- Input current limits
- 15 A
- Load capacity
- 2300 VA
- Rated current
- 10 A - 230 V; 12 A - 208 V
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 8 IEC 60320 C13
- Product certifications
- cUL listed; C-Tick; CE; CSA; GOST; UL listed; VDE; VCCI
- Standards
- FCC part 15 class A; UL 60950
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.4 cm
- Package 1 Width
- 33.7 cm
- Package 1 Length
- 47 cm
- Package 1 Weight
- 2.91 kg
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 15 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 1.9 m
- Number of C13 socket outlets
- 8
- Number of height units
- 1
- Length
- 102 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
- Colour
- Black
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304331506
- SAP 1200015809
- Code 81384981
Product Documentation
