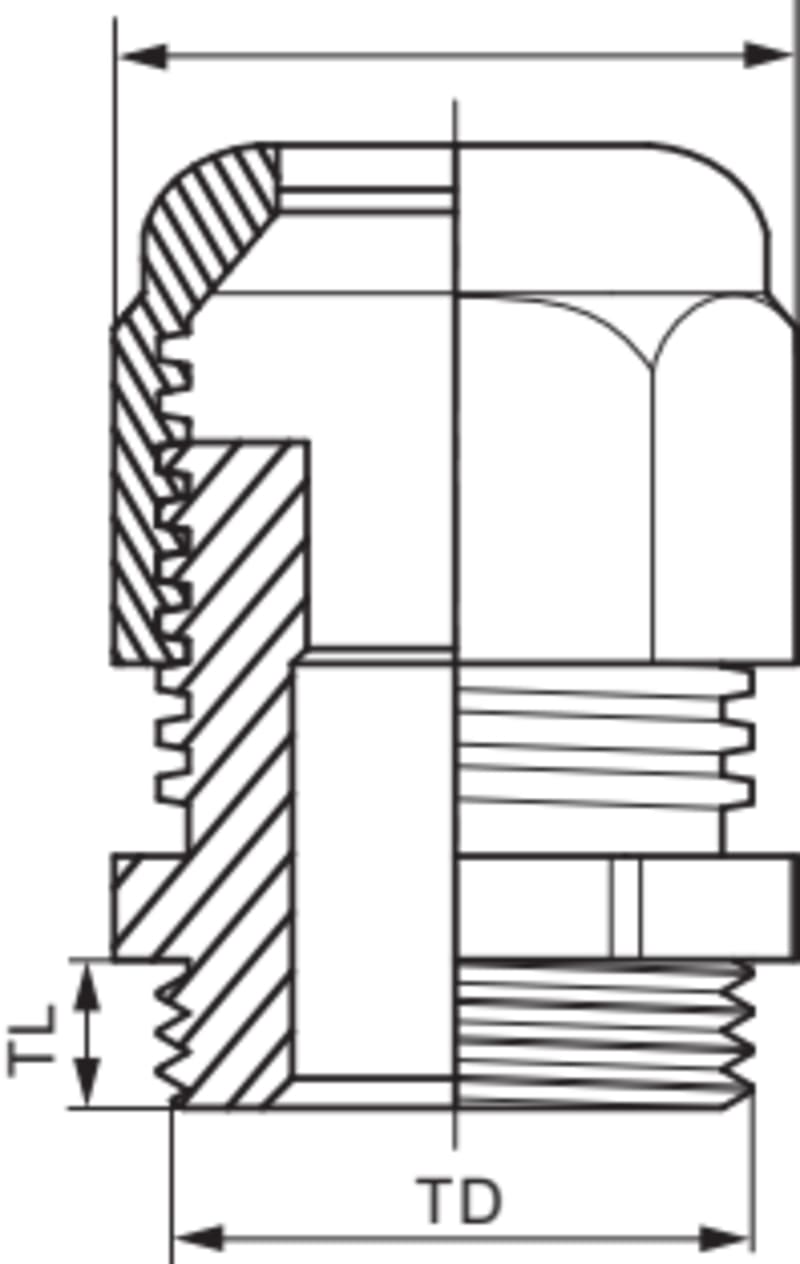

Schneider Electric Thorsman Glands - cable gland - grey - M40 - diameter 19 to 28 ISM71506
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM71506 Spacial SBM - press étoupe - IP68 - ISO M40.
Technical Specifications
- Manufacturer part number (MPN)
- ISM71506
- EAN / GTIN
- 3606480077234
- Sales unit
- pcs
- Package quantity
- 5 pcs
- IP rating
- IP68
- Thread size
- M40
- product range
- Thorsman Glands
- product type
- Cable gland
- colour
- Grey (RAL 7035)
- quantity per package
- Set of 5
- Material
- PA6
- ISO thread
- M40
- Cable outer diameter
- 19…28 mm
- IP-Class
- IP68
- operating temperature
- -30…80 °C permanently; -30…150 °C intermittently
- Warranty (in months)
- 18
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 40
- Thread length
- 9 mm
- Wrench width
- 40 mm
- Suitable for cable diameter
- 19–28 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- Yes
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Membrane
- Separable screw gland
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480077234
- SAP 1000488748
- Code 8803816
Product Documentation
