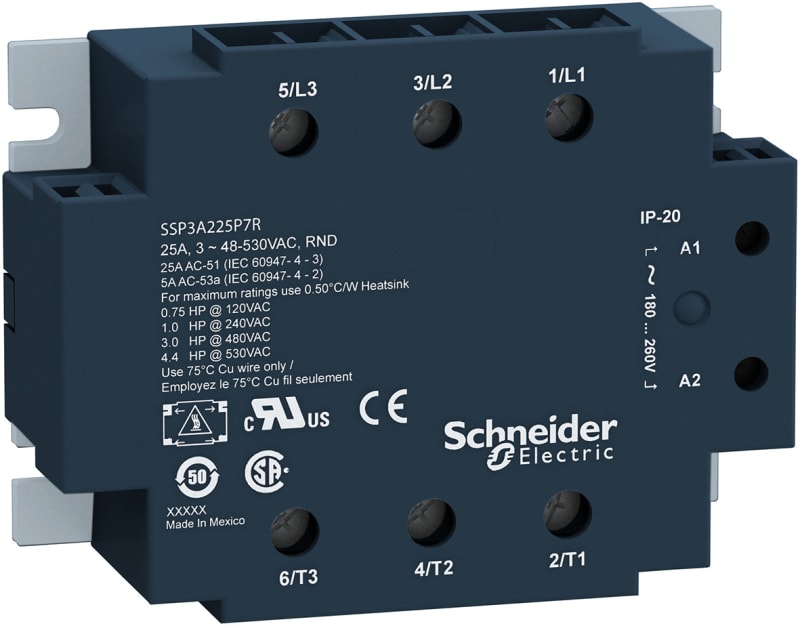

Schneider Electric Solid state panel mount relay, 50 A, zero voltage switching, thermal pad, input 4…32 V DC, output 48…530 V AC SSP3A250BDT

Schneider Electric SSP3A250BDT SSR 3f 530VAC 50A 24V.

Manufacturer part number (MPN)

SSP3A250BDT EAN / GTIN: 3606480580024 Sales unit: pcs Package quantity: 27 pcs Voltage: 24 V Rated current: 50 A Range of product: Harmony Solid State Relays Provided accessory: Thermal pad Product or component type: Panel mount relay Device short name: SSP Mounting support: Panel Number of phases: 3 phases [In] rated current: 50 A Solid state output type: Zero voltage switching Output switching mode: Zero voltage switching test button: Without test button [Uc] control circuit voltage: 4...32 V DC minimum switching voltage: 4 V DC turn-on Maximum switching voltage: 1 V DC turn-off Response time: 8.33 ms (turn-on); 8.33 ms (turn-off) Input current: 15…35 mA Output voltage: 42...660 V AC Load current: 0.4…50 A Transient overvoltage: 1200 V Surge current: 715 A for 20 ms; 750 A for 16.6 ms Maximum I²t for fusing: 2520 A².s for 10 ms at 50 Hz; 2320 A².s for 8.3 ms at 60 Hz Co-ordination type: TVS Maximum leakage current: 3 mA off-state Maximum voltage drop: <1.6 V on-state DV/dt: 500 V/µs off-state at maximum voltage Power factor: 0.5 (with maximum load) Motor controller rating: 1.5 hp 40 °C 120 V AC; 3 hp 40 °C 240 V AC; 7.5 hp 40 °C 480 V AC; 10 hp 40 °C 600 V AC Motor power kW: 1.1 kW at 40 °C 120 V AC; 2.2 kW at 40 °C 240 V AC; 5.5 kW at 40 °C 480 V AC; 7.5 kW at 40 °C 600 V AC Insulation resistance: >= 1000 MOhm at 500 V DC Maximum capacitance: 8 pF for input/output Dielectric strength: 4 kV AC for input/output; 4 kV AC for input or output to case [Uimp] rated impulse withstand voltage: 0.8 kV for input to case; 6 kV for input/output circuit; 6 kV for input/output to case Tightening torque: 1.2 N.m for input; 2.5 N.m for output Connections - terminals: Screw terminals: 1 x 0.2...1 x 2.5 mm², (24 AWG...14 AWG) for input; Screw terminals: 1 x 1.5...1 x 10 mm², (16 AWG...8 AWG) for output Thermal resistance: 0.15 °C/W LED indicator: LED, green for input IP degree of protection: IP20 Electromagnetic compatibility: Electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2; Electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2; Conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6; Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3; Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5; Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5; Surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5; Electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4; Immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11; Immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11; Immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11; Immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11; Electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4; Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3; Radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1; Conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1 Product weight: 0.37 kg Width: 104 mm Height: 74.6 mm Depth: 41 mm Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Ambient air temperature for operation: -40…80 °C Ambient air temperature for storage: -40…125 °C Pollution degree: 2 Overvoltage category: III Product certifications: CE; CSA; EAC; UL; UKCA Marking: CE Standards: IEC/EN 62314; IEC/EN 60947-4-2; IEC/EN 60947-4-3; UL 60947-4-2; C22.2 No. 14 Country of origin: MT Warranty (in months): 18 Degree of protection (IP): IP20 Operating voltage AC 50 Hz: 42–660 V Operating voltage AC 60 Hz: 42–660 V Rated control supply voltage AC 50 Hz: 48–530 V Rated control supply voltage AC 60 Hz: 48–530 V Rated control supply voltage DC: 4–32 V Voltage type for actuating: DC Operating voltage: 48–530 V Rated operation current Ie at AC-1: 50 A Rated operation current Ie at AC-3: 50 A Rated operation current Ie at AC-51: 50 A Rated operation current Ie at AC-53a: 10 A Rated operation current Ie at AC-53b: 50 A Suitable for distribution board: No Switching at zero-crossing: Yes

HS Code

8536.49

• EAN 3606480580024
• SAP 1000665110
• Code 8512685
