Schneider Electric PanelSeT Lifting Bar 1600 mm Steel Set of 2
Pricing
Request a quote
We reply within 24 hours
Product Description

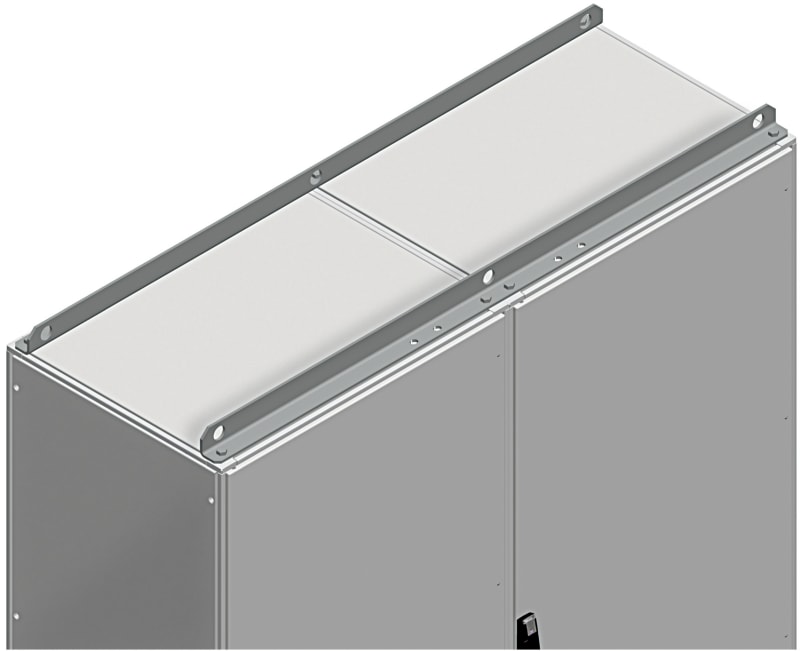

Schneider Electric NSYSFTB16 is a set of two zinc-coated steel lifting bars for PanelSeT SFN, SF, SFHD and SFM enclosures. Nominal length 1600 mm (real 1595 mm), diameter 32 mm, with M12 fixings for direct mounting in the axis of the uprights. Permanent permissible load is 2000 kg per set.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFTB16
- EAN / GTIN
- 3606485131832
- Sales unit
- pcs
- Area
- PanelSeT
- category
- Lifting accessory
- Product or component type
- Lifting bar
- Application
- Multi-purpose
- Mounting location
- Enclosure top
- Mounting support
- Directly in the axis of the uprights
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SFHD; PanelSeT PanelSeT SFM
- Device composition
- 2 lifting bars; fixing elements
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - screw type M12
- Permanent permissible load
- 2000 kg
- Length
- Nominal: 1600 mm; Real: 1595 mm
- Height
- 60 mm
- Depth
- 60 mm
- Diameter
- 32 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.500 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 177.000 cm
- Package 1 Weight
- 27.100 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 44.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 572.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Transport bracket
- Width
- 1600 mm
- Load bearing capacity
- 2000 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131832
- SAP 1000317597
- Code 81015197
