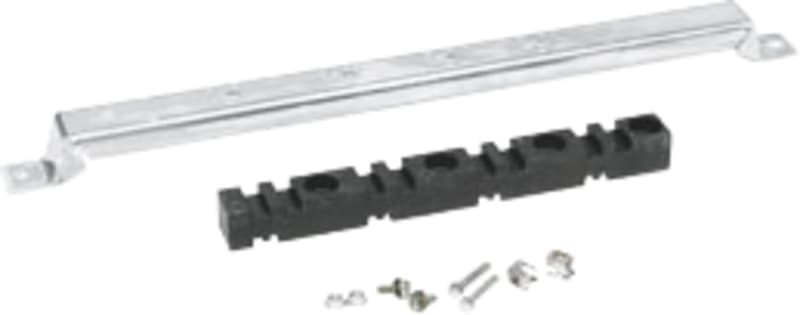

Schneider Electric Setting support 500 mm NSYAS500
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAS500 Anchoring Inntakskinne L=500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAS500
- EAN / GTIN
- 3606480062858
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Support accessory
- Product or component type
- Bar support
- Anwendung
- Prisma application; Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom
- Busbar position
- Vertical
- Range compatibility
- PanelSeT PanelSeT SF; Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy LGYE lateral busbar; Linergy BS lateral busbar
- Device composition
- fixing elements; 1 insulating bar support; 1 metal support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element - bottom frame of enclosure location
- Height
- 66 mm
- Width
- Fixing centers: 450 mm; Nominal: 500 mm
- Depth
- 39 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 1.148 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480062858
- SAP 1000088907
- Code 8881169
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13 AP7820B
Schneider Electric
KAEDRA 1X12MOD, 3 openings 90X100
13180
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 12V DC low consumption coil, snap-in terminals LC1D18AJL
Schneider Electric
Schneider Electric Thorsman Glands - cable gland - grey - M40 - diameter 19 to 28 ISM71506
Schneider Electric
ICV40N RCBO+AFD 1PN 13A B comm..
A9TDEC613
Schneider Electric
Heat detector AP200 52051RE
FFS06710612
Schneider Electric

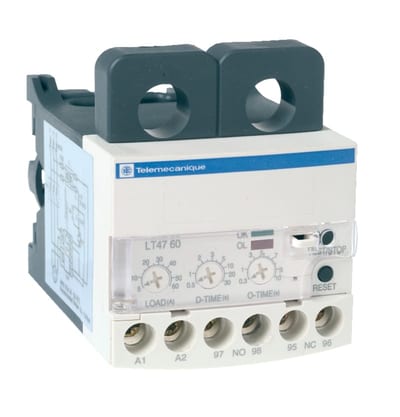

Schneider Electric TeSys LT47 electronic over current relays-automatic- 5...60 A - 200...240 V AC LT4760M7A
