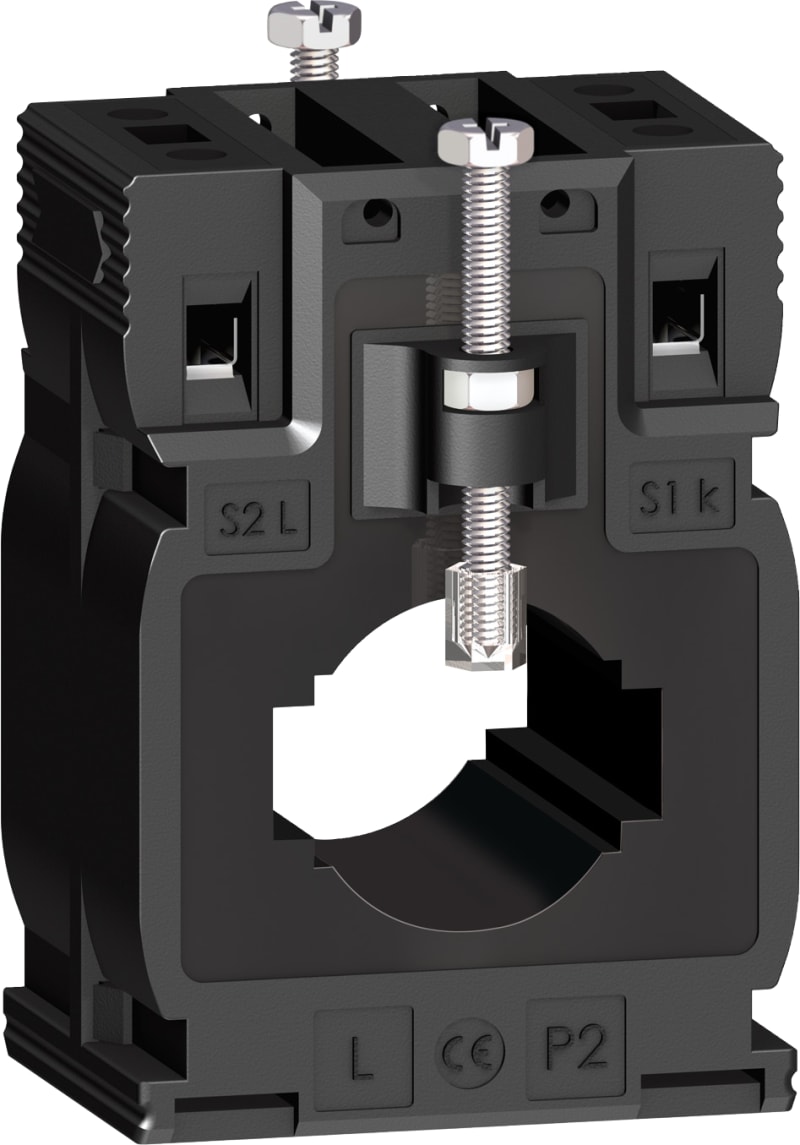

Schneider Electric current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10X32 15X25 METSECT5MA030

Schneider Electric METSECT5MA030 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MA030

EAN / GTIN

3606480618789

Sales unit

pcs

Diameter

27 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 8 VA; Class 1 at 10 VA

[In] rated current

300 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

300/5

[Ith] conventional free air thermal current

18 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Insulated locking screw; By screws; Clip-on

Mounting support

DIN rail; Busbar; Mounting plate

Width

Outside: 56 mm

Height

Outside: 80 mm

Depth

Frame : 43 mm; Total : 63 mm

Product weight

0.303 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

27 mm

Opening of bars

32.5 x 10.5; 25.5 x 15.5

Sealing

Without

Standards

VDE 0414; IEC 61869-2

Product certifications

EAC; CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

36

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

300 A

Rated secondary current

5 A

Rated secondary apparent power

10 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

15 mm

Width opening

25 mm

Opening diameter

27 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
