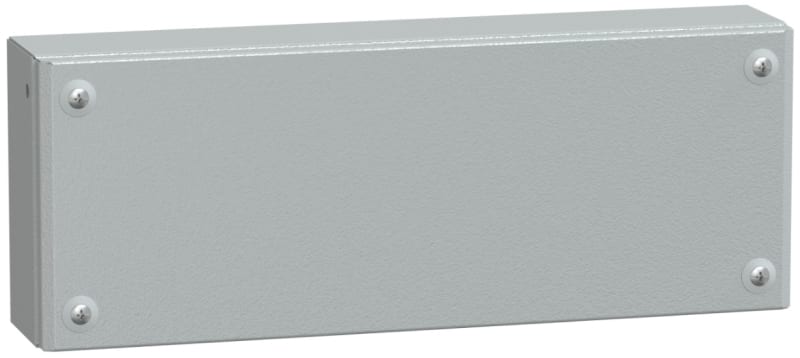

Schneider Electric Metal industrial box plain door H150XW400XD80 IP66 IK10 RAL 7035 NSYSBM15408
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSBM15408 Steel enclosure 150x400x80.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBM15408
- EAN / GTIN
- 3606480520044
- Sales unit
- pcs
- Package quantity
- 216 pcs
- Dimensions
- 150×400×80
- Range
- PanelSeT
- Product name
- PanelSeT SBM
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBM
- enclosure type
- Flat face box
- Enclosure nominal height
- 150 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 4 cover screw; 1 cover; 1 body
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Sheet steel
- Surface finish
- Polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV-GL; UL; BV
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 2.15 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 108
- Country of origin
- FR
- Warranty (in months)
- 18
- Shape
- Rectangular
- RAL-number
- 7035
- Connection type
- Screwed terminal
- Length
- 150 mm
- Width
- 400 mm
- Depth
- 80 mm
- Material plate thickness cabinet
- 1.2 mm
- Mounting method
- Surface mounted/recessed mounted
- Extension possible
- No
- Halogen free
- Yes
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- Yes
- Circuit integrity
- None
- Impact strength
- IK10
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480520044
- SAP 1000499564
- Code 8994064
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 230…240V ZB4BV4
Schneider Electric
Cabinet 1200X600X300 (NSYS3D12630)
Schneider Electric
Schneider Electric Harmony, Solid state relay, 45 A, DIN rail mount, zero voltage switching, input 90…280 V AC/DC, output 48...600 V AC SSD1A345M7C2
Schneider Electric
Label Holder w/Labels and Cover 12 Pcs 25x85 G/P
LVS08917
Schneider Electric

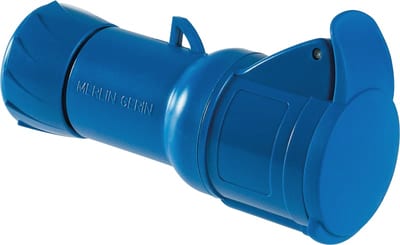

Schneider Electric Wander socket outlet, Mureva PK, Fast connection, 16A, 2P+E, 220V, IP44 PKY16M423
Schneider Electric

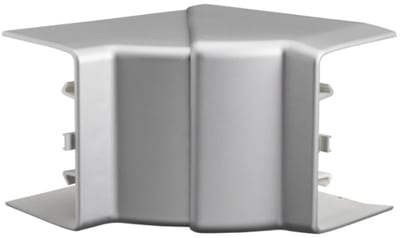

Schneider Electric OptiLine 45 - internal corner - PC/ABS - aluminium metallic ISM10351
Schneider Electric

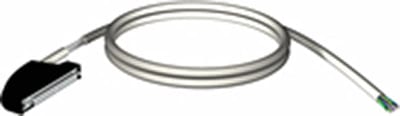

M340 Cable FCN 20 Conductor SK, 5M
BMXFCW501S
Schneider Electric

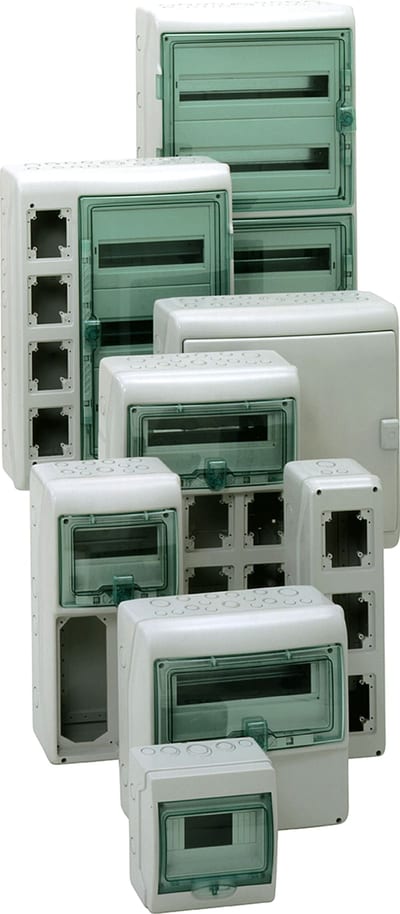

Kaedra app.cabinet 610X340X160MM
