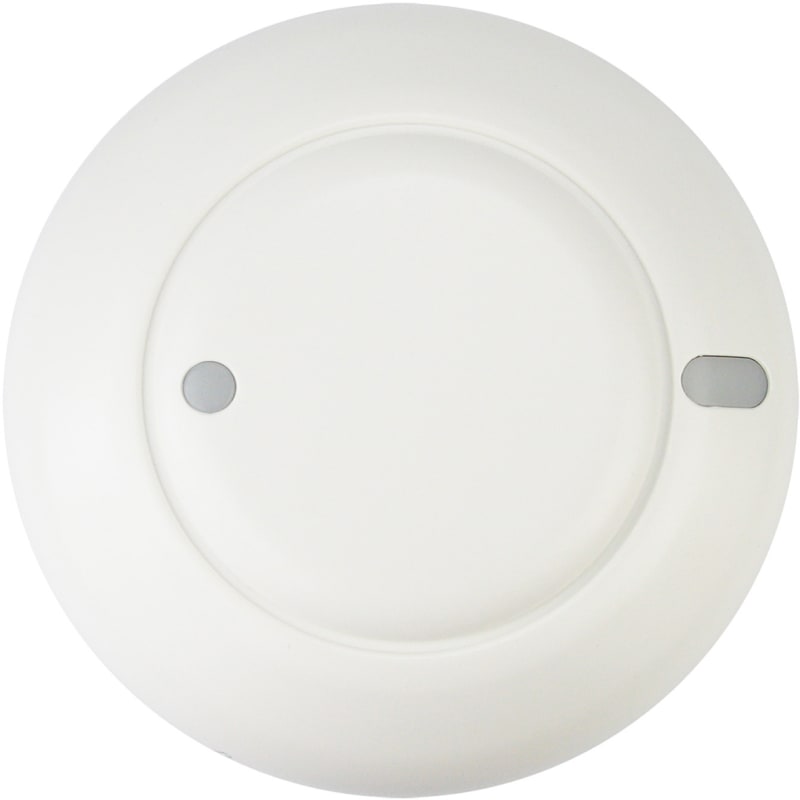

Schneider Electric ARGUS Presence HF High Bay - 2CH CCT551023
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT551023 ARGUS motion detector HF High Bay-2 channel.
Technical Specifications
- Manufacturer part number (MPN)
- CCT551023
- EAN / GTIN
- 3606480995507
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range of product
- ARGUS standard movement detector
- Range
- ARGUS
- Product or component type
- Presence detector
- Load type
- LED lighting: : 100 W; Incandescent lamps: : 2000 W - 230 V; Halogen lamp: : 1000 W - 230 V; Fluorescent tube: 900 VA; Compact fluorescent lamp: : 100 W; Motor: : 100 W; Relay: : 5 A - 250 V; Halogen lamp with standard electronic transformer: 1000 VA; Halogen lamp with standard ferromagnetic transformer: 1000 VA
- Colour tint
- White
- Network frequency
- 50/60 Hz
- Input function
- Switch
- Output voltage
- 220...250 V
- Output current
- 10 A
- Number of channels
- 2
- Control type
- Movement sensor
- Function available
- Switching, toggling, dimming
- Light intensity adjustment
- 10…2000 lux
- Horizontal detection angle
- 360 °
- detection range
- Radius: 7000 mm
- Technology type
- High frequency
- Mounting height
- 2.5 m
- IP degree of protection
- IP40; IP52
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 144
- Country of origin
- CN
- Warranty (in months)
- 18
- Nominal voltage
- 230 V
- Colour
- White
- Width
- 107 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 107 mm
- Depth
- 50 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- Yes
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 17 mm
- Frequency
- 50–60 Hz
- With remote control
- No
- Diameter
- 107 mm
- Built-in width
- 52 mm
- Built-in diameter
- 52 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Max. reach frontally
- 7 m
- Max. reach sideways
- 7 m
- Max. switching power
- 2000 W
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 10–2000 lx
- Suitable for C-load
- No
- Diameter reach on floor
- 14 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 9003
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- Built-in length
- 52 mm
- With connection cable
- No
- Degree of protection (IP)
- IP40
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 10 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 5 m
- Number of switching zones
- 2
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. depth of built-in installation box
- 46 mm
- Max. presence range
- 150 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- High frequency
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480995507
- SAP 1000797930
- Code 81425133
Product Documentation
