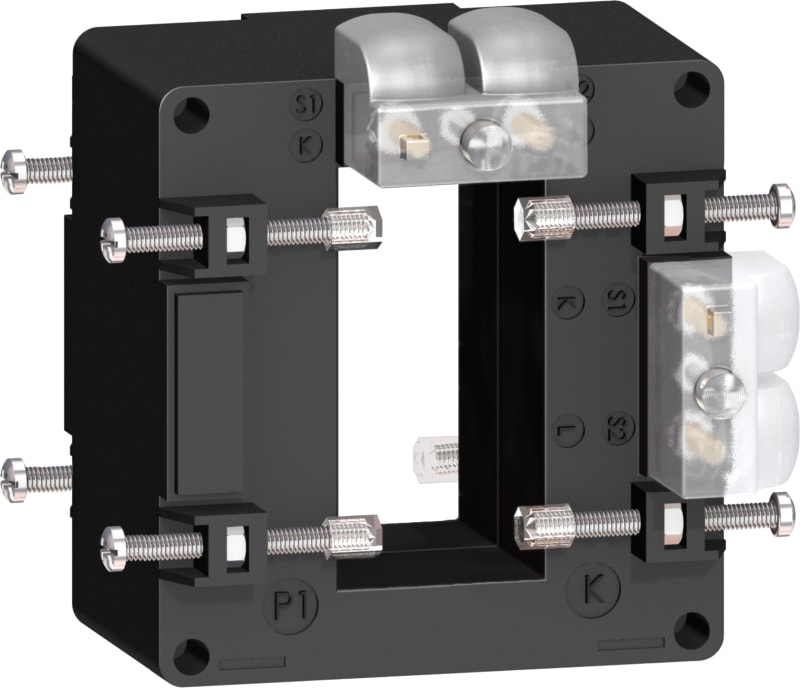

Current Transformer 1250/5 RAIL 32X65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric METSECT5DA125 CT Current transformers with 5 A secondary current used together with an ammeter.
Technical Specifications
- Manufacturer part number (MPN)
- METSECT5DA125
- EAN / GTIN
- 3303431123698
- Sales unit
- pcs
- Range
- PowerLogic
- Product or component type
- Current transformer
- Product name
- CT
- Secondary current
- 5 A
- Accuracy class
- Class 0.5 at 15 VA; Class 1 at 20 VA
- [In] rated current
- 1250 A
- Current transformer type
- Tropicalised for busbar; Solid core
- Current transformer ratio
- 1250/5
- [Ith] conventional free air thermal current
- 60 kA
- Dynamic withstand current
- 2.5 Ith
- Maximum safety factor
- 5
- [Ue] rated operational voltage
- < 720 V AC 50/60 Hz
- [Ui] rated insulation voltage
- 3 kV
- mounting mode
- Insulated locking screw
- Mounting support
- Busbar
- Width
- Outside: 90 mm; Inner: 32 mm
- Height
- Outside: 94 mm; Inner: 65 mm
- Depth
- Frame : 40 mm; Total : 90 mm
- Product weight
- 0.636 kg
- [Uimp] rated impulse withstand voltage
- 3 kV
- Electrical insulation class
- Class B
- Opening of bars
- 65 x 32
- Sealing
- With
- Standards
- IEC 61869-2; VDE 0414
- Product certifications
- EAC; CE
- IP degree of protection
- IP20
- Relative humidity
- 0…95 %
- Ambient air temperature for operation
- -25…50 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.400 cm
- Package 1 Width
- 9.500 cm
- Package 1 Length
- 10.000 cm
- Package 1 Weight
- 611.200 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 10.179 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Through-feed current converter
- Rated primary current
- 1250 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 20 VA
- Overcurrent limiting factor
- FS 5
- Calibrated
- No
- With contact protection
- No
- Height opening
- 65 mm
- Width opening
- 32 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Screw connection
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3303431123698
- SAP 1000632716
- Code 8146981
Product Documentation
More from Schneider Electric
Schneider Electric
Sign 8X27, FOR ZBZ-32/34 (ZBY02178)
Schneider Electric

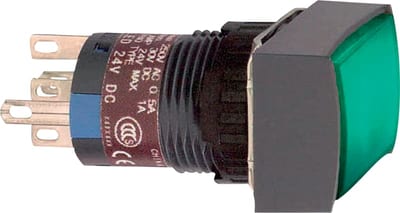

Schneider Electric Illuminated monolithic push button, Harmony XB6E, rectangle green flush, 16mm, spring return, 24V DC, 1CO XB6EDW3B1P
Schneider Electric

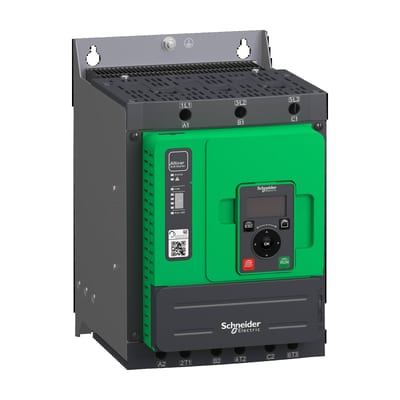

Schneider Electric Soft starter, Altistart 480, 75A, 208 to 690V AC, control supply 110 to 230V AC ATS480D75Y
Schneider Electric

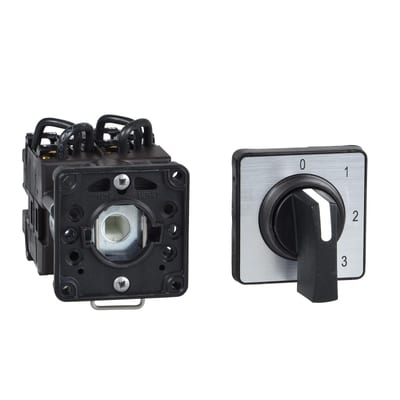

OF/ON Switch 6-Pole(45G ) Ø22
K1F006ACH
Schneider Electric

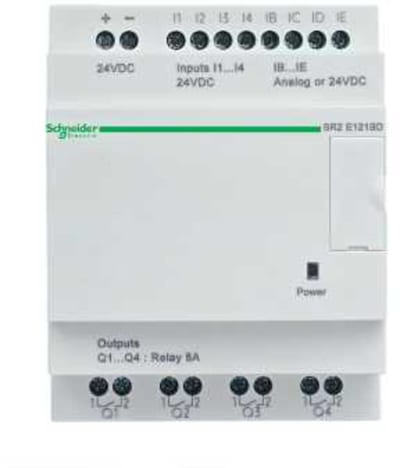

Schneider Electric compact smart relay Zelio Logic - 12 I O - 24 V AC - clock - no display SR2E121B
Schneider Electric

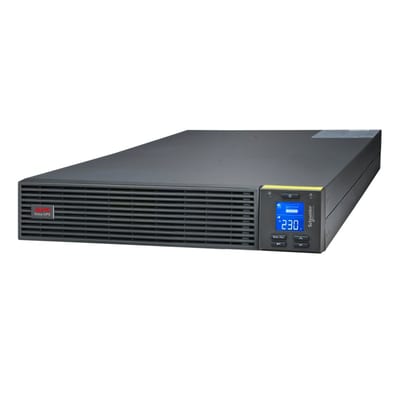

APC Easy UPS SRV RM 10000VA 230 (SRVPM10KRIL)
Schneider Electric

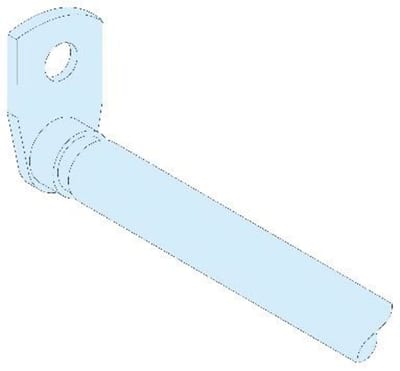

Schneider Electric Set of 4 flexible connections, 200A, to connect Linergy BW insulated busbar to Linergy FM device feeder LVS04021
Schneider Electric

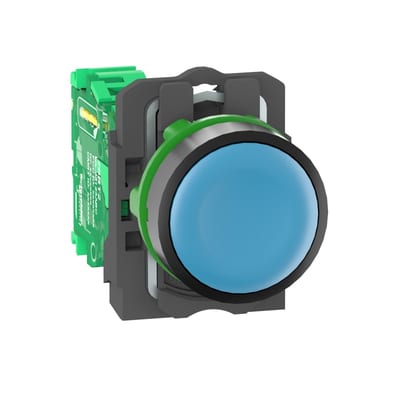

Schneider Electric ZB5R transmitter complete, blue cap ZB5RTA6
