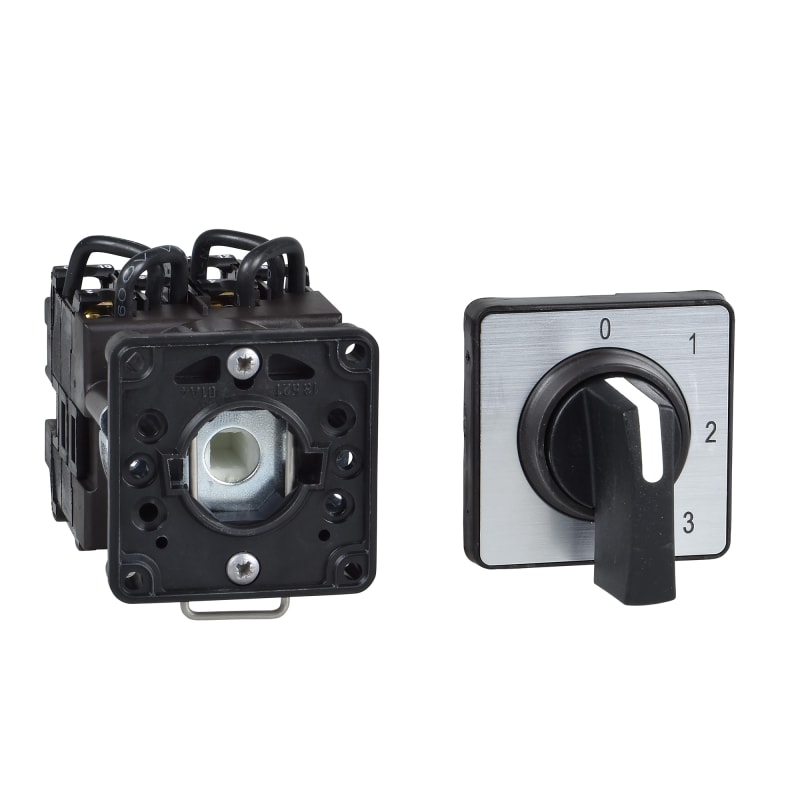

OF/ON Switch 6-Pole(45G ) Ø22

Schneider Electric K1F006ACH Cam Switch Of/On 6-pole 45º bottom.

Manufacturer part number (MPN)

K1F006ACH

EAN / GTIN

3389110079395

HS code

8536.90

Sales unit

pcs

Number of poles

6

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K1

[Ith] conventional free air thermal current

12 A

Mounting location

Front

fixing mode

Ø 22 mm hole

Cam switch head type

With front plate 45 x 45 mm

Type of operator

Black handle, length = 35 mm

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 0 - 1 black marking

Cam switch function

Switch

Return

Without

Off position

With Off position

Poles description

6P

Switching positions

Right: 0° - 45°

IP degree of protection

IP65 conforming to IEC 60529

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

10 A

Rated operational power in W

10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3; 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3; 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3; 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3; 600 W AC-3, 230 V 1 phase conforming to IEC 947-3; 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3

[Ie] rated operational current AC

1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3; 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3; 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3; 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3; 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3; 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3; 1 A at 500 V AC-15 conforming to IEC 947-5-1; 2 A at 400 V AC-15 conforming to IEC 947-5-1; 3 A at 230 V AC-15 conforming to IEC 947-5-1

Electrical durability

1000000 cycles AC-15; 1000000 cycles AC-21; 500000 cycles AC-23; 500000 cycles AC-3

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

16 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

45 mm

CAD overall height

50 mm

CAD overall depth

69 mm

Product weight

0.188 kg

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013; GB/T 14048.5 for control circuit; GB/T 14048.3 for power circuit

Product certifications

CSA 240 V 3 hp 3 phases 2 -pole(s); UL 240 V 0.33 hp 1 phase 2 -pole(s); CSA 240 V 1 hp 1 phase; UL 240 V 1 hp 3 phases; CCC

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Overvoltage category

Class II conforming to IEC 536; Class II conforming to NF C 20-030

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110079395
• SAP 1200502628
• Code 82626512
