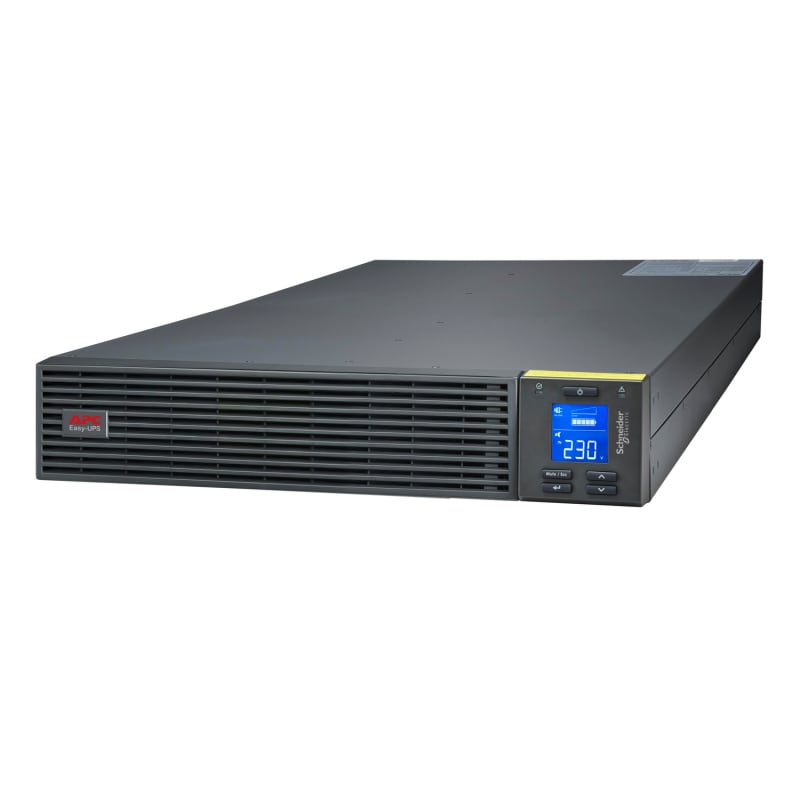

APC Easy UPS SRV RM 10000VA 230 (SRVPM10KRIL)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRVPM10KRIL APC Easy UPS On-Line, 10kVA, Rack 2U, 230V, 3-led. outlet, smartkortspor, u/ battery, u/ rail set.
Technical Specifications
- Manufacturer part number (MPN)
- SRVPM10KRIL
- EAN / GTIN
- 0731304343837
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V 60 % load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 94 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid external sold separately
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Number of rack unit
- 2U
- Color
- Black (RAL 7010)
- Height
- 86.5 mm
- Width
- 438 mm
- Depth
- 615 mm
- Product weight
- 16 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted with kit
- USB compatible
- Yes
- Mounting position
- Horizontal
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…60 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 58 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 240 V
- Extendable runtime
- 1
- Included battery module
- 0
- Empty battery slot
- 0
- Battery charging power
- 1170 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24 cm
- Package 1 Width
- 76 cm
- Package 1 Length
- 60 cm
- Package 1 Weight
- 20 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304343837
- SAP 1200960914
- Code 84257187
