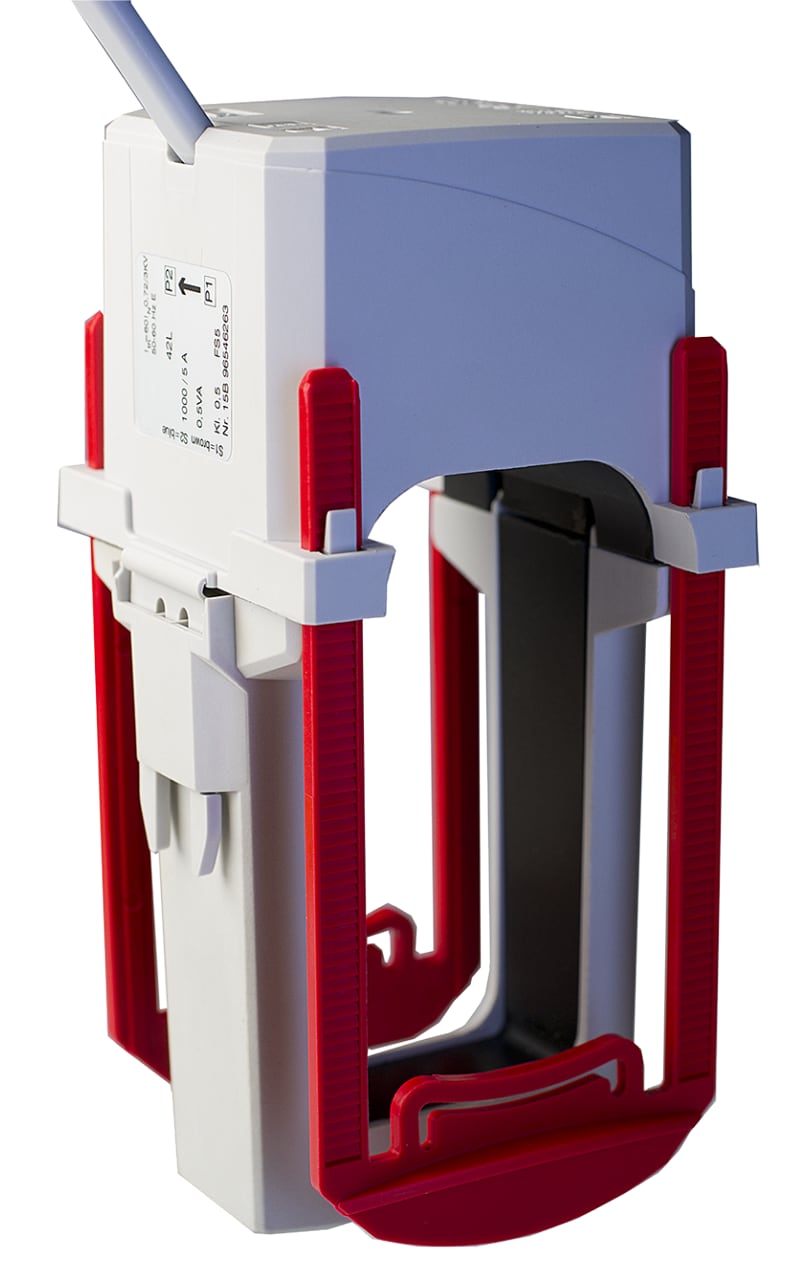

Divisible current transformer HM040 400/5A

Schneider Electric METSECT5HM040 Split Core CT Cable 400/5A 5VA cl.1 for cable Ø=42,4+85mm.

Manufacturer part number (MPN)

METSECT5HM040

EAN / GTIN

3606489608415

HS code

8544.42

Sales unit

pcs

Package quantity

24 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 1 at 5 VA

[In] rated current

400 A

Current transformer type

Standard for cable; Split core

Current transformer ratio

400/5

[Ith] conventional free air thermal current

480 A

Maximum safety factor

5

Permissible current

24000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Clip-on

Width

Outside: 67 mm; Inner: 42.4 mm

Height

Outside: 139 mm; Inner: 85 mm

Depth

69 mm

Diameter

42.4 mm inner:

Electrical insulation class

Class E

Cable outer diameter

42.4 mm

Connections - terminals

Cable 2 cable(s) 0.5…1.5 mm² 0.5 m

Standards

DIN EN 60044-1; DIN EN 61869-1; DIN EN 61869-2; VDE 0414

Ambient air temperature for operation

-5…50 °C

Ambient air temperature for storage

-25…70 °C

Warranty (in months)

18

HS Code

8544.42

• EAN 3606489608415
• SAP 1200361140
• Code 82368194
