Push-button, flush, green, raised (ZB4FH3)

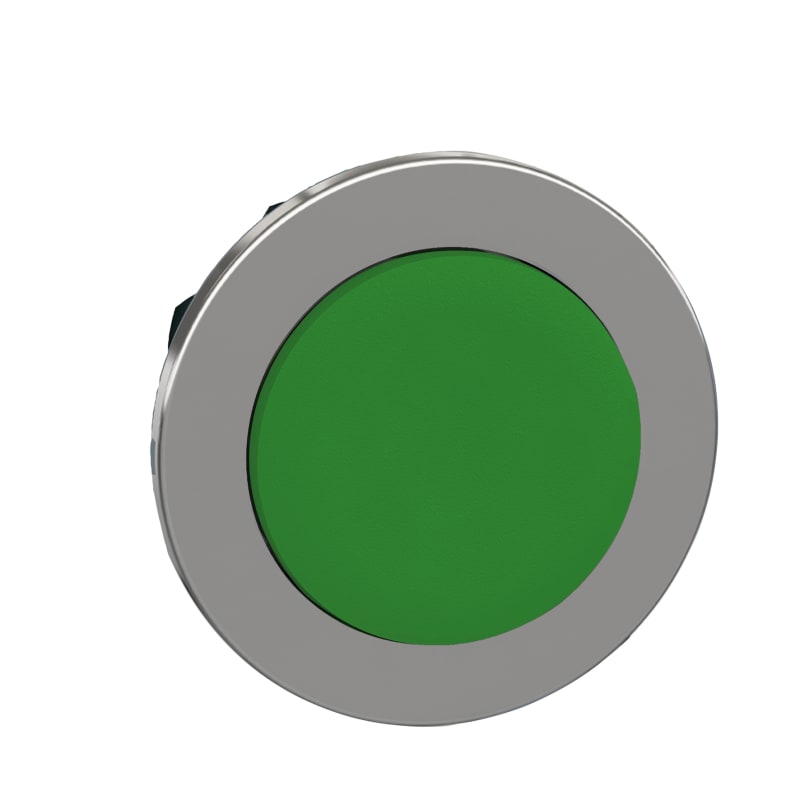

Schneider Electric ZB4FH3 Push-Button Head flush with pressure/pressure and raised push surface in green colour.

Manufacturer part number (MPN)

ZB4FH3

EAN / GTIN

3606489581701

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4F

Bezel material

Chromium plated metal

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Head type

Built-in-flush

Shape of signaling unit head

Round

Type of operator

push-push

Operator profile

Green projecting, unmarked

CAD overall width

36.6 mm

CAD overall height

36.6 mm

CAD overall depth

33 mm

Mechanical durability

500000 cycles

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C9 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; EN/IEC 60947-5-1; EN/IEC 60947-5-4; UL 508; EN/IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1

Product certifications

UL listed; CSA; CCC; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.3 cm

Package 1 Width

5.2 cm

Package 1 Length

5.5 cm

Package 1 Weight

58.0 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

30.5 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
