Selector Switch.LONG GREP.BLACK F/KZ127
Pricing
Request a quote
We reply within 24 hours
Product Description

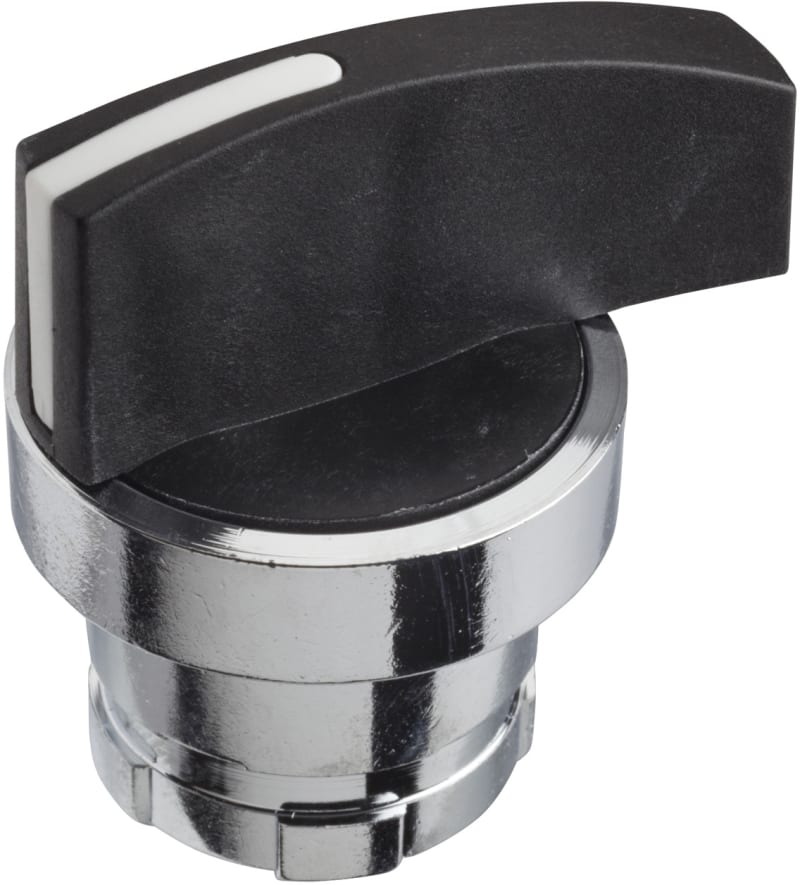

Schneider Electric KAXZ1C12 Selector switch.long grip.black f/KZ127.
Technical Specifications
- Manufacturer part number (MPN)
- KAXZ1C12
- EAN / GTIN
- 3389110980769
- Sales unit
- pcs
- Package quantity
- 90 pcs
- Range of product
- Harmony Series K
- Product or component type
- Cam switch operating head
- Component name
- KAX
- Product compatibility
- Front mounting bodies 12 and 20 A by Ø 22 mm hole
- Cam switch head type
- With bezel Ø 28.5 mm, metal
- Type of operator
- Black long handle
- Rotary handle padlocking
- Without
- Presentation of legend
- With matt black legend
- Mechanical durability
- 1000000 cycles
- CAD overall width
- 29 mm
- CAD overall height
- 34 mm
- CAD overall depth
- 25 mm
- Product weight
- 0.04 kg
- Compatibility code
- KAX
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Shock resistance
- 30 gn conforming to IEC 68-2-27
- Vibration resistance
- 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
- IP degree of protection
- IP65 conforming to IEC 529; IP65 conforming to NF C 20-010
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 90
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP65/IP67
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour control element
- Black
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110980769
- SAP 1000010905
- Code 8479837
Product Documentation
More from Schneider Electric
Schneider Electric
Selector switch with light 3 fixed positionsyellow (ZB5AK1383)
Schneider Electric
Push-button, flush, green, raised (ZB4FH3)
Schneider Electric
Schneider Electric PanelSeT SM standard coupling kit -IP55- Used to join enclosures by the side part NSYSMBK
Schneider Electric
Schneider Electric VW3A1102 Altivar Door-Mount Display Kit IP54
Schneider Electric
Schneider Electric Terminal extensions, ComPacT NSX 100/160/250, straight, set of 4 parts LV429264
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 115V AC 50/60Hz coil, snap-in terminals LC1D25AFE7
Schneider Electric

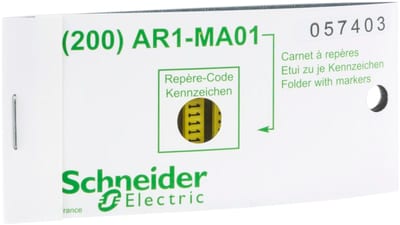

Schneider Electric Marker, Linergy TR cable ends, yellow, clipin type, character 7, Numeric, set of 200 AR1MA017
Schneider Electric

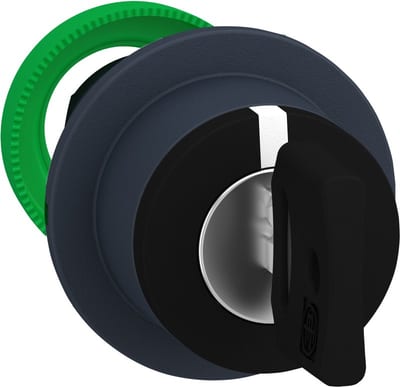

Schneider Electric flush mounted selector switch head key 8D1 3 pos return right to center ZB5FG08D
