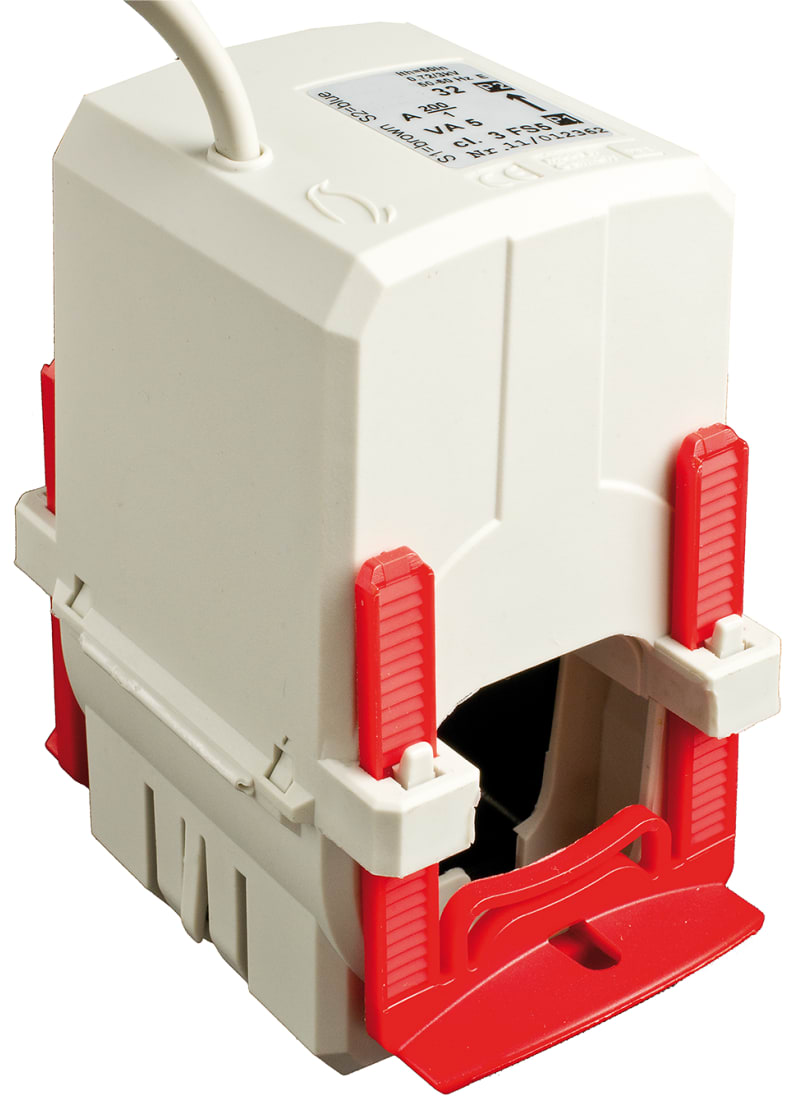

Divisible current transformer HG030 300/5A

Schneider Electric METSECT5HG030 Split Core CT Cable 300/5A 2.5VA cl.1 for cable Ø=32,5mm.

Manufacturer part number (MPN)

METSECT5HG030

EAN / GTIN

3606489608200

HS code

8544.42

Sales unit

pcs

Package quantity

20 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 1 at 2.5 VA

[In] rated current

300 A

Current transformer type

Standard for cable; Split core

Current transformer ratio

300/5

[Ith] conventional free air thermal current

360 A

Maximum safety factor

5

Permissible current

18000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Clip-on

Width

Outside: 59.2 mm

Height

Outside: 96.4 mm

Depth

89.2 mm

Diameter

32.5 mm inner:

Electrical insulation class

Class E

Cable outer diameter

32.5 mm

Connections - terminals

Cable 2 cable(s) 0.5…1.5 mm² 0.5 m

Standards

DIN EN 60044-1; DIN EN 61869-1; DIN EN 61869-2; VDE 0414

Ambient air temperature for operation

-5…50 °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

HS Code

8544.42

• EAN 3606489608200
• SAP 1200361108
• Code 82368162
